Strand Lighting MX - Audio GO Triggering

Issue 2

MX SUPPLEMENT
AUDIO 5 -PIN DIN
IN
2 SignWGround
3 Left
Chance
4
Na Connect .
5 RipM Chanrrol

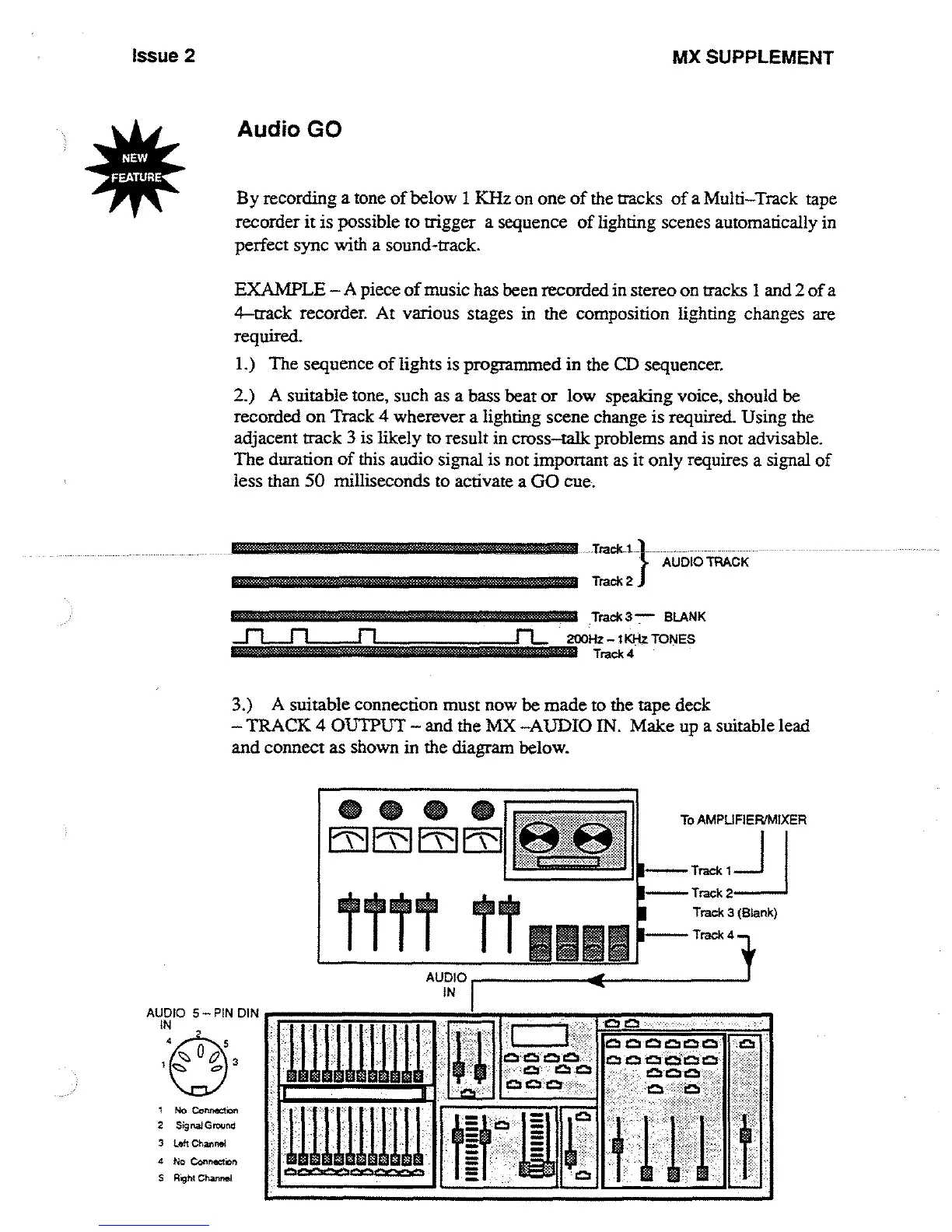

Audio
GO
By recording a tone
of
below
1 KHz on one of the tracks of
a
Multi-Track tape
recorder
it is
possible
to
trigger
a sequence of lighting scenes automatically in
perfect sync
with
a sound-track .
EXAMPLE -A piece of music
has been recorded in stereo on tracks 1 and 2 of a
4-track
recorder
.
At various stages in the composition lighting changes are
required .
1 .) The sequence of lights
is programmed
in
the CD sequencer
.
2 .) A suitable tone,
such as a bass beat or low speaking voice, should be
recorded on Track 4 wherever a lighting scene change is required Using the
adjacent track
3
is likely to result in cross-talk problems and is not advisable .
The
duration of this audio
signal is not important as it only requires a signal of
less than 50 milliseconds to activate a GO cue .
Trick I
}
AUDIO TRACK
3 .)

A
suitable connection must now be made to the tape deck
-TRACK 4 OUTPUT - and the MX AUDIO IN . Make
up
a suitable lead
and connect as shown in the diagram below .
ttrr
TT
AUDIO I
IN
Track 2
Track 3 " BLANK
200Hz-SKHz TONES
i

Track 4
E
To AMPLIFIERIMIXER
I- Track
I

I
I- Track 2 --
Track 3 (Blank)
Track 4 -,
Ch &Z CM 66 4b
