Wallrack User Manual
RCD Option
Wallrack is designed to house two 3 phase RCD (optional) if required.
This option only applies when using a 3 phase supply to the dimmer rack
it cannot be used on single phase racks.

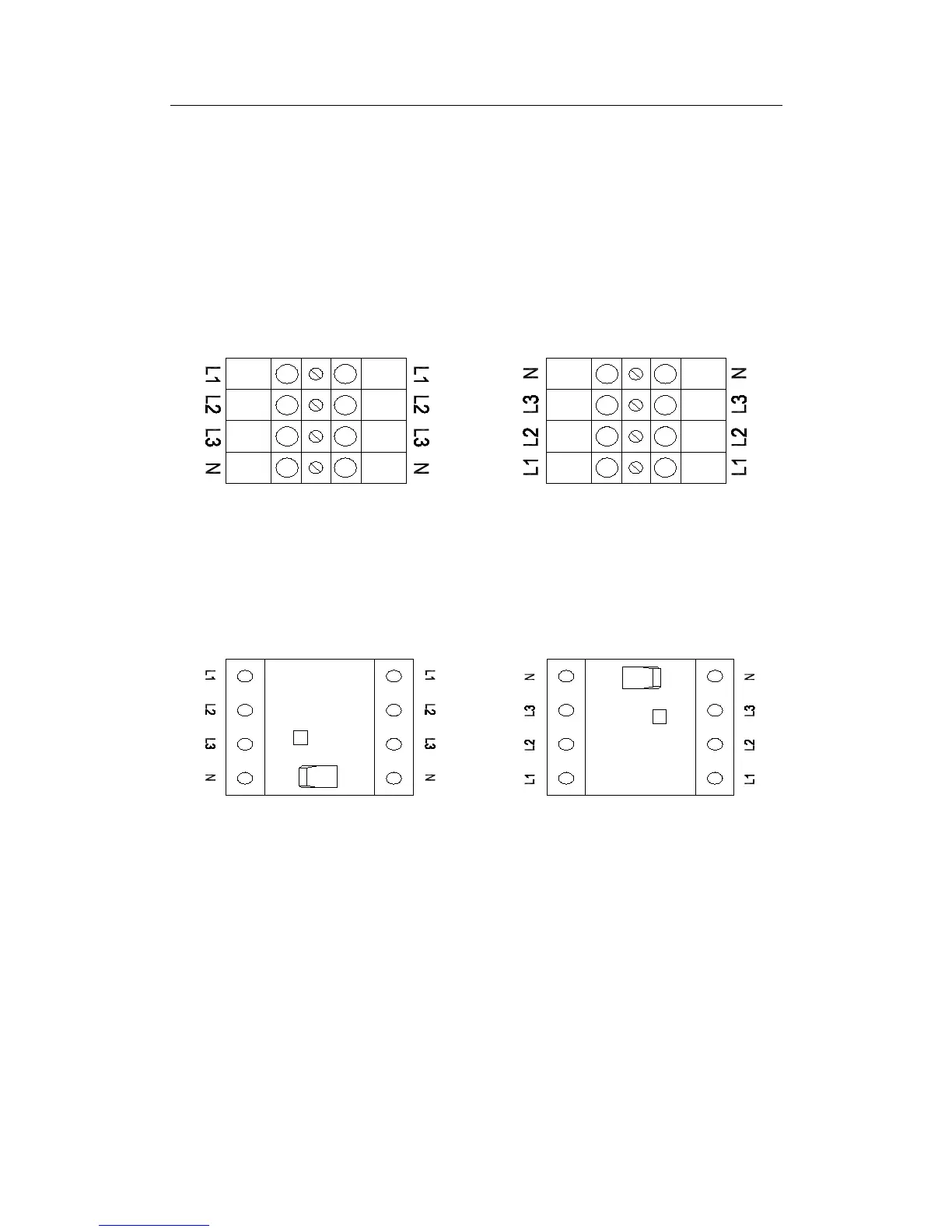

To install the RCD, simply remove the terminals as shown:
Wallrack 24 x 2.5kW
And replace with the RCDs. Reconnect the power cables as shown below.
User Manual v1.2 March 2006 10
