Wallrack User Manual

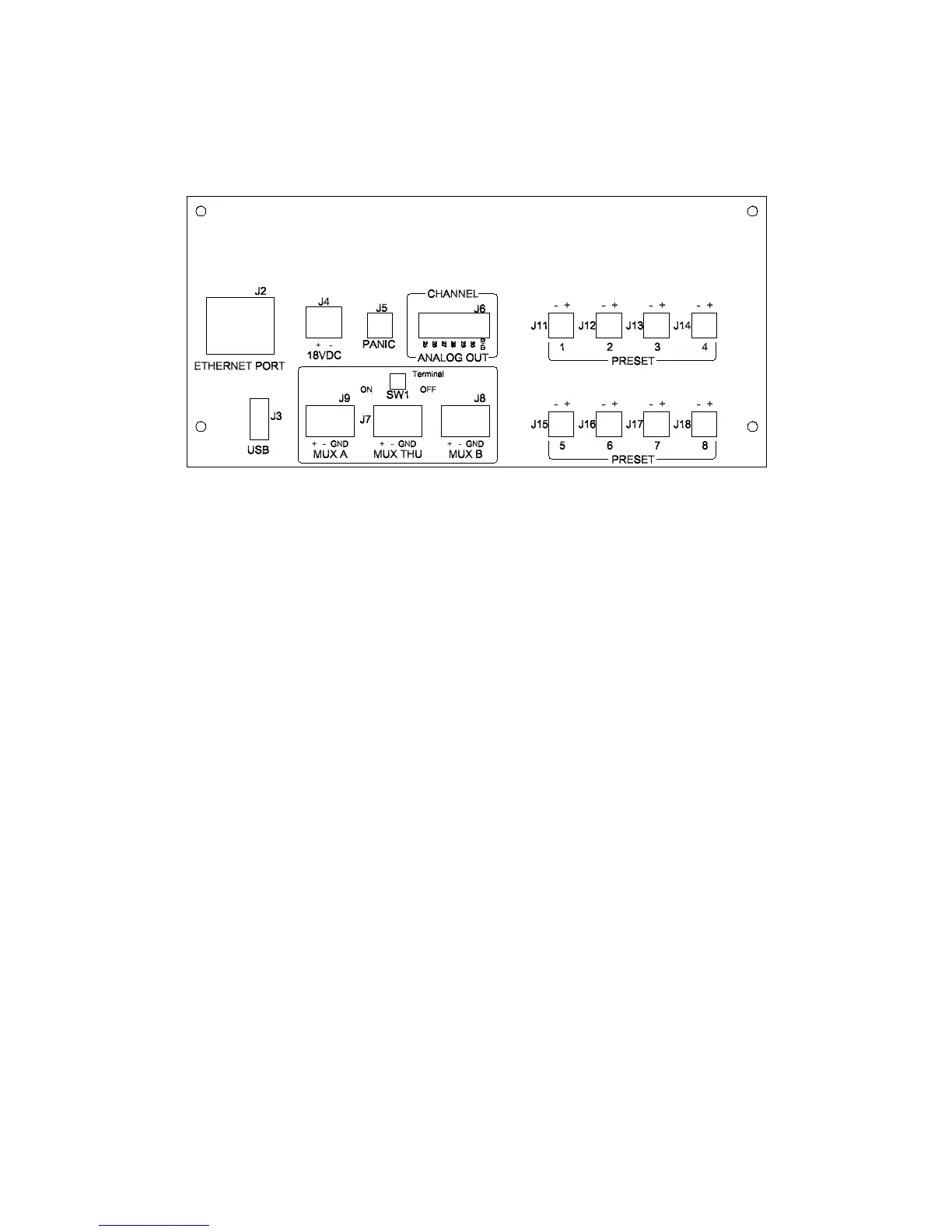

Control Signal Connections
Control connections are made via screw terminals on the plug-in
connectors fitted to the Processor Unit PCB
J2 & J3 : Not used.
J4: 18VDC for Architectural control panels.
J5: Remote panic connection.
J6: Analogue output 0-10V control signals to drive external devices.
J7: DMX THRU output.
J8: DMX B input.
J9: DMX A input.
J11-J18: Preset 1-8 contact.
SW1-1: Termination for Mux B
SW1-2: Termination for Mud A
User Manual v1.2 March 2006 12
