Wallrack User Manual

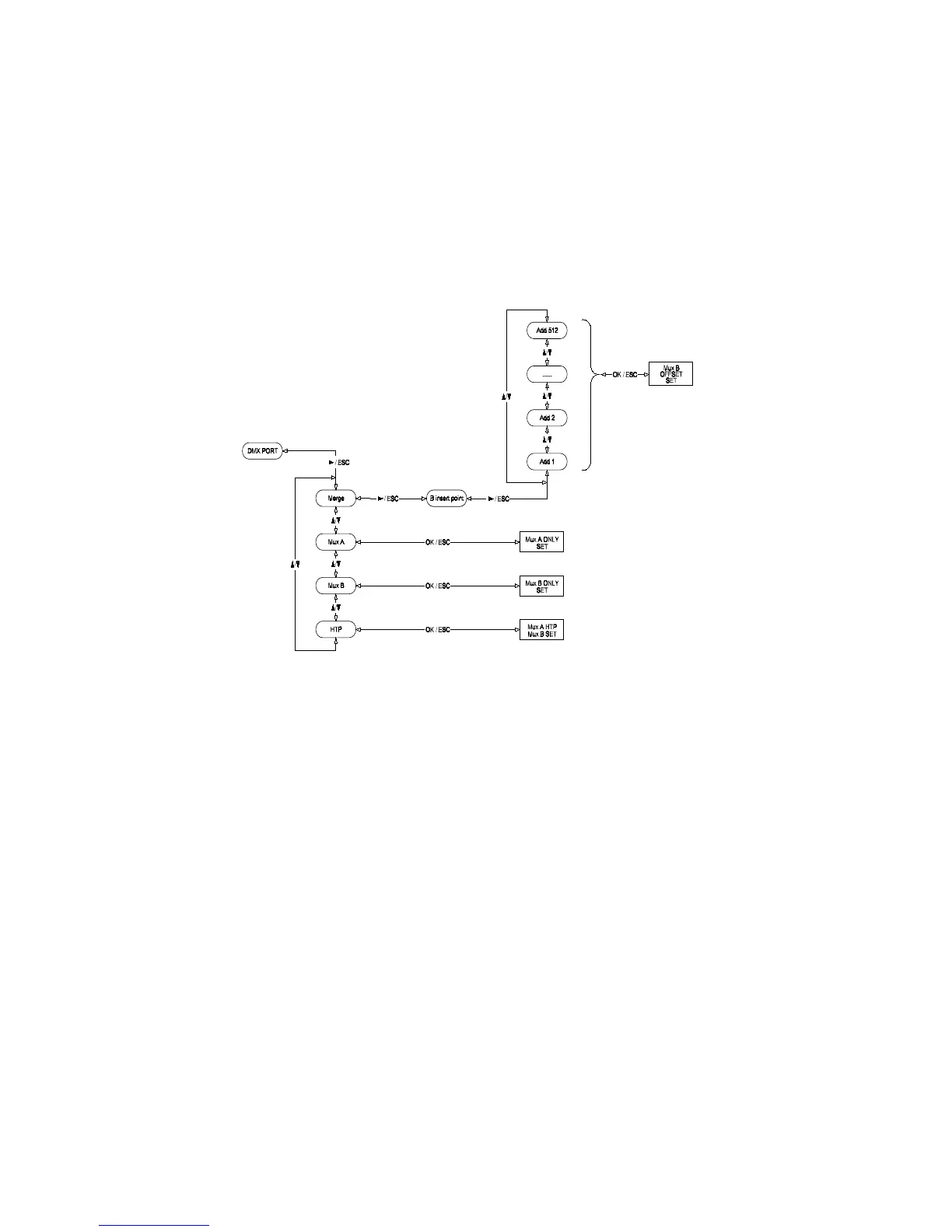

DMX Port
For DMX port, use Up/Down buttons to select either Merge, Mux A, Mux
B or HTP. Press Right button to enter.
For the Merge option, you will also need to select the point that Mux B
merges with Mux A. Press the Right button and then use the Up/Down
buttons to select the first Mux B address to merge with DMX 1 of Mux A.
Press Right button to enter.
Press OK to confirm changes, press again to save or press Esc to exit
without saving any changes.
User Manual v1.2 March 2006 21
