Installing a System Chassis
9-18 Stratus ftServer 29x0, 49x0, and 69x0 Systems: Site Planning and Installation Guide (R786)
6. At the front of the cabinet, slide the shelf unit all the way in.
7. In the locations shown in Figure 9-15, secure the shelf unit to the front vertical rails
by inserting and tightening two 10-32 x 5/8 flat-head screws (number 1) with
countersunk lock washers (number 2) into each mounting flange on the shelf unit
and into countersunk lock washers.

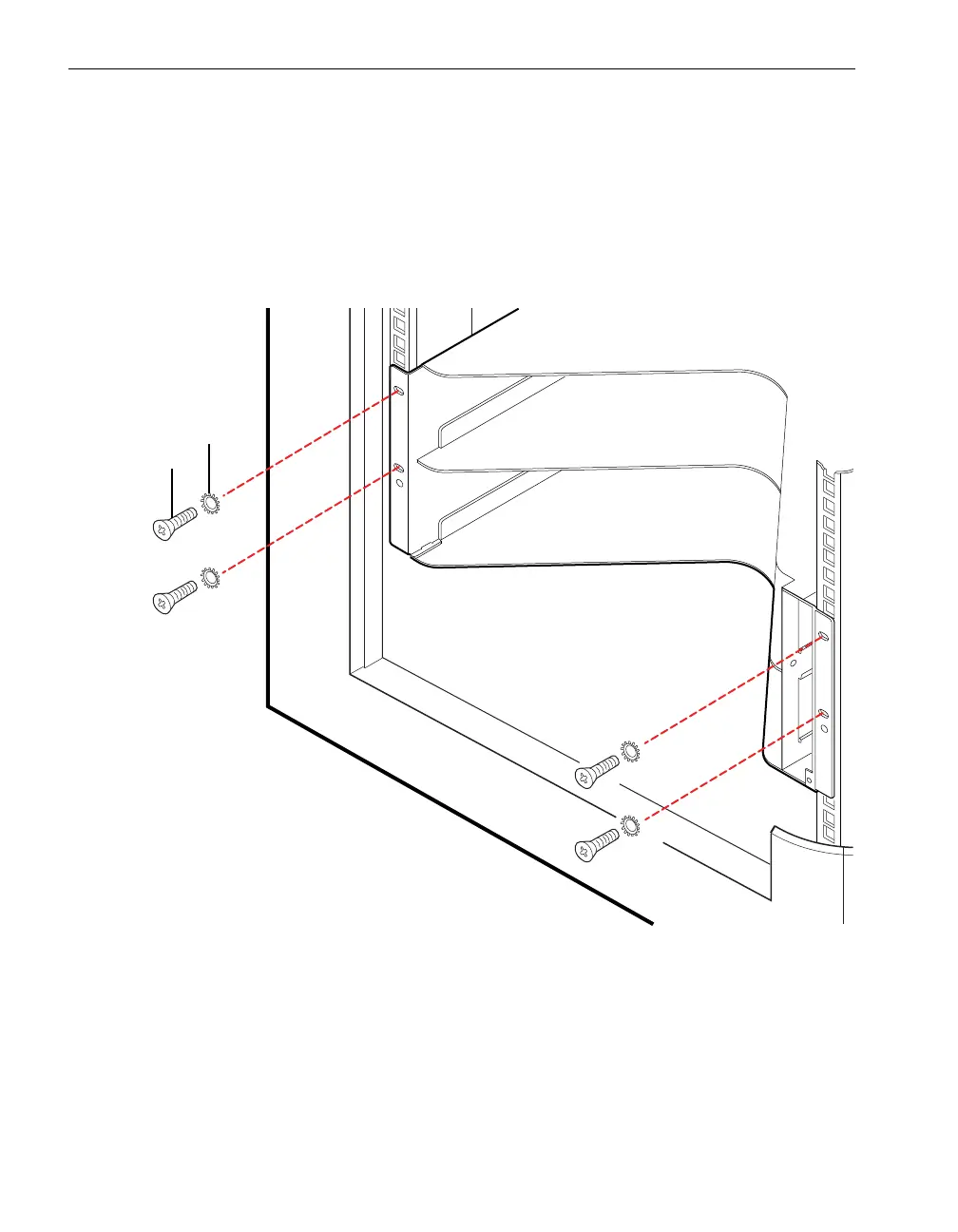

Figure 9-15. Securing the Shelf Unit to the Front Rails
8. Tighten the two guide screws.
9. Secure each side of the shelf unit to a rear mounting bracket (number 1 in
Figure 9-16) with three 10-32 x 1/2-in. flat-head screws (number 2) with
countersunk lock washers on each side, as shown in Figure 9-16.
Tighten the six screws.
1 10-32 x 5/8 flat-head screws (4) 2 Countersunk lock washers (4)
1
2
dco026
