Strider MX 3 - Removing the Handbrake Cable; Folding the Tiller Down; Disengaging Drive Unit from Chassis

57
Issued: 24.02.2005
STRIDER MX
Separate the front unit connecting
plug (14).
➨
Push or pull the locking lever (12) and
fold the tiller to the rear (13) until it is
horizontal.
➨
Folding the tiller down
Separating the front
connector
14.3.6 Folding the tiller down
14.3.7 Disengaging the drive unit from
the chassis
Transporting the Strider

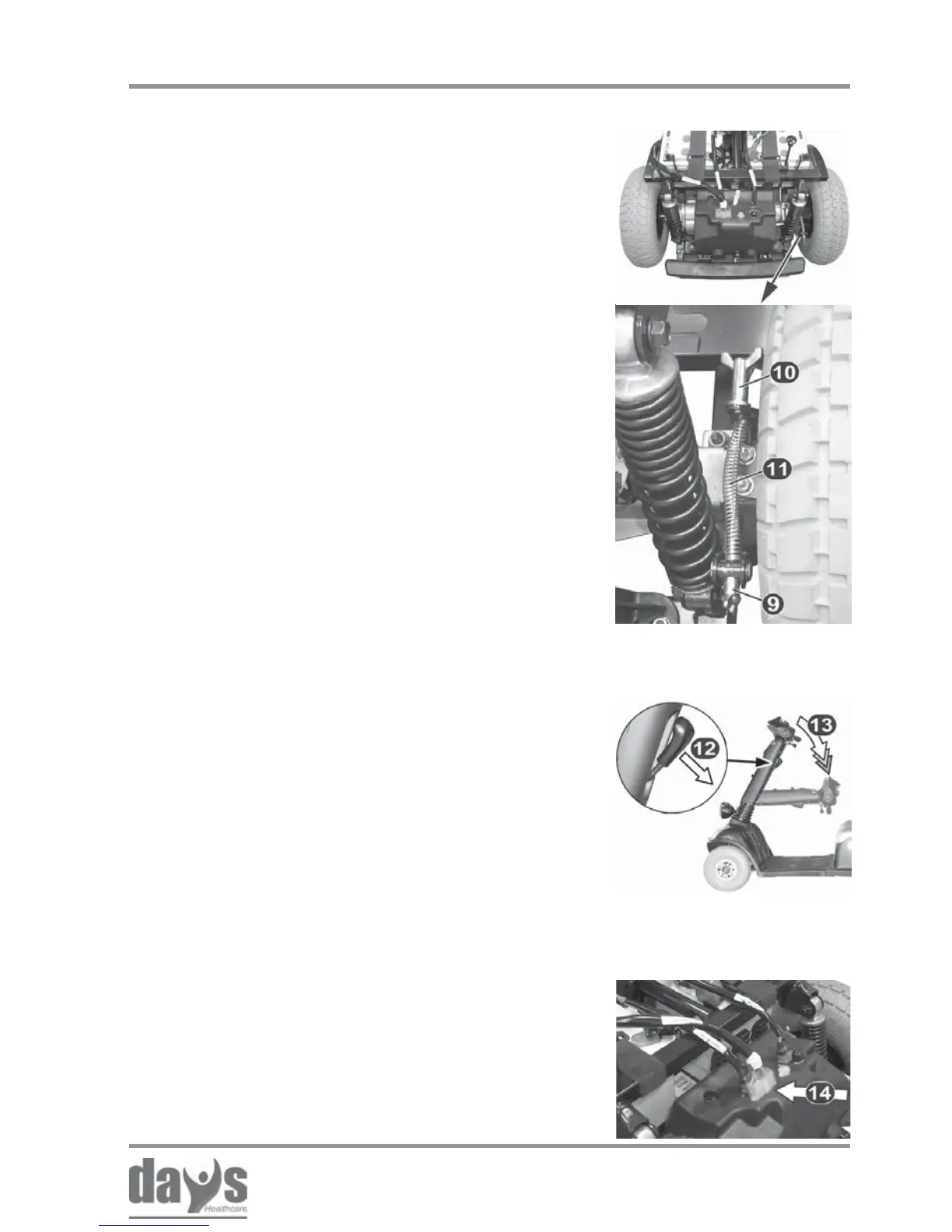

Remove the brake cable wing nut at the
brake lever (9).
Remove the brake cable mounting wing
nut (10).
Pull the brake cable (11) and pressure
spring (12) out of the brake lever (9)
and pull the cable seat out.
➨
➨
➨
14.3.5 Removing the handbrake cable
