Issued: 24.02.2005
STRIDER MX
18.4 Lighting - 3 wheel version

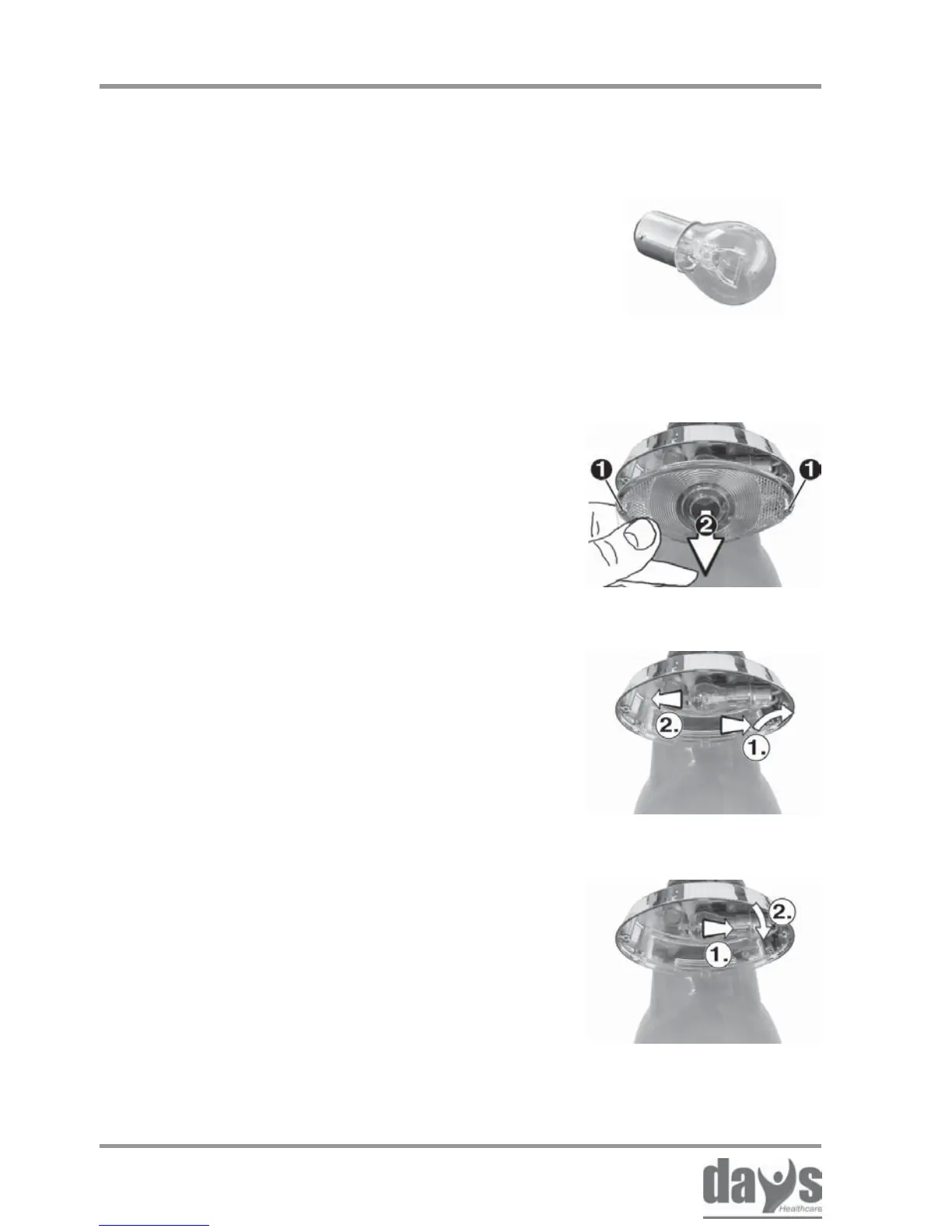

18.4.1 Replacing bulb in headlight
Bulb version used: 24 V / 10 Watt
Loosen the fixing screws (1) and remove
the front light lens (2).
➨
Remove the bulb:
(1.) Press the bulb in lightly and remove
by turning 1/8 turn to the left.
(2.) Pull the bulb out of the lamp holder.
➨
Fitting a new bulb:
(1.) Align the bulb base pins with the
grooves in the lampholder and
push the bulb into the lampholder.
(2.) Press the bulb in lightly and lock
by turning 1/8 turn to the right.
➨
Removing the lamp lens
Removing the bulb
Fitting a new bulb
Insert the front light lens and secure
with the fixing screws.
➨
Tools required:
1 x screwdriver; Phillips head No. 2
Repairs - lighting
