REMOTE CASES: CONDENSATE PUMP LOCATION AND PURPOSE
1. Condensate Pump Location
 Warning! Turn power off and/or disconnect
power before providing maintenance and
service to unit.
 Assembly/disassembly/servicing to be
performed by licensed refrigeration
contractor.

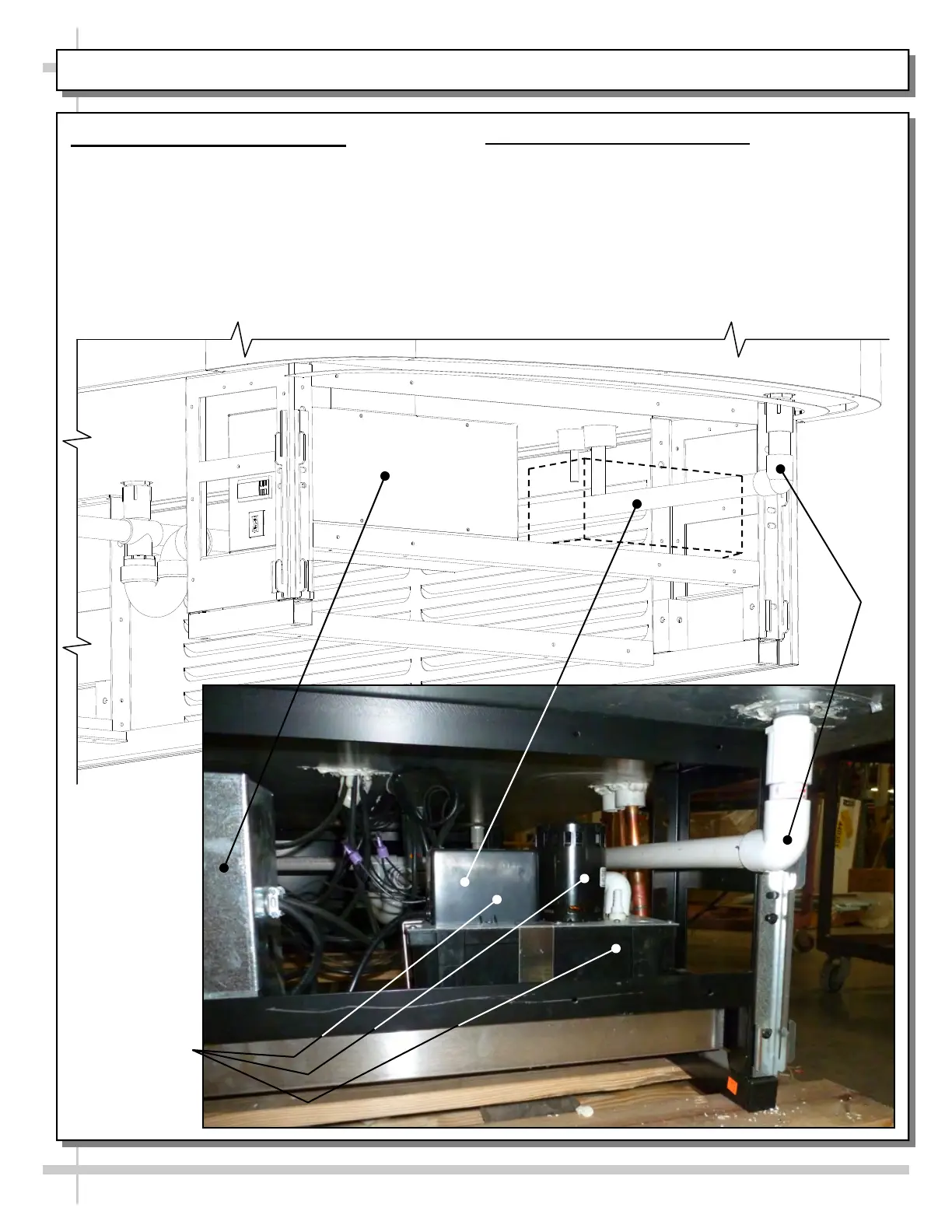

 Condensate pump is located just behind
ballast box (as shown in illustration below).
2. Condensate Pump Purpose
 Condensate pump is to be used when no floor
drain is available.
 Condensate pump transfers condensation
from lower section of case through top of
case and out.
