REFRIGERATION FUNDAMENTALS: SELF-CONTAINED DRAIN LAYOUT
Self-Contained Refrigeration Line Access, Connections & Servicing To Be Accomplished By
Licensed Contractors Only

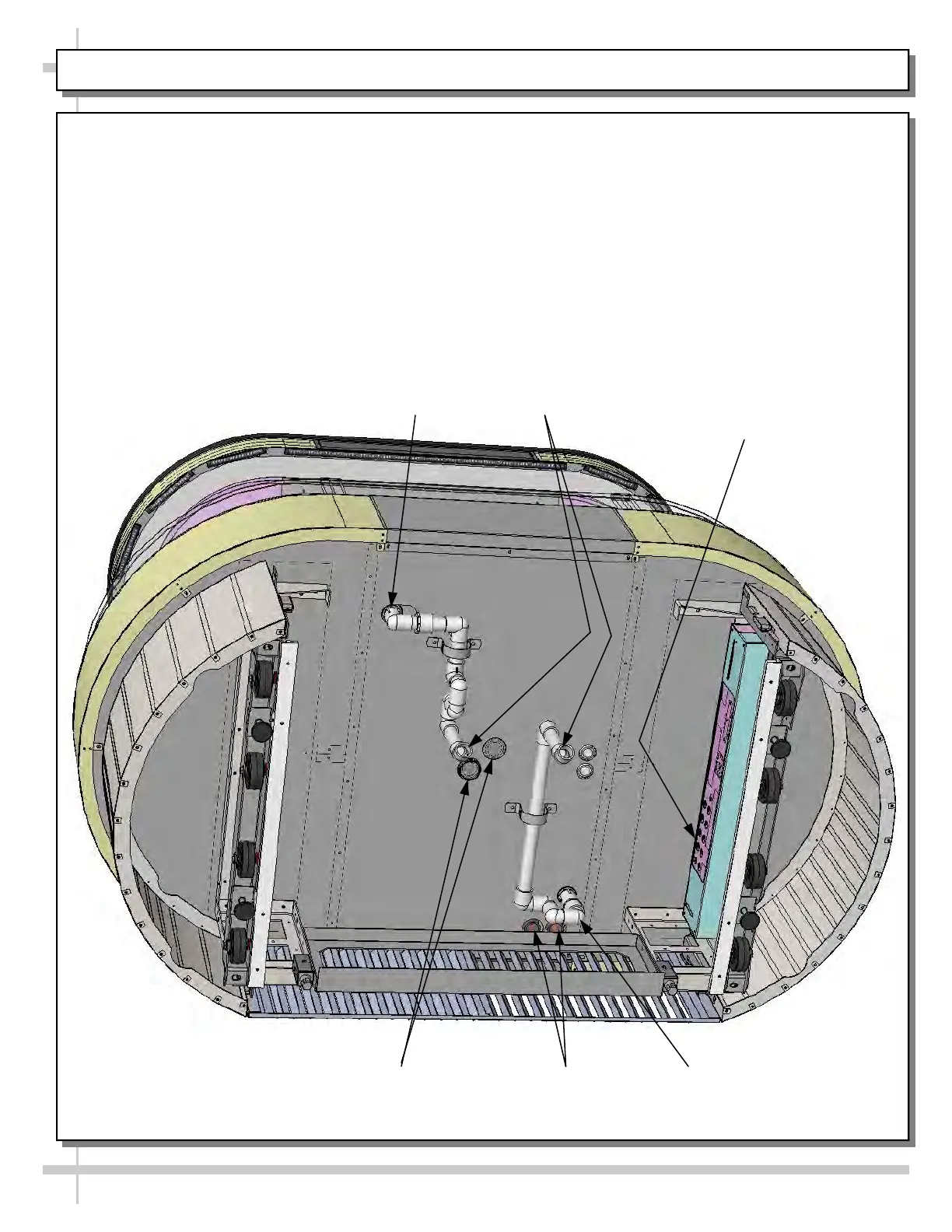

 Illustration below shows location of refrigeration lines for self-contained operation.
 Four (4) drains accessible from top of unit by lifting up decking.
 See POWER-UP CHECK (EVAPORATOR FAN AREA) section in this manual for under decking drain
illustration.
Case Front
Drain
Drain Spouts
Refrigeration
Lines
Center Pass-Through
(Covered)
Field Wiring
Box
Case Rear
Drain
