Structural Concepts FSI856R - SHIPPING BRACKET PURPOSE; REMOVAL METHOD and DISPOSAL

1. Shipping Bracket Purpose
 Shipping brackets are designed to secure
condenser package during shipment.
 See illustration below.
2. Shipping Bracket Removal and Disposal
 Shipping bracket is secured by two (2)
screws at each end.
 Remove all four (4 screws) from bracket.
 Remove bracket from case.
SHIPPING BRACKET PURPOSE / REMOVAL METHOD and DISPOSAL / SHIPPING BRACE REMOVAL
5

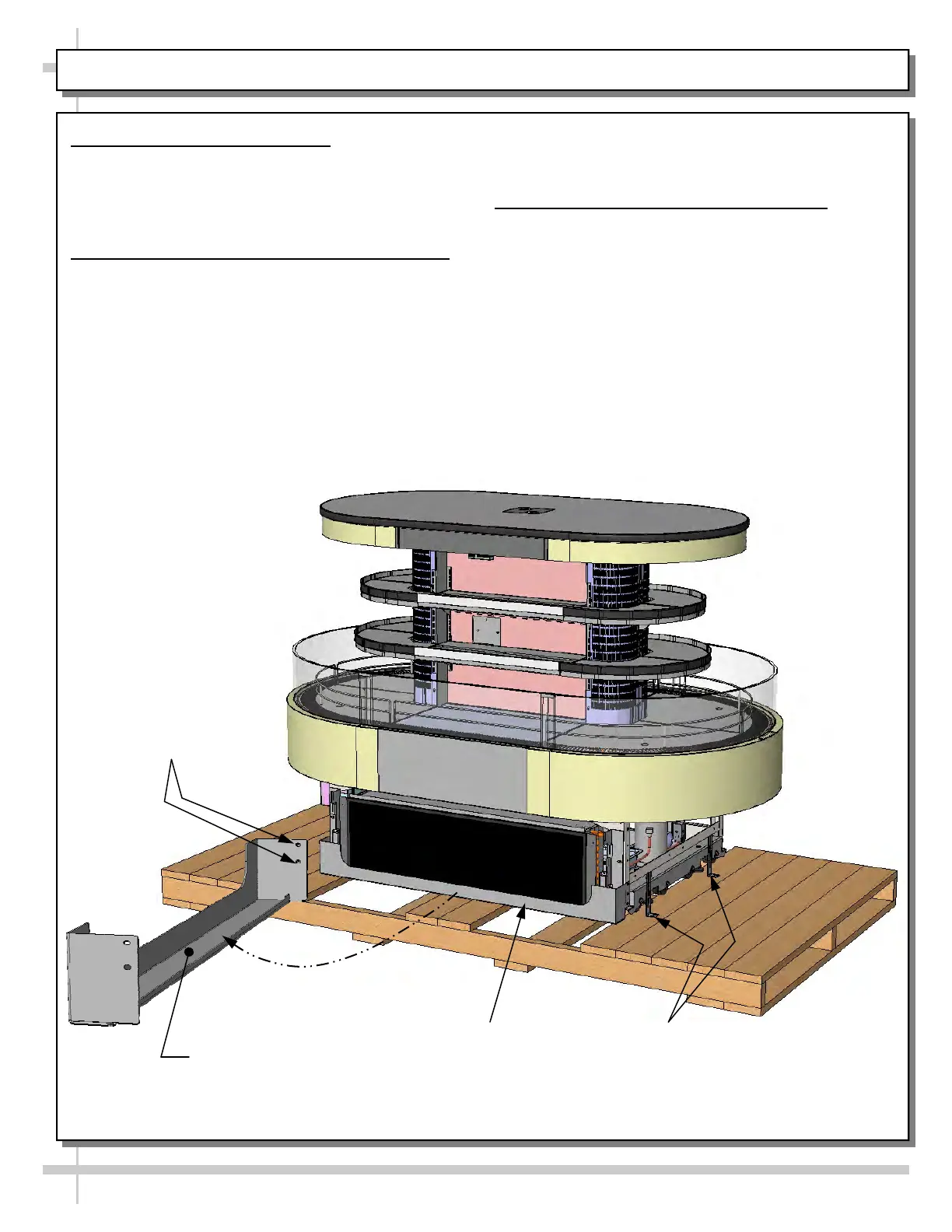

Enlarged View of
Shipping Brace For
In-Line Casters
(Shown Removed)
Shipping Brace
Attachment Holes (Typ.)
 Either discard or recycle.
 See illustration below.
3. Shipping Brace For In-Line Casters
 A shipping brace is on the condenser coil side of
case.
 It is to be removed AFTER the case is in position.
 Brace may be removed via four (4) screws.
Discard/recycle after removal.
 A view of the brace is shown in “removed”
position below for illustrative purposes only.
Enlarged View of
Shipping Brace For
In-Line Casters
(Shown Attached)
Shipping Brackets
(Typ.)
