REFRIGERATION FUNDAMENTALS: CONDENSATE PACKAGE ILLUSTRATED PARTS BREAKDOWN

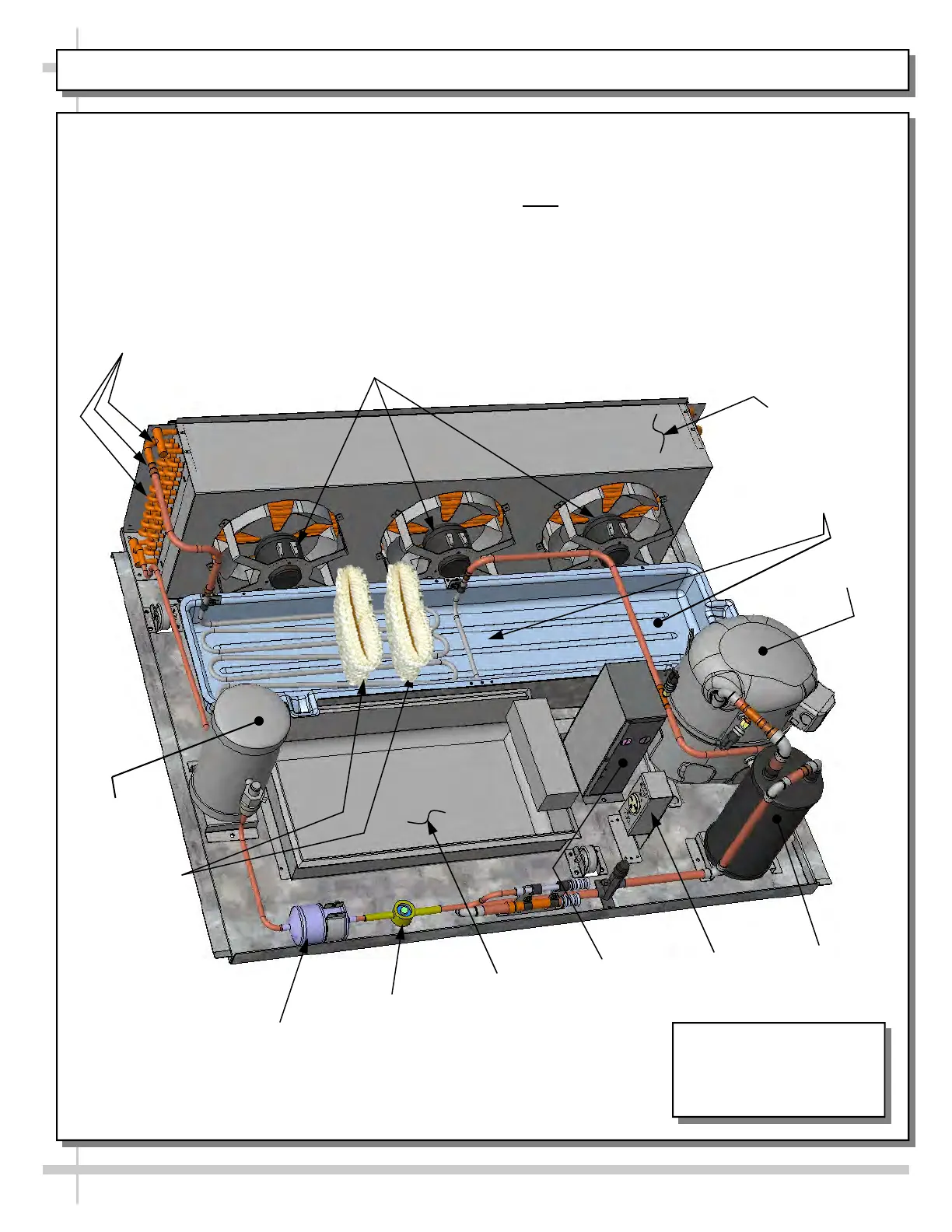

Condensate Package Configuration
Illustration shown is from model FSI863R. Your
unit’s component layout may slightly vary.
Note: As shown in illustration below, condensate
package may have wicking material for
evaporation purposes.
Refrigeration
U-Tubes
Filter Dryer
Electrical
Starter Unit
Condenser Coil
Housing
Condenser Coil Fan,
Fan Housing & Motor
Overflow
Condensate
Pan
Hot Gas Loop
Condensate Pan
Wicking Material
(Optional)
Sight Glass
Compressor
Accumulator
Receiver
Self-Contained Unit’s Condensate Package
Illustrated Parts Breakdown
Assembly/disassembly and servicing to be
performed by licensed refrigeration contractor.
Illustration Shown May Not
Exactly Reflect Every
Feature or Option of Your
Particular Model
Electrical
Outlet
