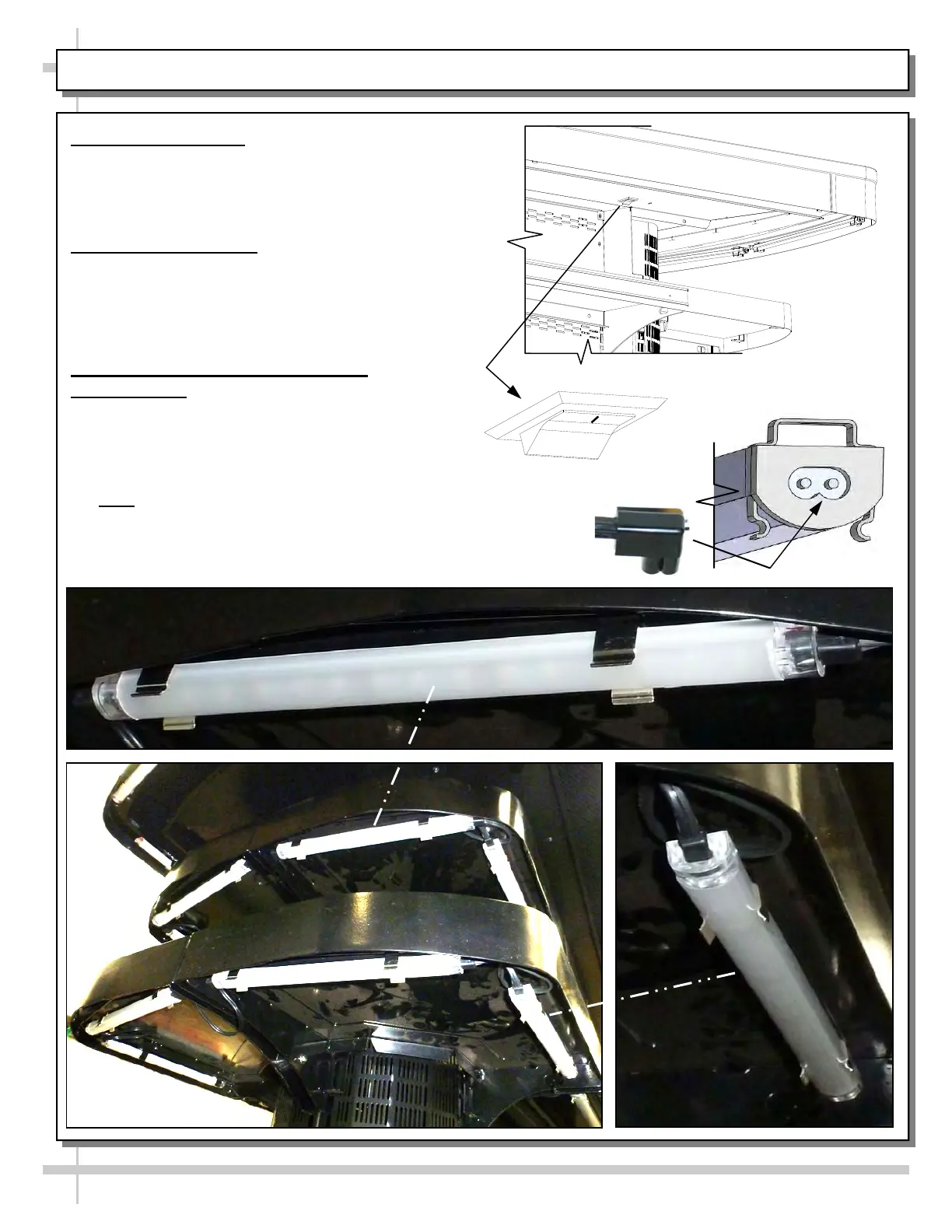

MAINTENANCE FUNDAMENTALS, CONTINUED: LED LIGHT FIXTURES / REMOVAL / REPLACEMENT
2. LED Light Switch
 LED light switch to entire case is always located
in upper section of the case.
 See illustration at top-right.
3. LED Light Fixtures
 Light fixtures are always located in upper
section of the case.
 LED light fixtures MAY ALSO be located on
shelving (as shown in photos below).
4. LED Light Fixture Removal and
Replacement
 This case is provided with mini-LED lights which
will rarely require change-out.
 To remove LED light fixture, disconnect the
existing LED light from its brackets. Replace.
 Note: LED Plug must be connected in a specific
manner or they will not work.
 Oval form of plug must connect to oval form of
LED light. See illustrations at right.
o
O
N
O
FF
