Plug’s
Oval Form
21
REFRIGERATION FUNDAMENTALS: CONDENSATE PACKAGE ACCESS
Refrigerant lines are flexible to facilitate
condensate package being slid out from case.
Plastic glides are mounted at base to assist in
sliding the condenser out for access.
Slide condenser unit out 12 to 18 inches to
access high pressure service connection.
Slide refrigeration package back under case
after cleaning and/or servicing is complete.
After servicing or cleaning, return panel to case.
Turn case back on.
>> See next page for complete illustrated parts
breakdown of condensate package after removal
from underside of case.
Self-Contained Units: Access to Condensate
Package
Assembly/disassembly and servicing to be
performed by licensed refrigeration contractor.
Access / Sliding Out Refrigeration Package
Simply remove panel (no screws required) by
lifting up and off.
Slots at sides of panel will lift off hooks.
Initial access may require removal of shipment
retaining screws (to prevent condensing package
from coming loose during transport).

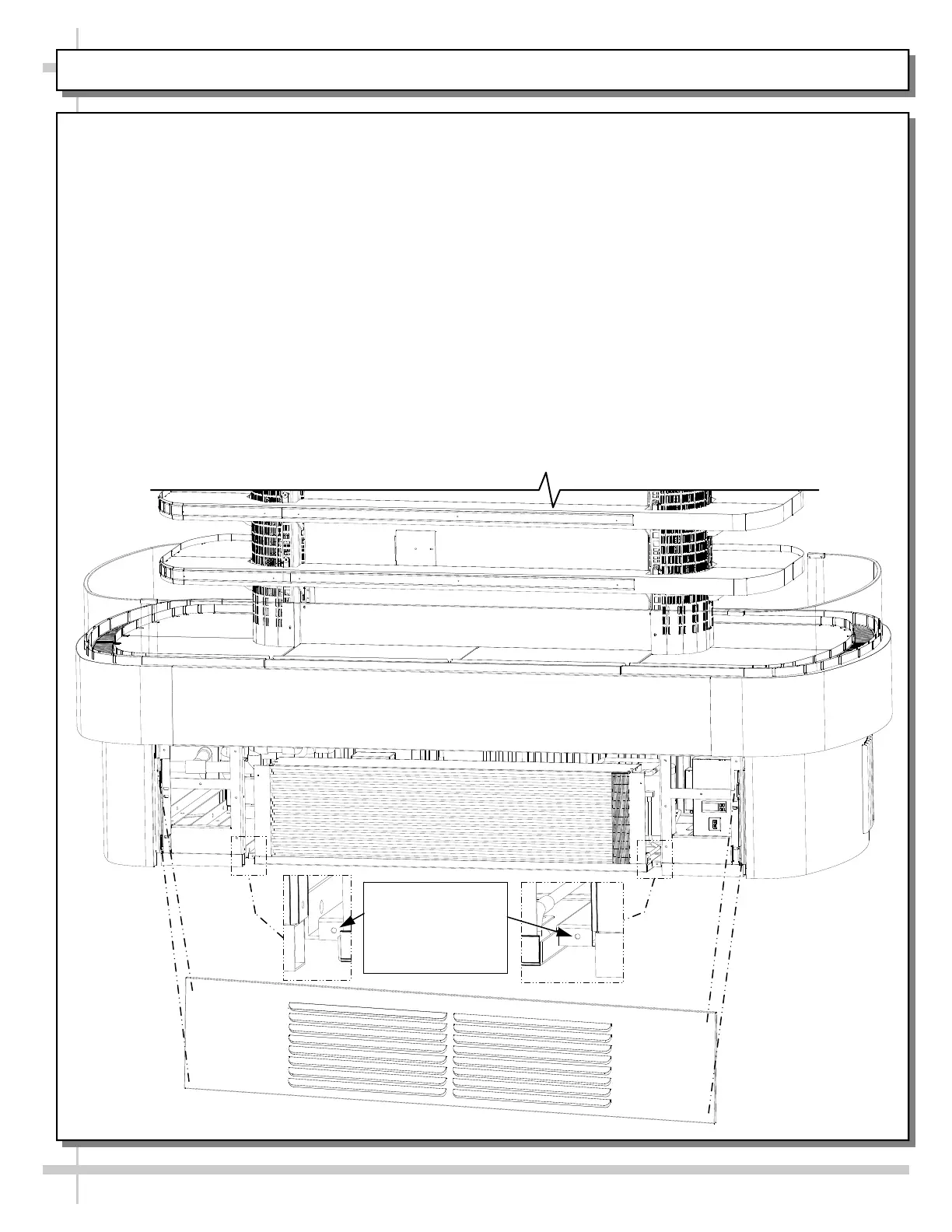

See illustration below for locations.
Condensing Unit
Shipment
Retaining Screw
Locations
Removable
Front Panel
To Next Page
