1020−021−010 X−Ray Tray Assembly, Left Side Load

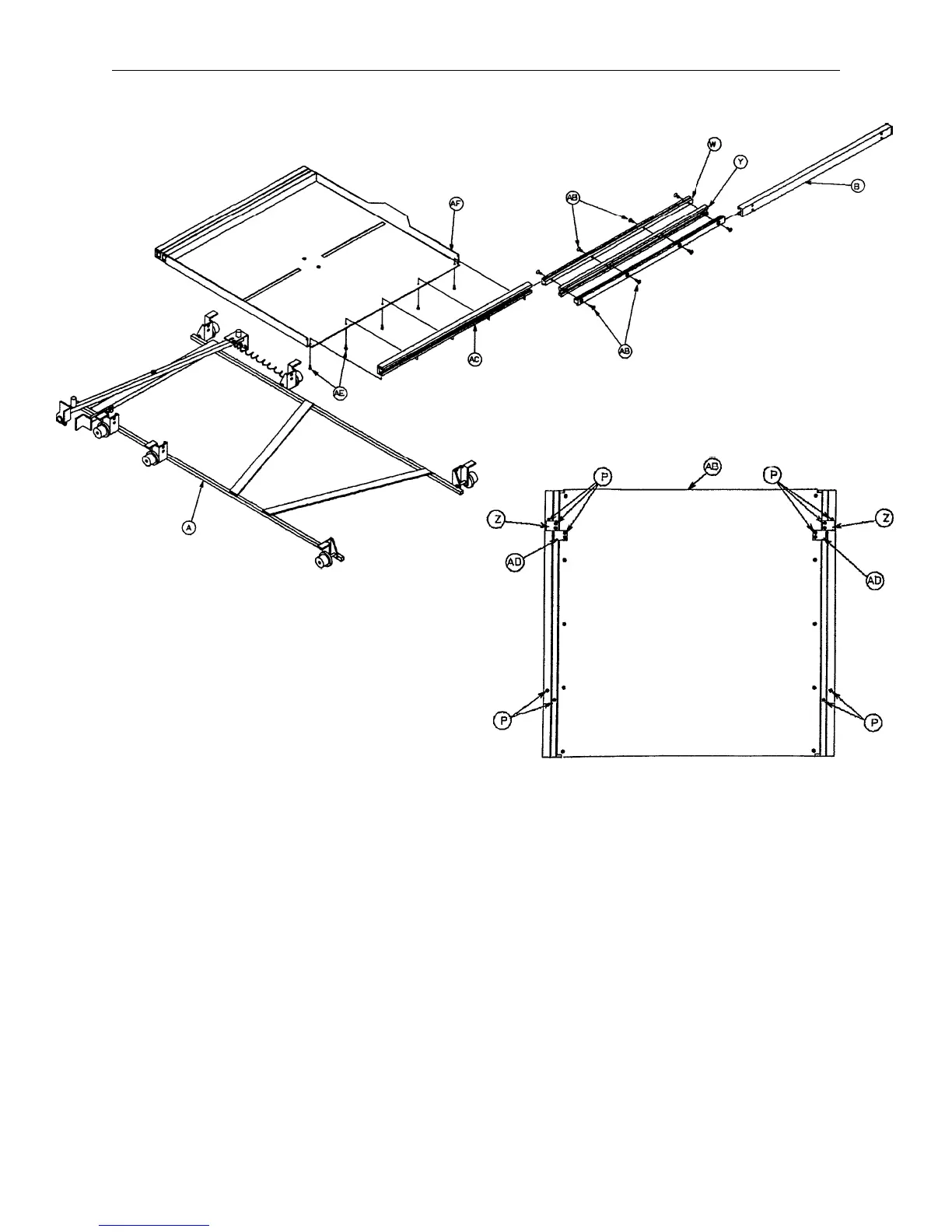

BOTTOM VIEW
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1020−021−044 Tray Frame Ass’y 1 W 1020−022−013 Inner Slide, Mach’d4
B 1020−022−011 Outer Slide, Mach’d 2 Y 1020−022−012 Support, Mach’d2
C 1020−021−015 Pivot Tube Ass’y 1 Z 1020−022−045 Stop, First Stage 2
D 1020−021−007 Brake Handle 1 AB 0001−087−000 Flat Hd. Screw 16
E 1020−021−036 Brake Adj. Bracket 1 AC 1020−022−047 Tray Slide, Mach’d2
F 0038−253−000 Extension Spring 1 AD 1020−022−046 Stop−2nd Stage 2
H 1020−022−059 Tray Wheel 6 AE 0004−167−000 But. Hd. Cap Screw 10
J 1020−022−025 Wheel Axle 6 AF 1020−021−014 Tray Pan 1
K 0028−098−000 Retaining Ring 6 AL 1010−032−066 Hole Plug 2
L 0011−146−000 Nylon Washer 1 BJ 1010−022−035 Retention Spacer, Rt. 1
M 0037−064−000 Rubber Bumper 4 BL 1020−022−060 Label 1
N 0004−136−000 Soc. Hd. Cap Screw 8 BM 0004−171−000 But. Hd. Cap Screw 3
P 0004−101−000 Soc. Hd. Cap Screw 18 BN 0045−952−000 O−Ring 12
S 0004−026−000 Soc. Hd. Cap Screw 3 BP 0014−004−000 Nylon Flat Washer 6
T 0016−003−000 Nylock Hex Nut 5 BR 1010−022−036 Retention Spacer, Lt. 1
