Stryker 1020 - Page 98

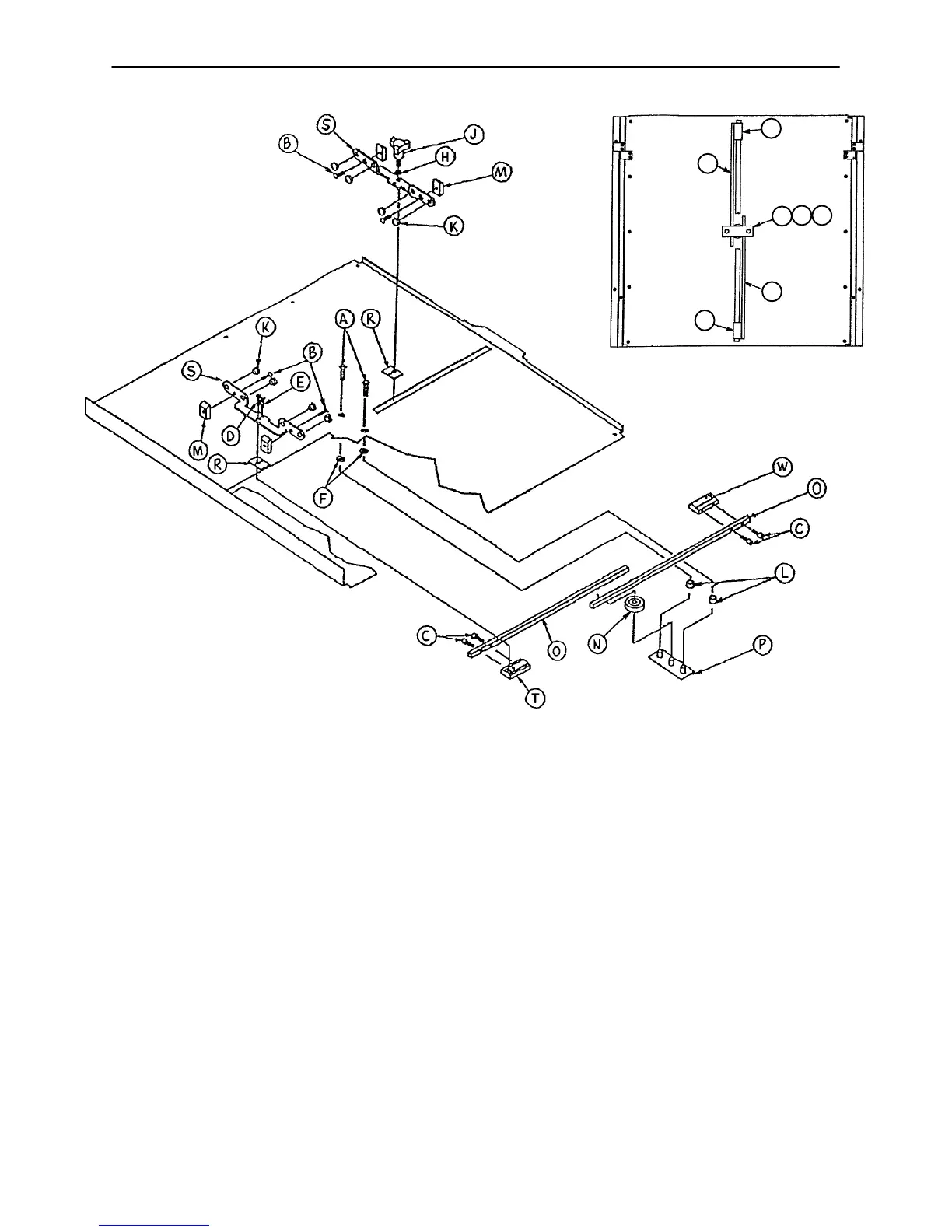

1020−020−000 Optional X−Ray Centering Guide
97
L
O
T
W
O
P
BOTTOM VIEW
N
Item Part No. Part Name Qty.
A 0001−022−000 Flat Hd. Mach. Screw 2
B 0001−085−000 Flat Hd. Mach. Screw 4
C 0004−127−000 Soc. Hd. Cap Screw 4
D 0004−169−000 But. Hd. Cap Screw 1
E 0004−170−000 But. Hd. Cap Screw 1
F 0011−146−000 Nylon Washer 2
H 0011−132−000 Nylon Washer 1
J 0024−051−000 Three Arm Knob 1
K 0037−064−000 Rubber Bumper 8
L 0052−250−000 Spacer 2
M 1020−022−021 Slide Block 4
N 1020−022−041 Spur Gear 1
P 1020−022−052 Guide Plate 1
R 1020−022−055 Slide Pad 2
S 1020−022−056 Centering Plate 2
T 1020−022−057 Left Rack Connector 1
W 1020−022−058 Rack Connector Ass’y1
X 1020−019−005 Centering Label (not shown) 1
