www.stryker.com 1089-009-002 REV B 47

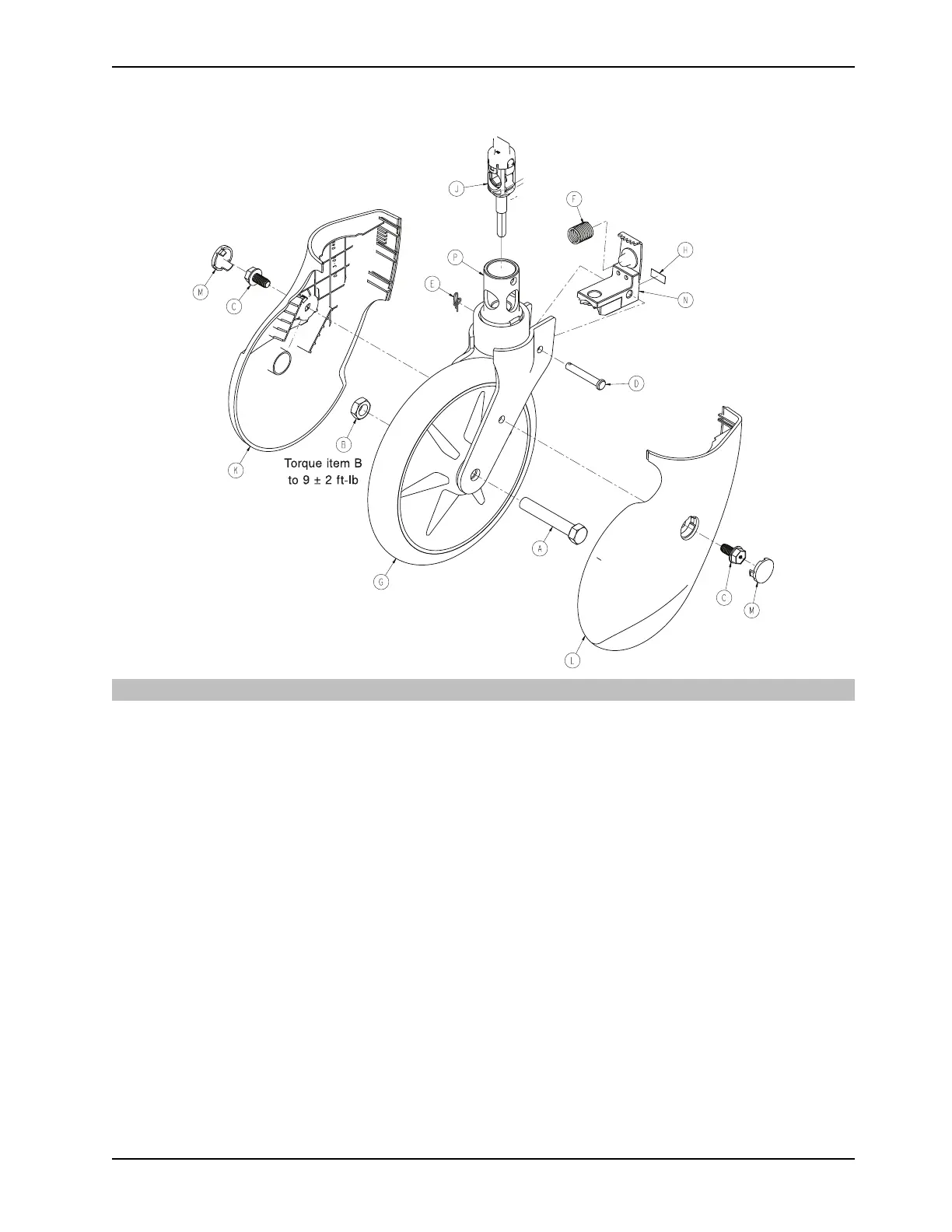

8 in. caster with full cover assembly
0853–503–020 Rev C (Reference Only)
Torque item B
to 9 ± 2 ft-lb
Item Part No. Part Name Qty
A 0003–099–000 Hex Head Cap Screw
1
B 0016–060–000 Toplock Hex Jam Nut
1
C 0023–330–000 Hex Washer Head Screw 2
D 0026–377–000
Clevis Pin
1
E 0027–020–000
Rue Ring Cotter
1
F 0038–596–000
Compression Wire
1
G
0753–103–215 Molded Wheel Assembly
1
H 0853–003–032
Label, Caster Brake Pad
1
J 0853–003–040
Cam Housing Assembly
1
K 0853–003–046
Caster Cover, Right
1
L 0853–003–047
Caster Cover, Left
1
M 0853–003–048
Caster Cover Plug
2
N 0853–203–030 Brake Pad Assembly
1
P 0853–303–021
Caster Horn with Bearing Assembly
1
