Stryker 1089 - Page 48

48 1089-009-002 REV B www.stryker.com

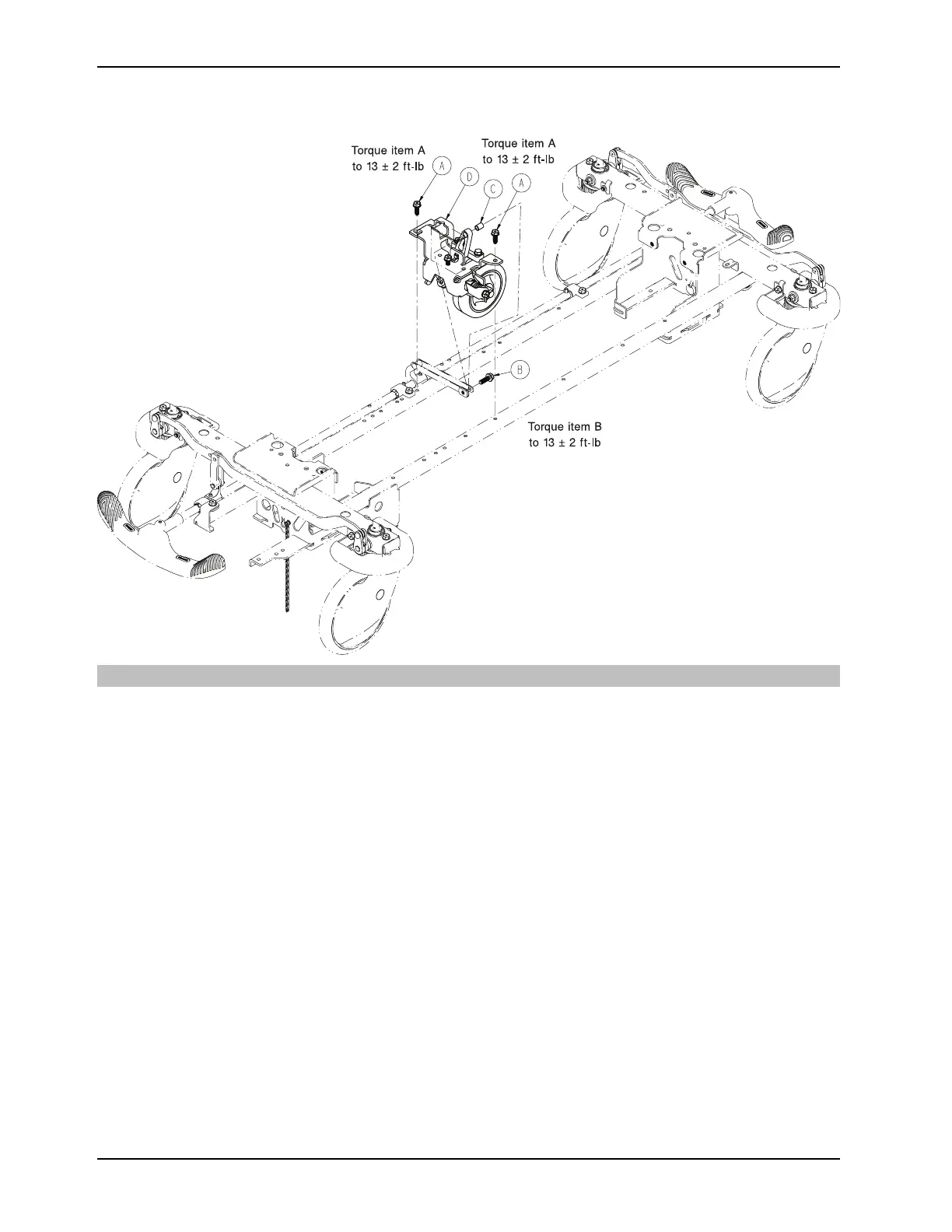

Retractable fifth wheel assembly
1105–006–110 Rev A (Reference Only)
Torque item A
to 13 ± 2 ft-lb
Torque item A
to 13 ± 2 ft-lb
Torque item B
to 13 ± 2 ft-lb
Item Part No. Part Name
Qty
A 0023–288–000
Hex Washer Head Screw
2
B 0023–305–000 Hex Washer Head Screw
1
C 0753–006–148 Cam Bearing
1
D 1105–006–130 Fifth Wheel Assembly (Fifth wheel
assembly — 1105–006–130 on page
49)
1
