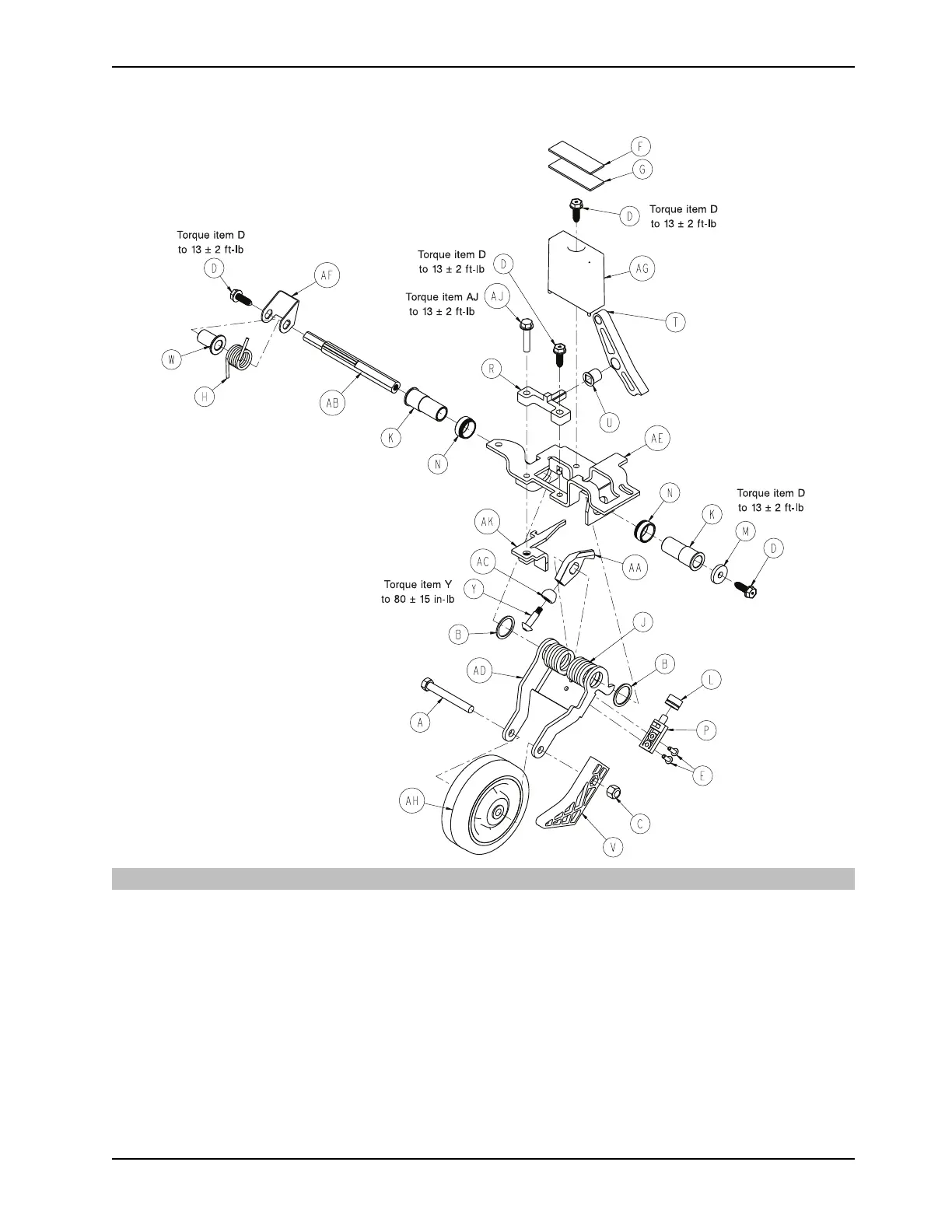

Fifth wheel assembly — 1105–006–130
Rev B (Reference Only)
Torque item D
to 13 ± 2 ft-lb
Torque item D
to 13 ± 2 ft-lb
Torque item AJ
to 13 ± 2 ft-lb
Torque item D
to 13 ± 2 ft-lb
Torque item D
to 13 ± 2 ft-lb
Torque item Y
to 80 ± 15 in-lb
Item Part No. Part Name
Qty
A 0003–083–000
Hex Head Cap Screw
1
B 0011–360–000 Washer 2
C
0016–035–000 Nylock Hex Nut
1
D 0023–288–000
Hex Washer Head Screw
4
E 0025–050–000 Dome Head Rivet 2
F 0029–007–000 Dual Lock
1
G
0029–009–000 Dual Lock
1
H 0753–006–074
Torsion Spring
1
J 0753–006–075
Torsion Spring
1
K 0753–006–097
Drive Shaft Bearing
2
