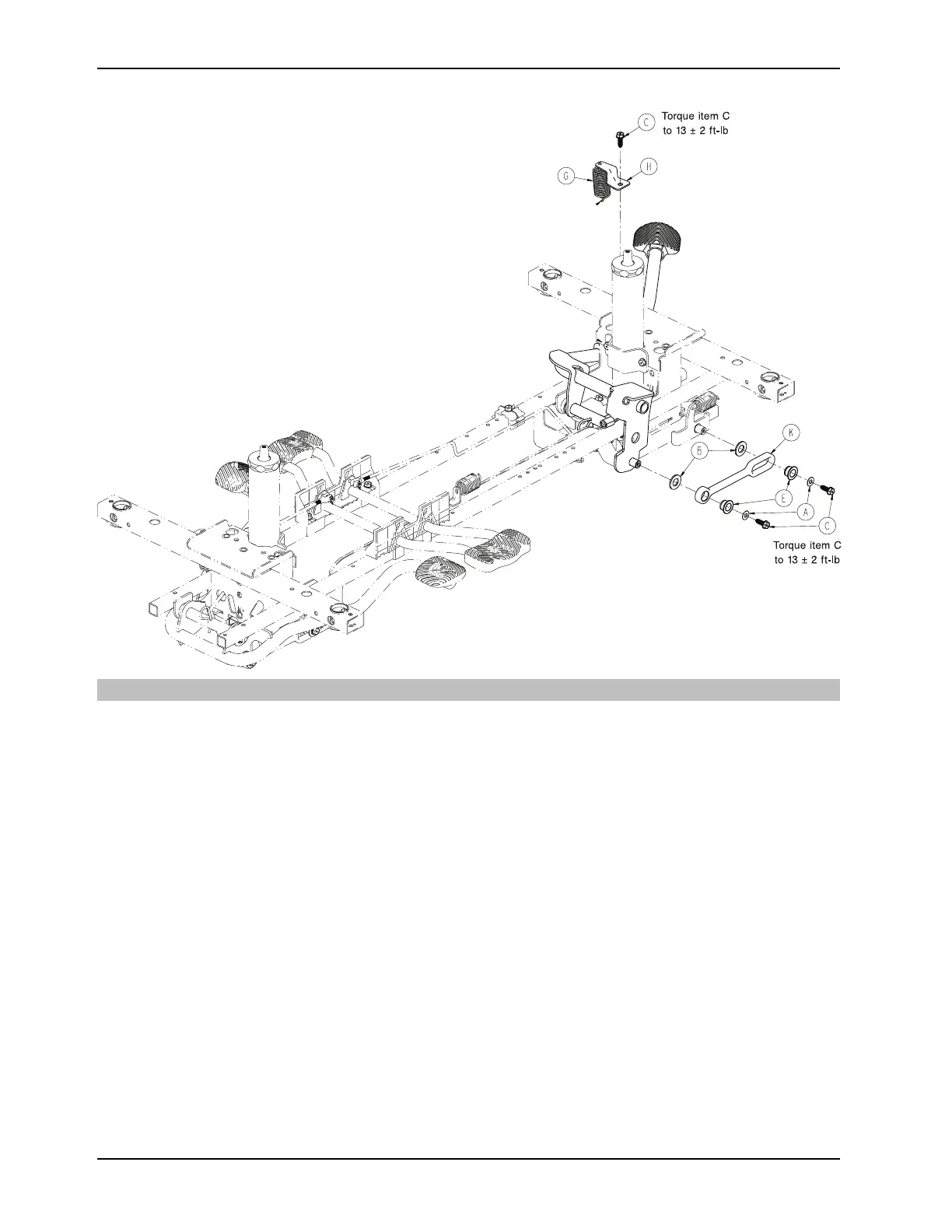

Three-sided hydraulics assembly
Torque item C
to 13 ± 2 ft-lb
Torque item C
to 13 ± 2 ft-lb
Item Part No. Part Name
Qty
A 0011–023–000 Washer 2
B 0014–071–000 Washer 2
C
0023–288–000
Hex Washer Head Screw
5
D 0027–031–000
Hair Pin Cotter
1
E 0753–005–044 Pump Pedal Bushing 2
F 0753–005–074 Pivot Pin
1
G
0853–005–009
Return Spring
1
H 0853–005–011
Pump Pedal Spring Return Bracket
1
J 1105–004–223 Release Pedal Assembly, Foot End
(Release pedal assembly, foot end
on page 59)
1
K 1105–005–075 Pump Pedal Link
1
L 1105–005–273 Pump Pedal Assembly, Foot End
(Pump pedal assembly, foot end –
1105–005–273 on page 60)
1
