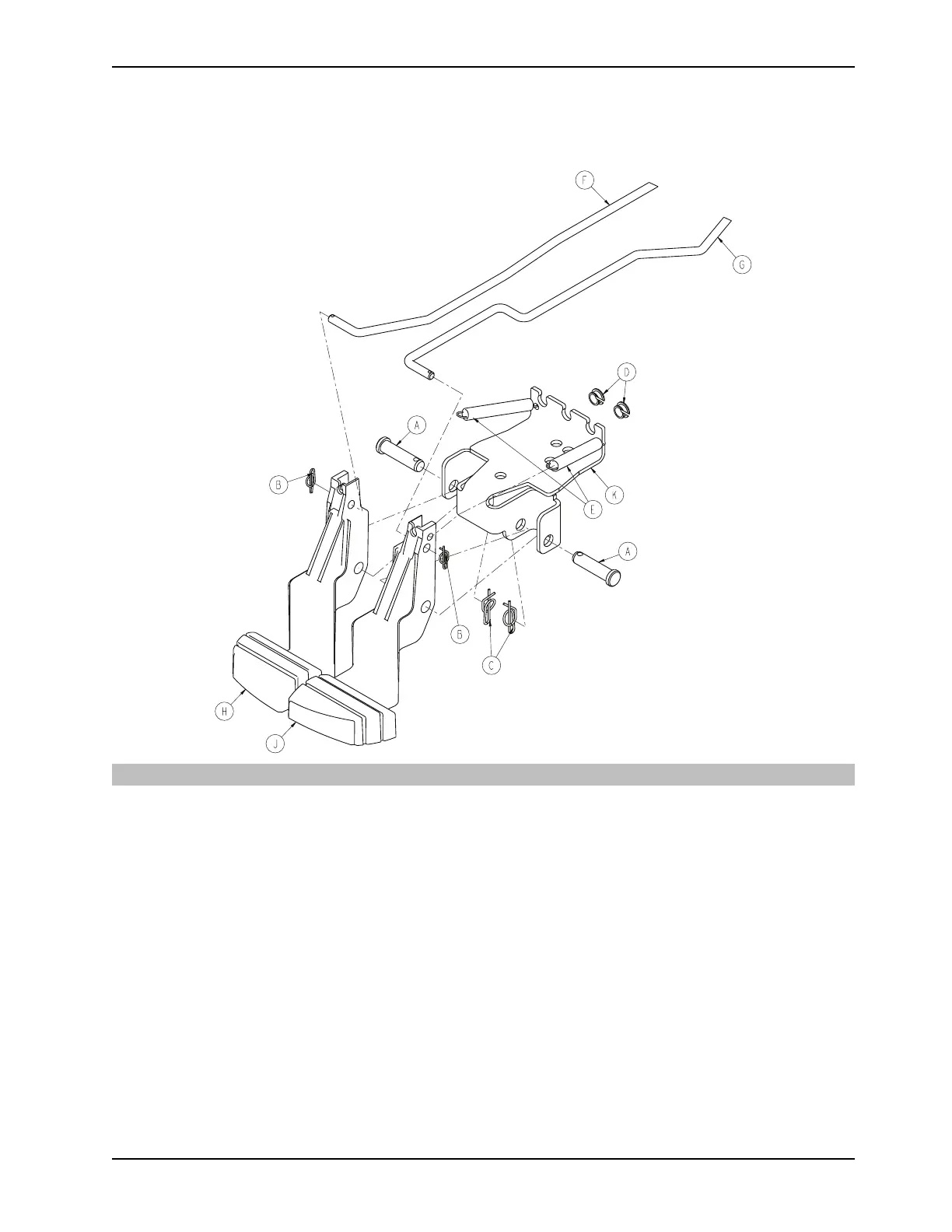

Release pedal assembly, foot end
1105–004–223 Rev A (Reference Only)
Item Part No. Part Name
Qty
A 0026–132–000
Clevis Pin
2
B 0027–020–000
Rue Ring Cotter
2
C
0027–022–000
Rue Ring Cotter
2
D 0052–822–000
Snap-In Nyliner
2
E 0753–004–028
Release Pedal Return Spring, Foot
End
2
F 0853–004–138 Release Rod, Foot End
1
G
0853–004–139 Release Rod, Head End
1
H 1105–004–144
Release Pedal, Left, Foot End
1
J 1105–004–145 Release Pedal, Right, Foot End
1
K 1105–004–422 Release Pedal Mounting Bracket,
Foot End
1
