110

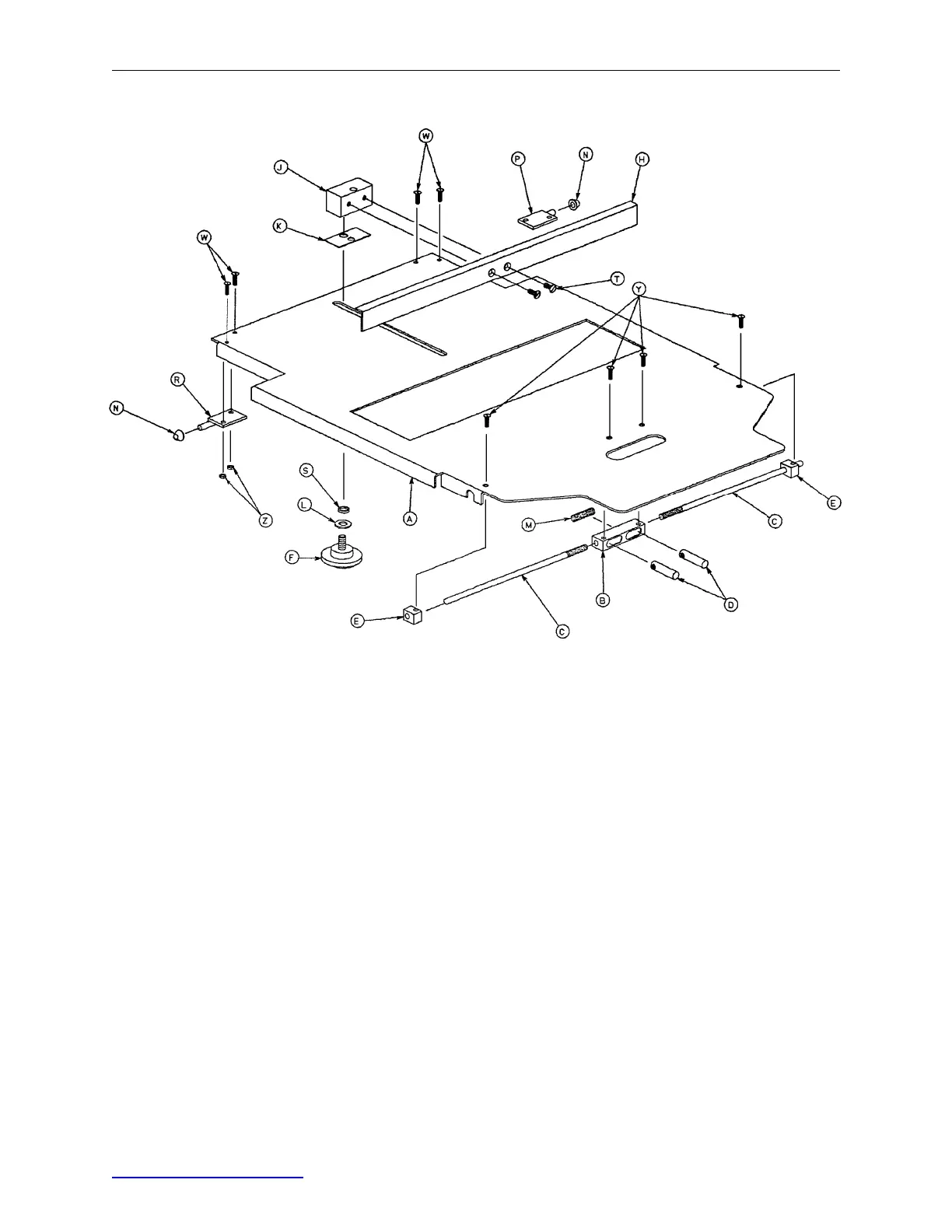

1001−23−10 Optional Fowler X−Ray Cassette Ass’y
Item Part No. Part Name Qty.
A 1001−23−12 Tray 1
B 1020−23−16 Post Housing 1
C 1001−23−14 Actuating Rod 2
D 926−23−64 Post 2
E 1010−23−37 Rod Guide 2
F 1020−23−21 Knob 1
H 1010−23−28 Tray Angle 1
J 926−23−70 Block Assembly 1
K 926−23−69 Washer 1
L14−3 Washer 1
M38−122 Compression Spring 1
N 1020−23−26 Spacer 2
P 1020−23−19 Tray Hinge, Right 1
R 1020−23−20 Tray Hinge, Left 1
S 926−23−71 Bushing 1
T1−20 Flat Hd. Mach. Screw 2
W4−149 Button Hd. Cap Screw 4
Y1−22 Flat Hd. Mach. Screw 4
Z16−3 Nylock Hex Nut 4
AA 1010−23−19 Instruction Label 1
AB 1001−23−25 Specification Label 1
