Stryker 1550 - Non−Quick Drop Fowler and Gatch Assembly

91

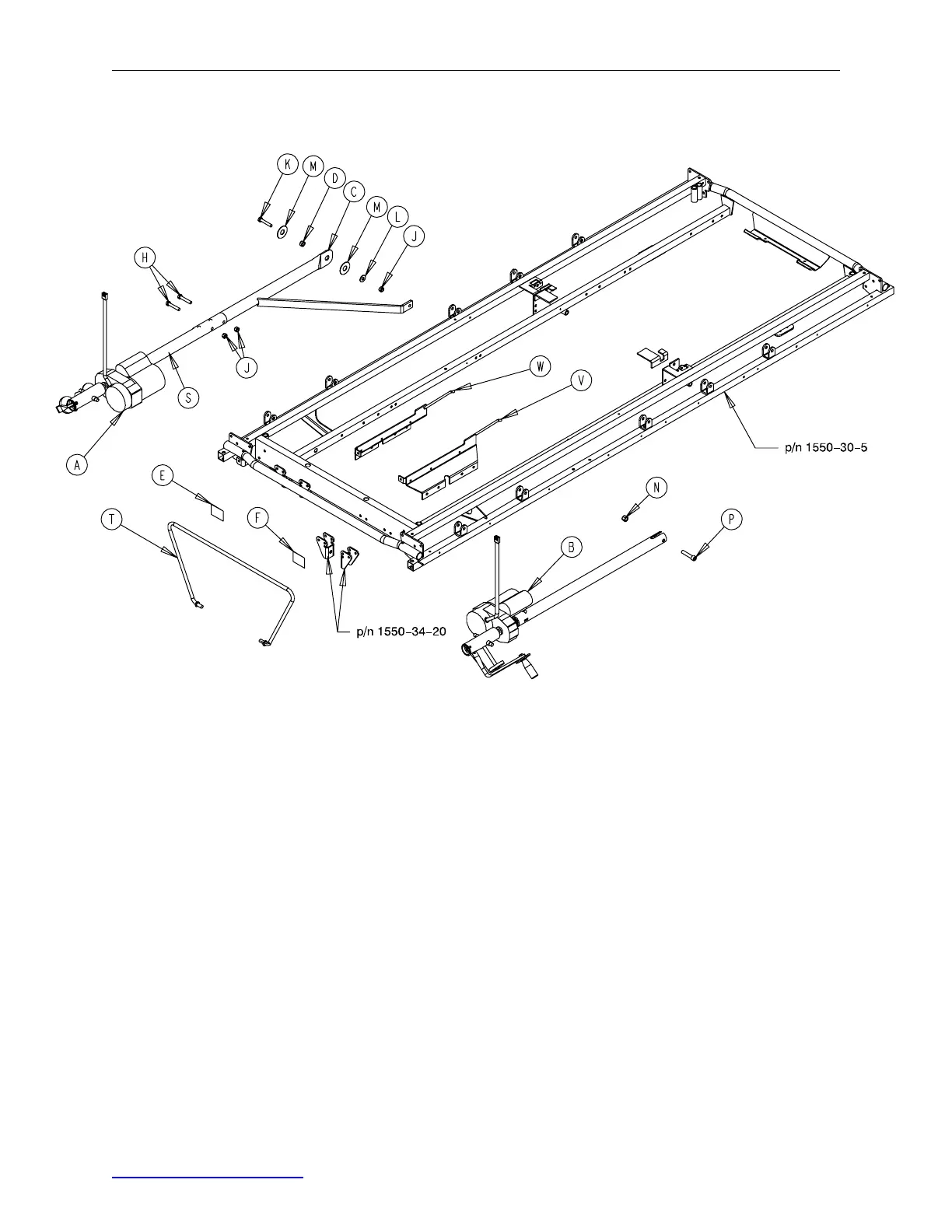

Non−Quick Drop Fowler & Gatch Assembly
Assembly part number
1550−36−10
(reference only)
Item Part No. Part Name Qty.
A(page 92) Fowler Crankscrew Ass’y 1
B(page 93) Gatch Crankscrew Ass’y 1
C 1550−33−54 Fowler Drive Bar Weldment 1
D 1550−33−55 Spacer 1
E 1550−90−33 Fowler Engage Label 1
F 1550−90−34 Gatch Engage Label 1
H3−68 Hex Hd. Cap Screw 2
J16−36 Nylock Nut 3
K3−85 Hex Hd. Cap Screw 1
L11−193 Washer 1
M14−62 Plastic Flat Washer 2
N16−35 Nylock Nut 1
P4−108 Hex Hd. Cap Screw 1
T 1710−34−127 Calf Stand Bar 1
V 1001−34−29 Slider Support Ass’y, Left 1
W 1001−34−30 Slider Support Ass’y, Right 1
