Stryker 1550 Service Manual

Control Board
8

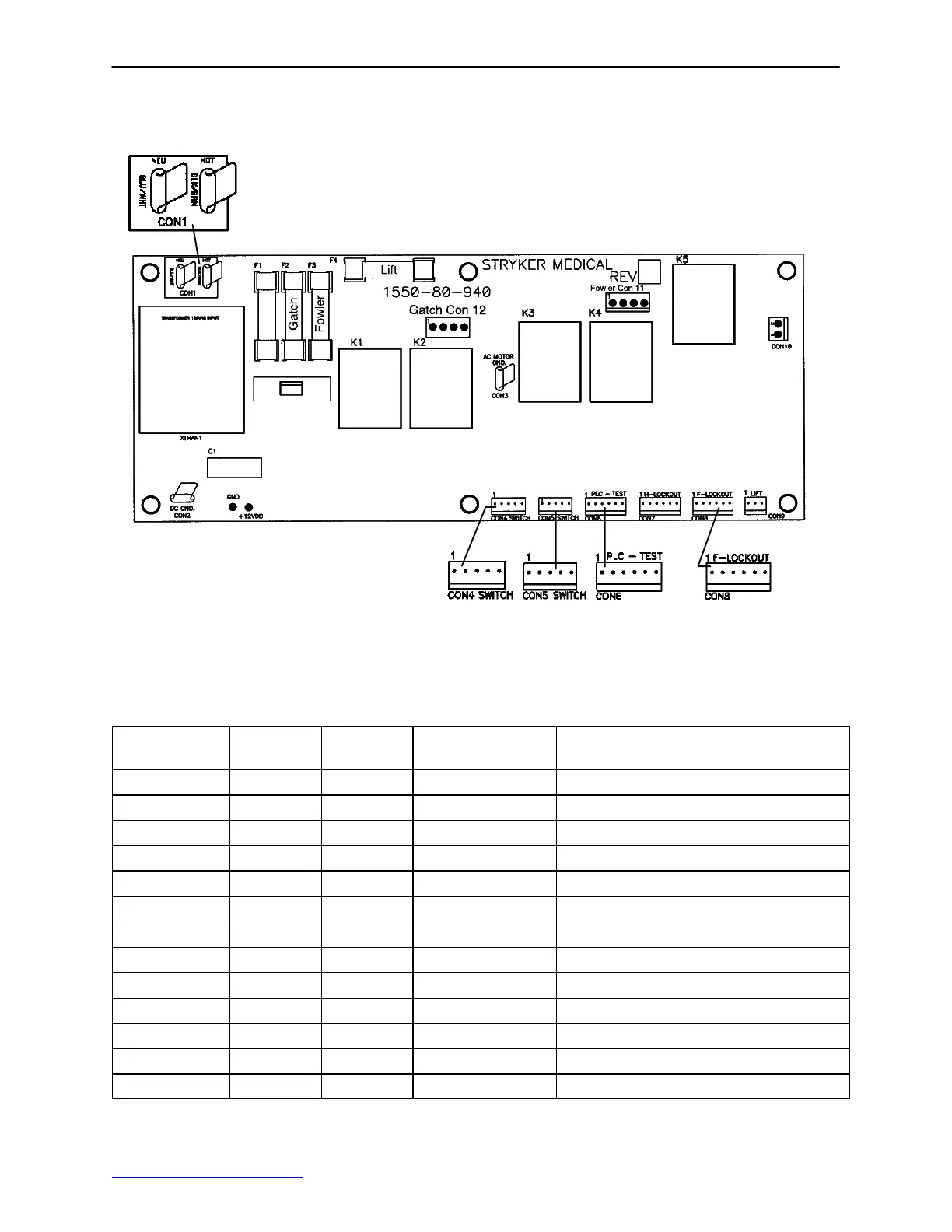

CONTROL BOARD − P/N 1550−80−940
F1 − Fuse 1/10 Amp, 250 VAC, SLO−BLO − Stryker Part Number 2020−16−904
F2 & F3 − Fuse 2 Amp, 250 VAC, SLO−BLO − Stryker Part Number 59−148
F4 − Fuse 7 Amp, 250 VAC, SLO−BLO − Stryker Part Number 59−150
CONNECTOR
LOCATION
VOLTAGE POSITIVE
LEAD
NEGATIVE LEAD DESCRIPTION
CON 1 110 VAC 1 2 Line In
CON 6 12 VDC 1 DC GND (CON 2) DC Supply
CON 8 12 VDC 1 DC GND (CON 2) DC Supply
CON 10 110 VAC 1 2 w/Lift
CON 11 110 VAC 3 1 w/Fowler Down
CON 11 110 VAC 4 1 w/Fowler Up
CON 12 110 VAC 3 1 w/Gatch Up
CON 12 110 VAC 4 1 w/Gatch Down
CON 4 & 5 12 VDC 1 DC GND (CON 2) w/Head & Foot Lockout Switches Off
CON 4 & 5 12 VDC 2 DC GND (CON 2) w/Gatch Down & Lockout Switches Off
CON 4 & 5 12 VDC 3 DC GND (CON 2) w/Gatch Up & Lockout Switches Off
CON 4 & 5 12 VDC 4 DC GND (CON 2) w/Fowler Up & Lockout Switches Off
CON 4 & 5 12 VDC 5 DC GND (CON 2) w/Fowler Down & Lockout Switches Off
