Stryker 1550 Service Manual

Name: Stryker 1550
Brand: Stryker
Rating: 4 (1 reviews)

132 pages

To Next Page

To Previous Page

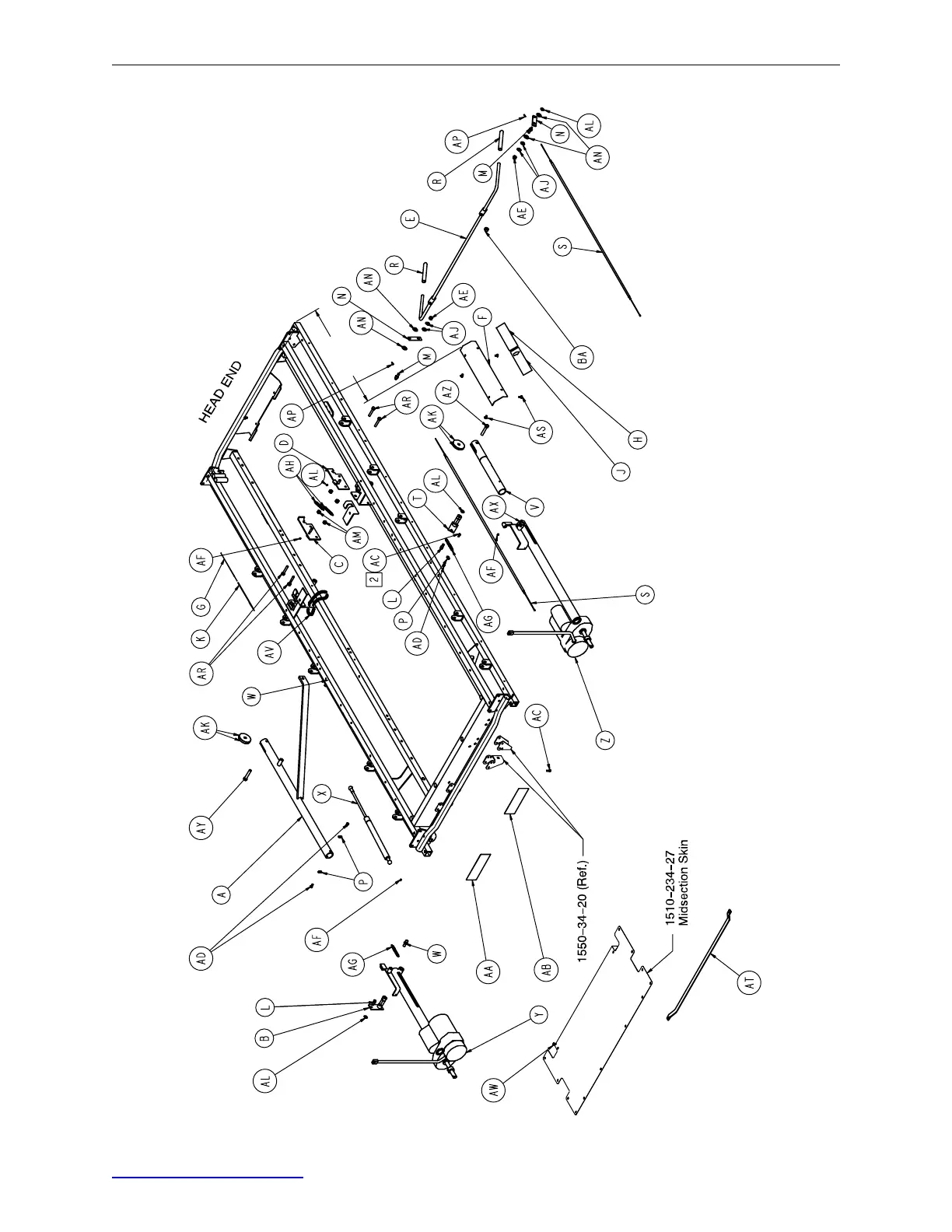

Quick Drop Fowler & Gatch Assembly

Assembly part number

1550−33−42

(reference only)

Return to Table of Contents

Table of Contents3
Introduction5
Specifications5
Stretcher Symbols6
Cleaning7
Checklist8
Control Board Diagram10
Replacement Parts11
Service Information13
Static Discharge Precautions13
Caster Cover Installation and Removal14
Caster Removal14
Brake Cam Replacement15
Brake Ring Replacement15
Fifth Wheel Replacement16
Pedal Linkage Adjustment16
Brake/Steer Gear Replacement17
Uni−Pedal Replacement17
Jack Replacement, Non Electric Lift Base18
Hydraulic Check Valve Replacement − Non Electric Lift Base19
Jack/Motor Replacement, Electric Lift Base21
Jack Assembly Torque Specification22
Checking Hydraulic Fluid Level22
Jack Descent Rate Adjustment23
Removal of Excess Air (Vacuum) from the Hydraulic System23
Hydraulic Pressure Hose Replacement24
Base Lubrication Points25
Brake Adjustment26
Fowler Lift Motor/Actuator Replacement27
Gatch Lift Motor/Actuator Replacement29
Fowler and Knee Gatch Motor/Actuator Adjustment30
Fowler and Knee Gatch Limit Switch Adjustment30
Logic Circuit Board Replacement31
Siderail Latch Adjustment31
Patient Control Lockout Switch Replacement32
Patient Control Lockout LED Replacement32
Siderail Patient Control Replacement33
Electric Lift Base Assembly47
Power Cord Assembly63
Jack/Pump Motor Assembly64
Brake Adjuster Assembly71
Brake Cam Assembly72
Pump Pedal Assembly73
Optional Uni−Lower Pedal Assembly78
Optional Dual Lowering Pedal Assembly79
Optional Side Control Base Assembly80
Base Labeling Assembly82
Litter Assembly84
Siderail Assembly91
Siderail Component Housing Assembly92
Non−Quick Drop Fowler and Gatch Assembly93
Crankscrew Assemblies, Non−Quick Drop94
Quick Drop Assembly, Fowler Only96
Fowler/Gatch Quick Drop Assembly98
Push Handle Assembly100
Removable I.V. Pole Assembly102
Optional 2−Stage I.V. Pole Assembly103
Optional I.V. Pole Latch Assembly105
Optional 3−Stage I.V. Mounting Assembly106
Optional Upright Oxygen Bottle Holder Assembly109
Foot Board/Chartholder Assembly110
Optional Fowler X−Ray Cassette Assembly111
Optional Defibrillator Tray Assembly113
Defib Tray/Foot Extender/Foot Board Assembly114
Serving Tray Assembly115
Foot Board/Serving Tray Holder116
Optional C−Spine Cassette Holder Assembly117
Optional C−Spine Support Pole Assembly118
Optional O2 Bottle Retainer Assembly120
Optional Scale System121
Mattress and Siderail Pads129
Limited Warranty130
Supplemental Warranty Coverage130
Return Authorization131
Freight Damage Claims131
