Stryker 1550 Service Manual

89

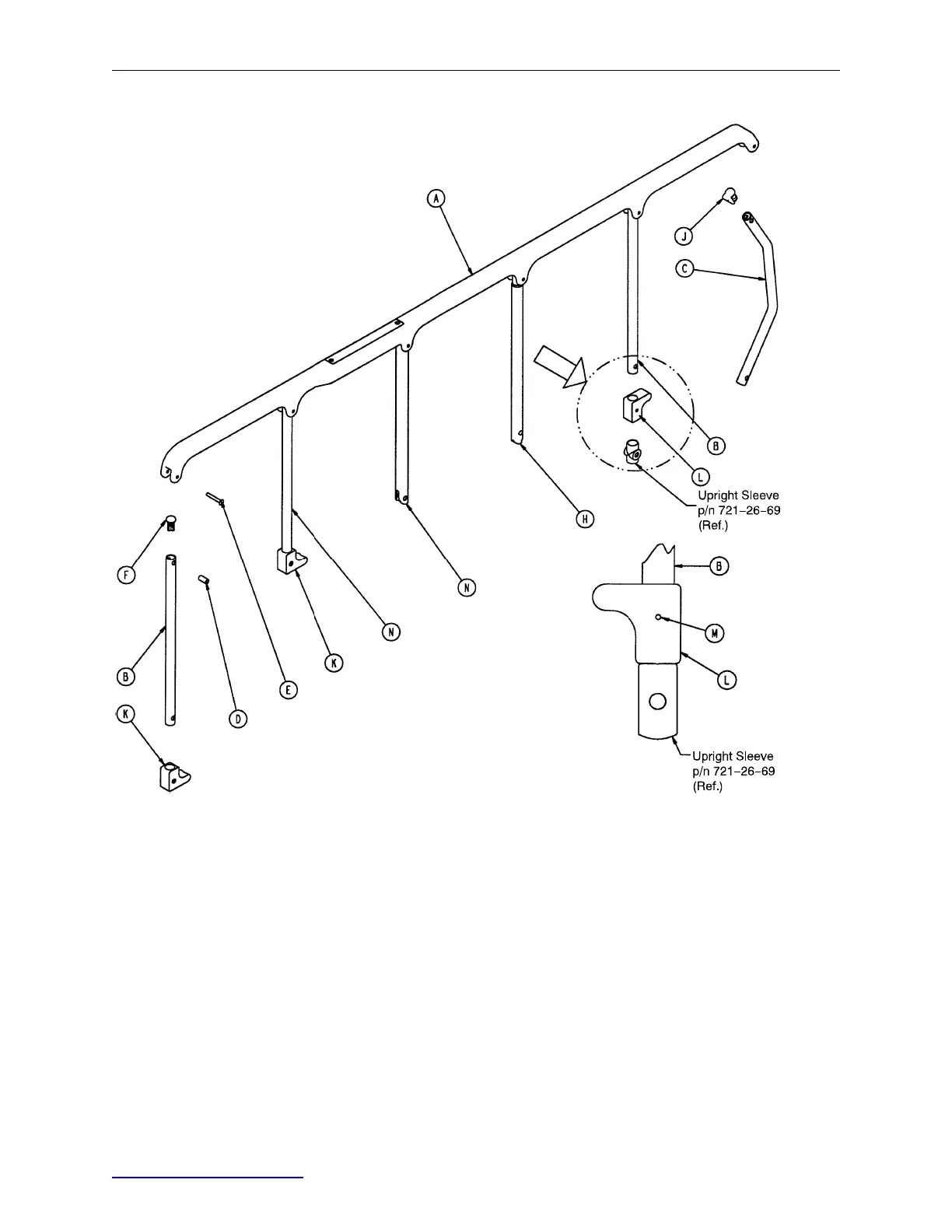

Siderail Assembly, Left & Right
(RIGHT SIDERAIL IS SHOWN)
FOOT END
Assembly part numbers
1550−26−20 (Left) &
1550−26−22 (Right)
See View P
VIEW P
(reference only)
Item Part No. Part Name Qty.
A 1550−26−21 Top Rail, Left 1
1550−26−23 Top Rail, Right 1
B 1010−26−83 Upright 3
C 1010−26−84 Upright, Bent 1
D 1010−26−82 Sleeve Bearing 6
E25−106 Semi−Tubular Rivet 6
F 1010−26−10 Round Hole Plug 3
H 1010−26−85 Upright, Latch 1
J 1010−26−12 Bent Spindle Rest 1
K 1010−95−32 Siderail Rest 2
L 1010−95−22 Bent Rail Rest 1
M25−38 Pop Rivet 1
N 1550−26−19 Oval Upright 1
Return to Table of Contents
