93

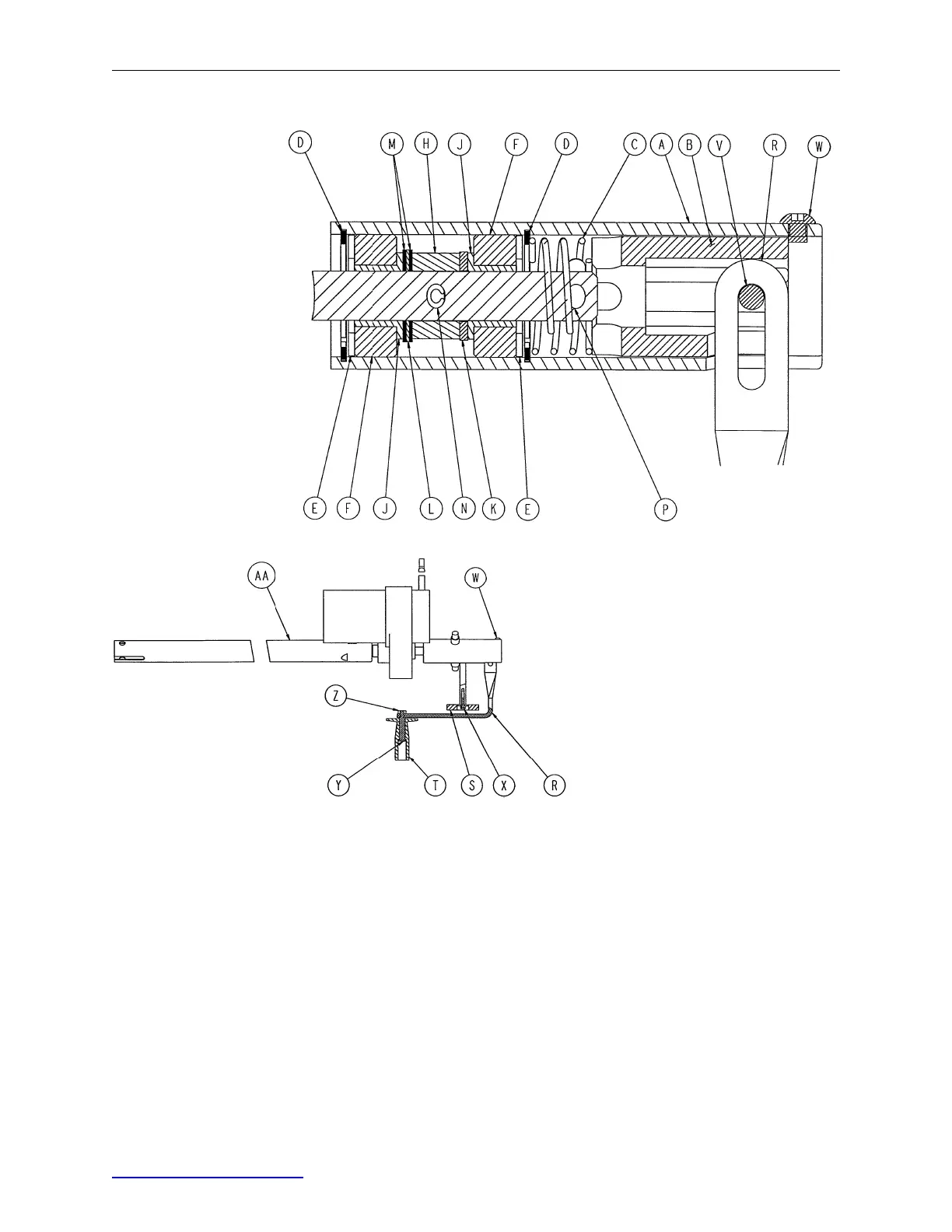

1550−234−5 Gatch Crankscrew Ass’y, Non−Quick Drop
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1550−34−14 Crk/Coupler Hsg. Ass’y, Lt. 1 N 26−149 Roll Pin 1
B 1550−34−1 Crank Coupler 1 P 26−179 Spiral Pin 1
C38−286 Compression Spring 1 R 1550−1−16 Crank Handle 1
D28−299 Snap Ring 2 S 1550−1−14 Magnet 1
E81−174 Washer 2 T 1550−1−19 Crank Knob 1
F 2020−1−529 Nylon Spacer 2 V 26−168 Spiral Pin 1
H 2020−1−532 Bearing Collar 1 W 4−131 But. Hd. Cap Screw 2
J81−213 Bronze Shoulder Bushing 2 X 4−32 Soc. Hd. Cap Screw 1
K11−45 Nylon Washer 1 Y 378−24−29 Shoulder Bolt 1
L81−212 Thrust Bearing 1 Z 16−78 Centerlock Nut 1
M14−44 Steel Thrust Washer 2 AA 1550−234−25 Gat. Act. w/Drive Tube 1
