Stryker 1550 - Page 35

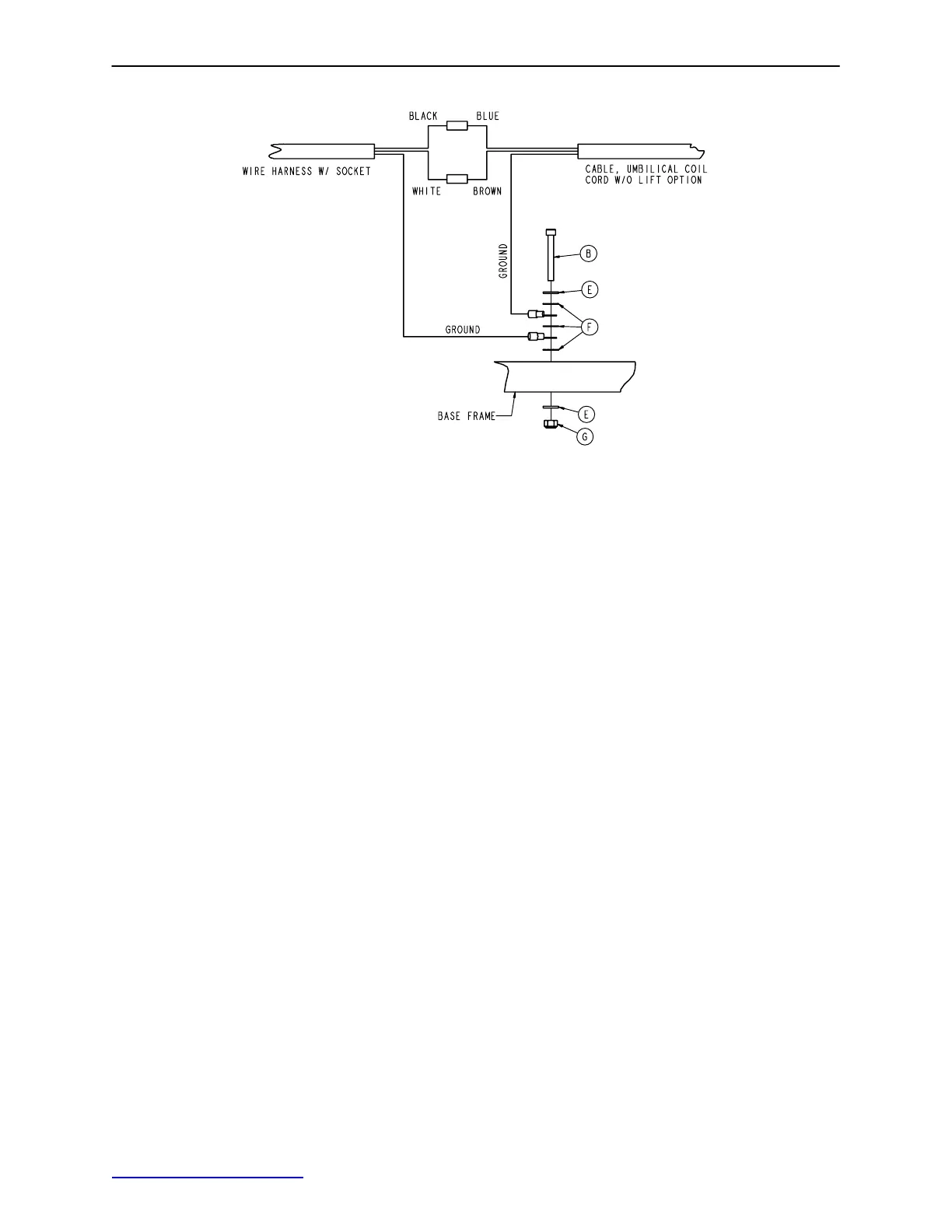

Non−Electric Lift Base Assembly
33
Item Part No. Part Name Qty.
A3−221−0 Hex Washer Head Screw 8
B4−85−0 Socket Head Cap Screw 3
C4−126−0 Button Head Cap Screw 2
D7−35−0 Truss Head Mach Screw 4
E11−1−0 Washer 4
F13−10−0 Washer 3
G16−3−0 Nut 3
H16−23−0 Nut 2
J30−27 Strain Grommet 1
K52−263 Tubular Spacer 4
L55−18−0 Threaded Insert 4
M59−75−0 Cable Tie 5
N59−116−0 PVC Switch Box 1
P59−118−0 Switch Box Cover 1
R 1210−30−210 3−Sided Control Base Assembly1
T 1231−70−10 Jack Assembly 2
U 1550−185−25 Cable 1
V 1550−201−101 Bracket 1
W 1550−201−102 Socket Box Cover 1
X 1550−385−010 Wire Harness w/ Socket 1
