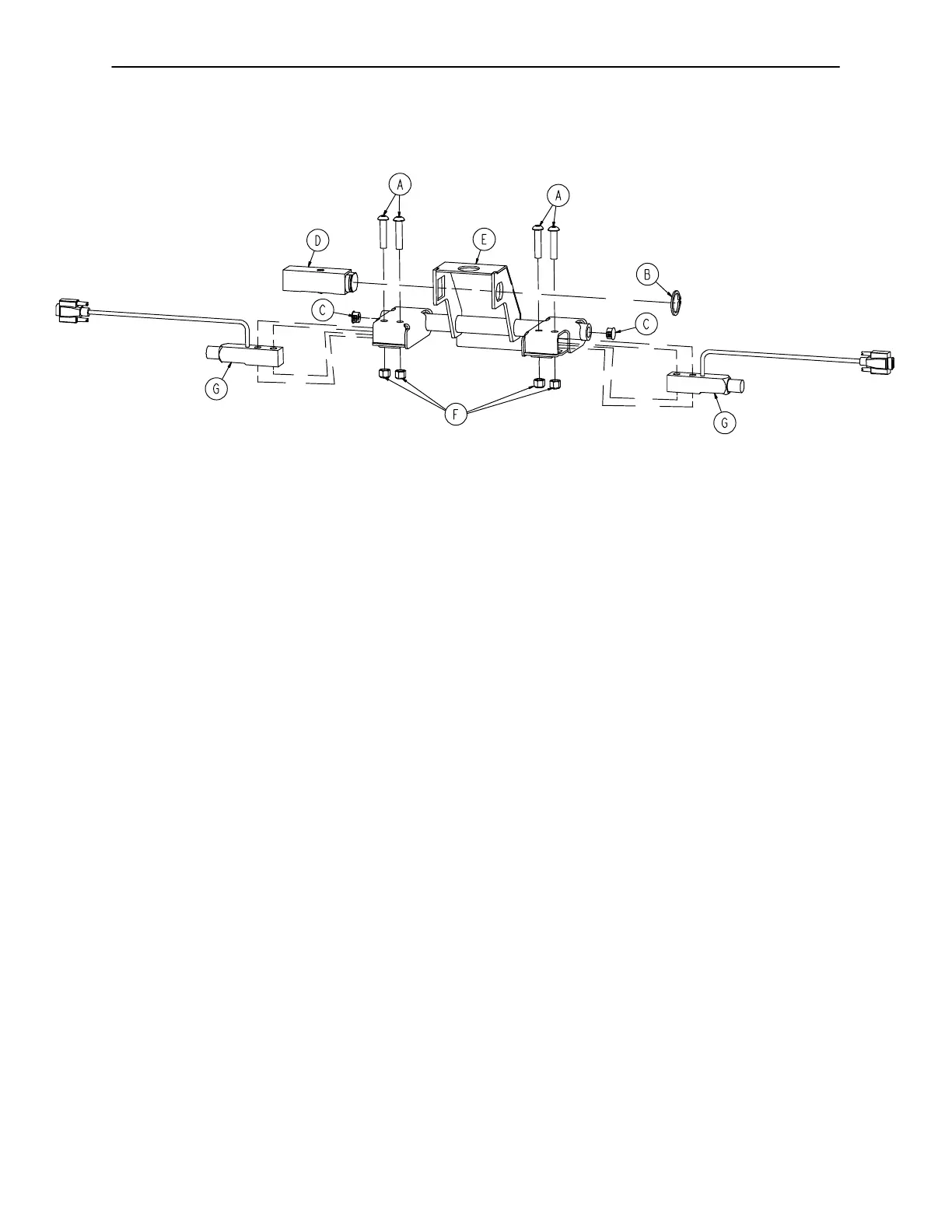

Head End Lift Header Assembly, 26” Litter with Scales
99
Assembly part number 1070−017−100 (reference only)
Item Part No. Part Name Qty.
A 0004−462−000 Button Hd. Cap Screw 4
B 0028−120−000 Retaining Ring 1
C 0037−215−000 Dome Plug 2
D 1070−017−106 Lift Header Supt. Block, Tapered 1
E 1070−017−110 Head End Lift Header, 26” 1
F 0016−035−000 Nylock Nut 4
G 3001−307−057 Load Cell 2
To Next Page
