Stryker InTouch User Manual

Bed Exit
Arm
Disarm
Chaperone
®
Bed
Exit System

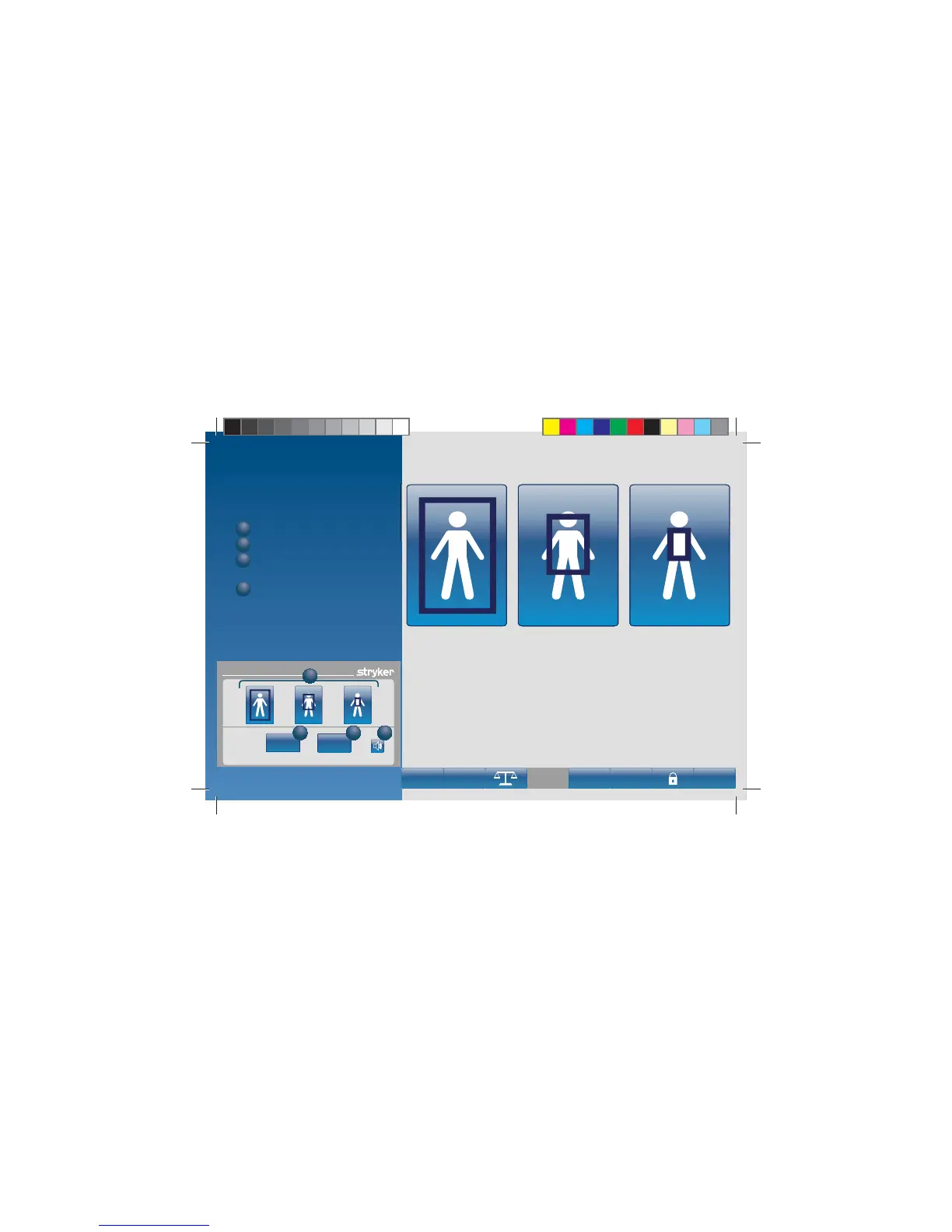

Select desired zone.
Press Arm.
To disengage press
Disarm.
To change alarm tone,
press the speaker icon
located on the touch
screen.
In largest zone,
patient can move
freely on bed, but
alarms when patient
moves 50 percent of
body weight out of
designated area.
Zone 1 Zone 2 Zone 3
Medium zone allows
for limited move-
ment. Alarms when
patient approaches
siderail or moves
toward the foot end.
Smallest zone per-
mits very minimal
movement. Alarms
when patient moves
out of tightly restrict-
ed zone.
1
2 3
3
3
2
2
4
Bed Exit Options iBed
Bed
Controls
Support
Surfaces
Patient
Info
4
1
