Brake Control Panel

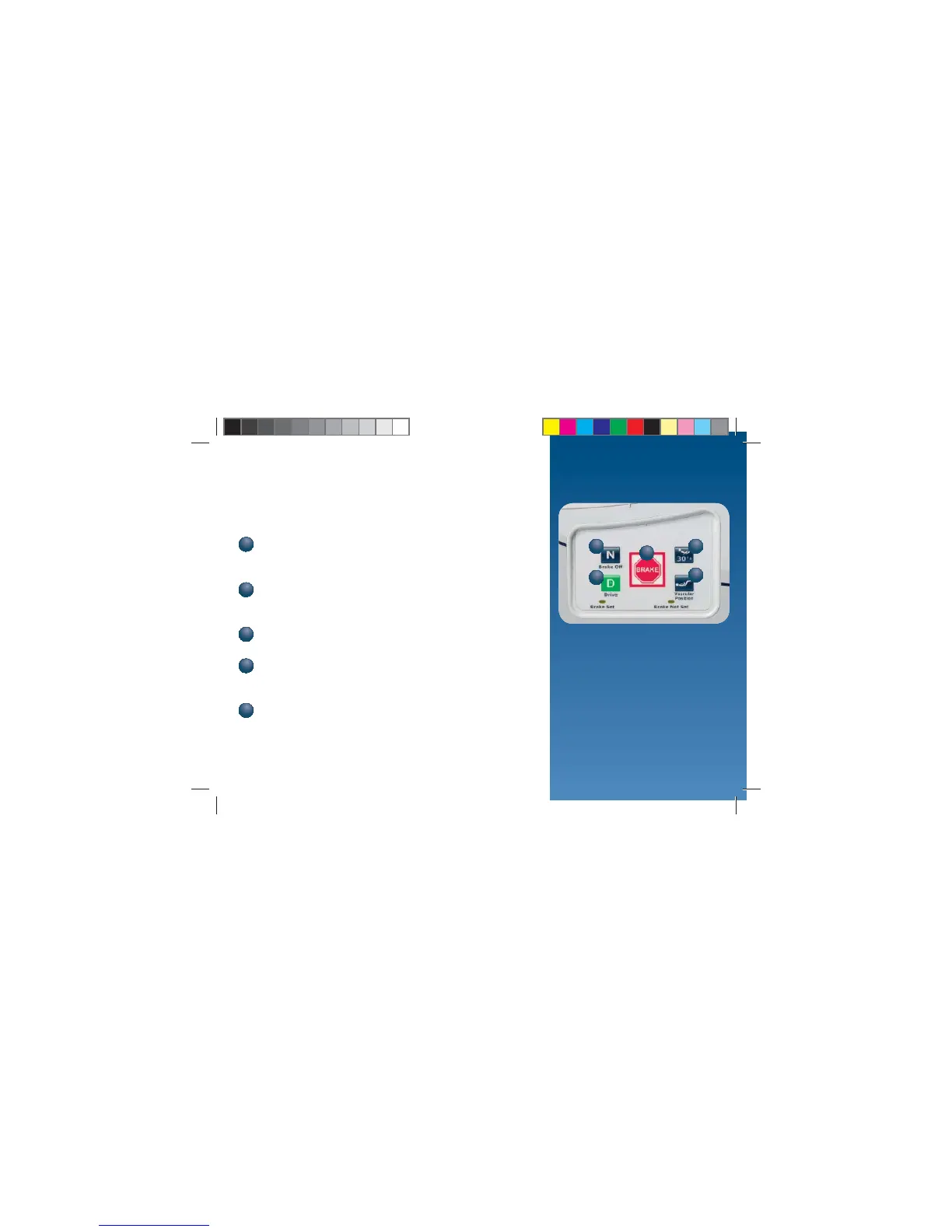

Identical Brake Control Panels are located on siderails and
on the foot end control unit.
Neutral button deactivates brake to move bed
manually.
Drive button activates Zoom Drive System if bed is
unplugged.
Brake button activates electric brake.
Vascular Position brings the HOB to flat position
and raises the knees and feet above the heart.
One-Touch HOB 30 Degree brings the Fowler
angle to 30 degrees even when the bed is in Trendelen-
burg or Reverse Trendelenburg.
