1-16 KK-7100 REV 02 www.stryker.com
Operation
Plugging or unplugging the battery cable
To plug the battery cable into the control box:
1. Remove the upper leg rest cover (A) (Figure 1-3 on
page 1-16).
2. Locate the control box (Figure 1-4 on page 1-16).
3. Connect the battery cable to the control box.
4. Press the battery cable lock to lock the battery cable
into the control box (A) (Figure 1-4 on page 1-16).
A

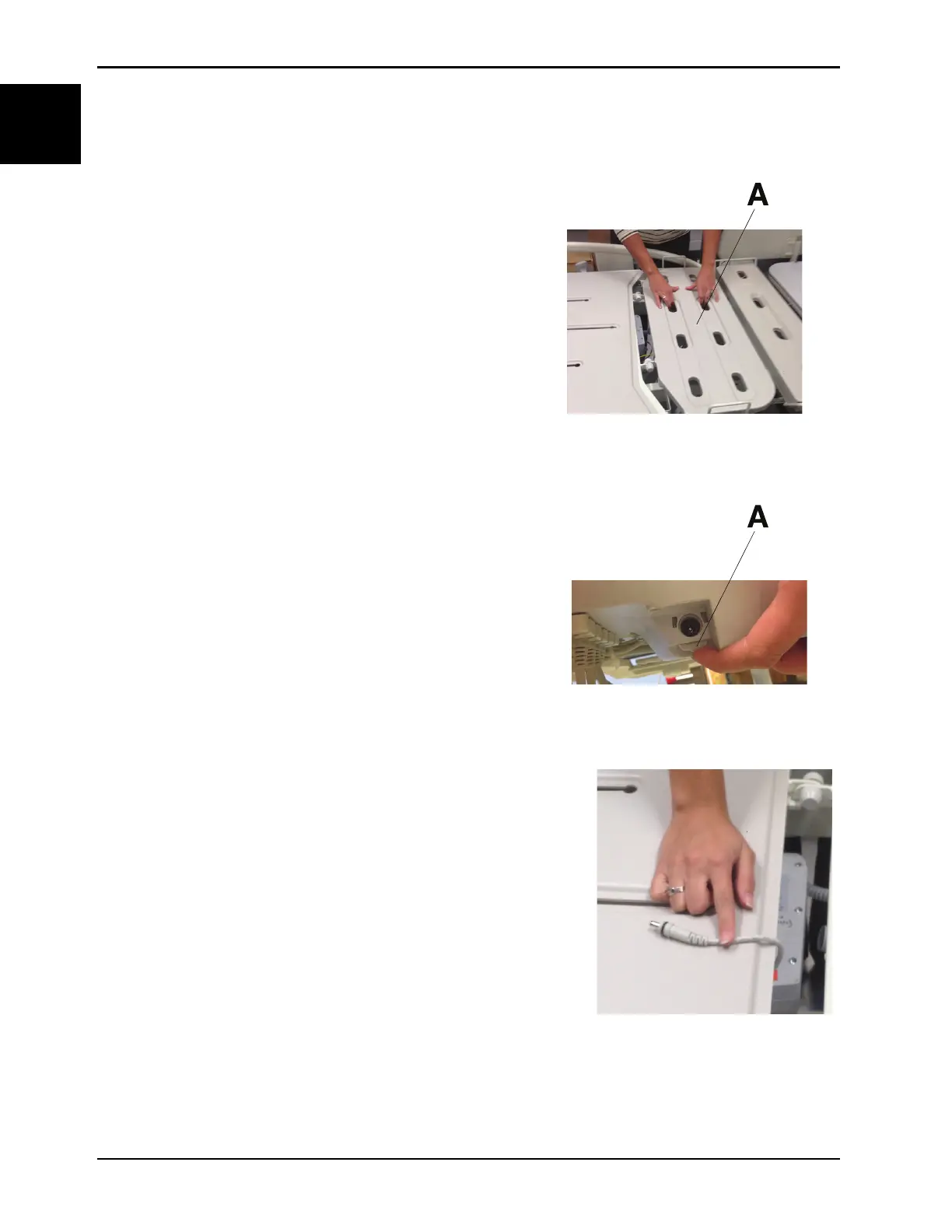

Figure 1-3: Removing the upper leg rest cover
To unplug the battery cable from the control box:
1. Remove the upper leg rest cover (A) (Figure 1-3 on
page 1-16).
2. Locate the control box (Figure 1-4 on page 1-16).
3. Unlock the battery control cable to the control box (A)
(Figure 1-4 on page 1-16).
4. Disconnect the battery from the control box.
5. Using tape, secure the battery cable lock to the litter
frame (Figure 1-5 on page 1-16).
A
Figure 1-4: Locking or unlocking the battery cable
Figure 1-5: Unplugging the battery cable from the
control box
