Pedalboard Mounting Instructions
Conduit features built-in threaded hardware for easy mounting on the
top or bottom of most pedalboards.
DRILL TEMPLATE
HOLE LOCATIONS
#4 SCREWS
Choose your MOUNTING location
Tape the Drill Template (included and available for download at
strymon.net/support) logo side up in the location you want to
install your Conduit.

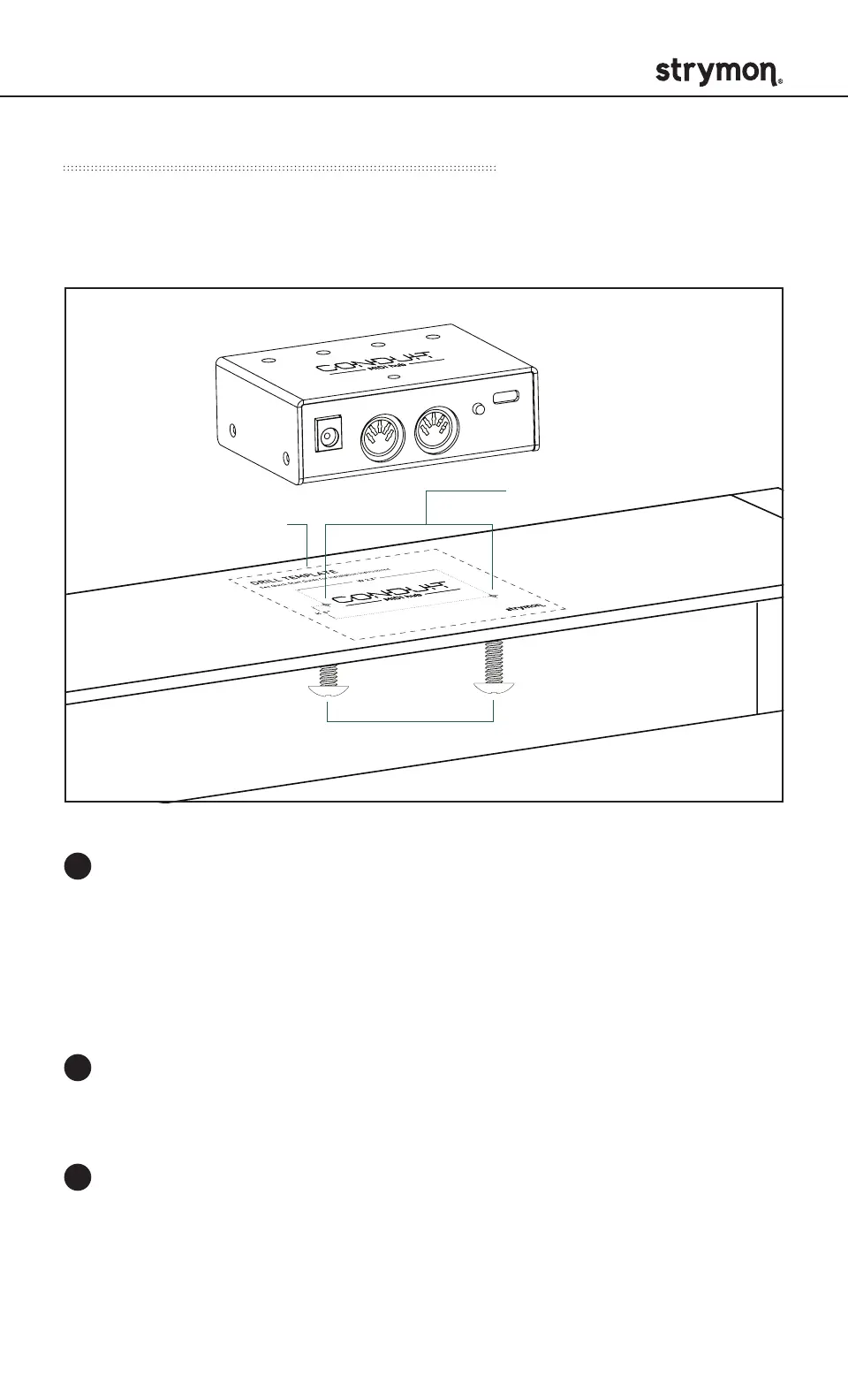

This illustration shows mounting on the top of your pedalboard.
Drill holes
Drill through the two marked hole locations with a 1/8" (3mm) bit.
Attach Conduit
Place Conduit over the holes. Install from the reverse side of your
pedalboard using #4-40 3/8” screws (included).
1
2
3
