Strymon CONDUIT User Manual

Conduit - MIDI Hub
pg 13
NOTE: All 1/4" MIDI enabled Strymon pedals receive MIDI from the
Tip of a TRS connection. If you are using non-Strymon pedals, visit
strymon.net/support/conduit to confirm that the pedals used with
the Tip and Ring Send jack configuration receive MIDI at the Tip of
a 1/4" cables.
Connections – Connecting Two Pedals to a Single 1/4"
TRS Jack

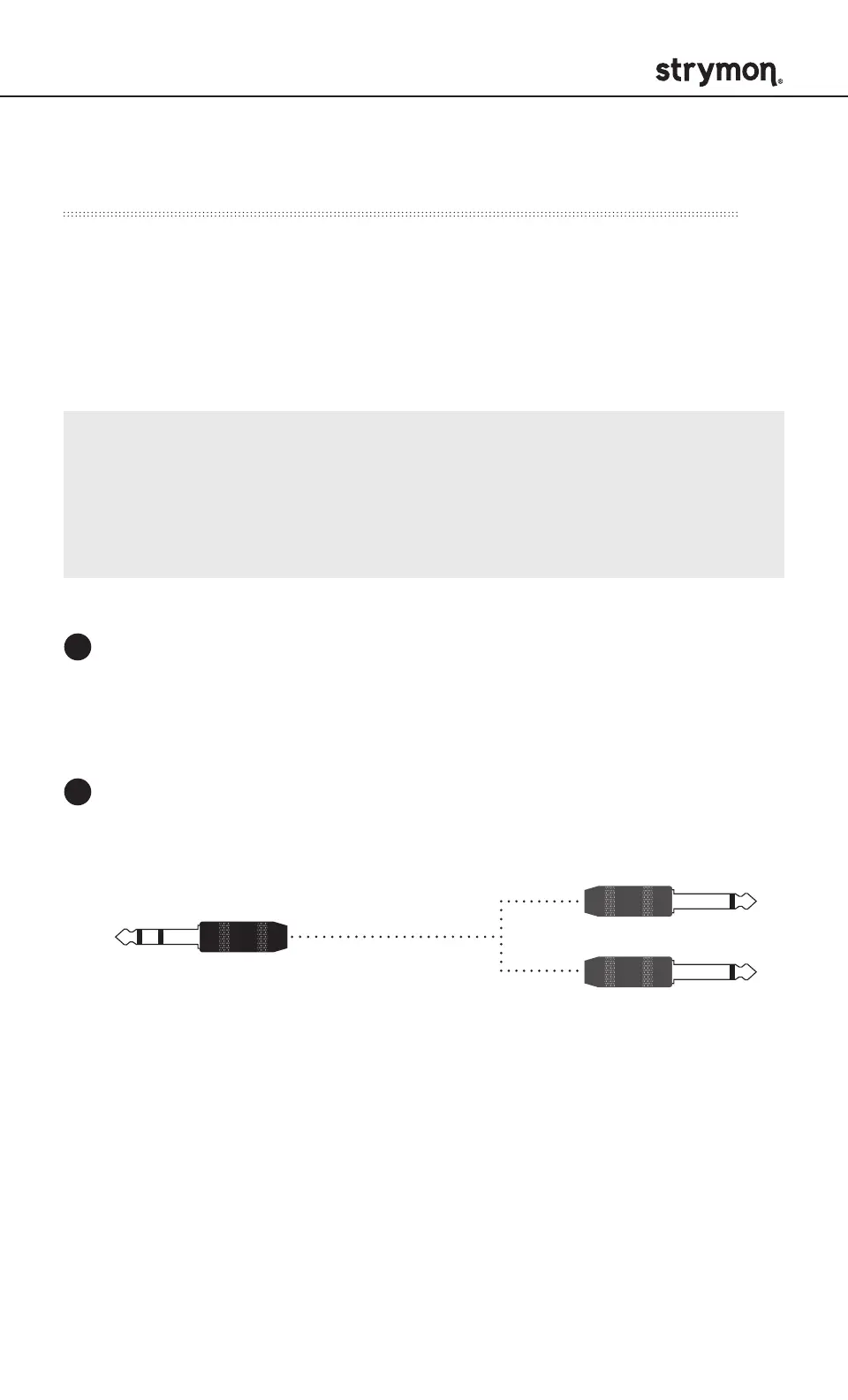

The Tip and Ring Send jack configuration can be used in conjunction
with a TRS splitter cable (not included) to send MIDI data to the Tip of
two 1/4" cables. This TRS jack configuration can be used to control two
pedals that receive MIDI at the Tip of a TRS connection from a single
1/4" TRS jack on Conduit.
Configure the desired 1/4" TRS jack for Tip and Ring Send
(AMBER jack LED) jack configuration.
(See page 7 for details.)
Connect the TRS end of a TRS splitter cable (not included) to the
jack set to Tip and Ring Send jack configuration.
1
2
