Strymon CONDUIT User Manual

Conduit - MIDI Hub
pg 20
Appendix 1: Standalone - Cable Connections

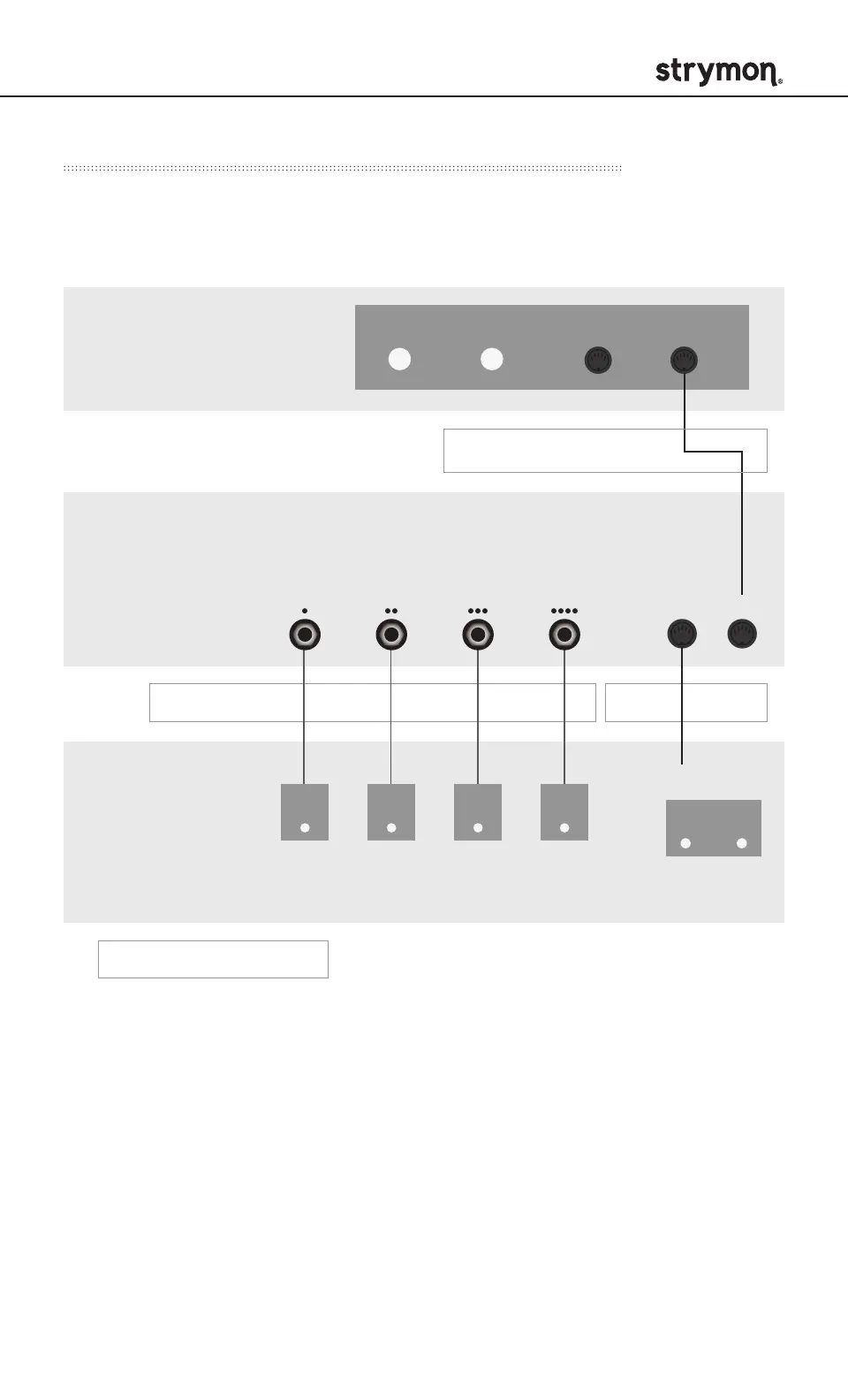

The diagram below illustrates the cable connections when using
Conduit as a MIDI distribution box without a USB connection.
E
CONDUIT
Sends MIDI data from controller to pedals and receives
MIDI data from capable pedals connected to the TRS jacks
MIDI CONTROLLER
Sends MIDI data to Conduit
DIN MIDI IN
PEDALS
All connected pedals
receive MIDI data
from Conduit.
Capable pedals also
send MIDI data to
Conduit.
D
CBA
MIDI
IN
MIDI
CABLE*
TRS
CABLES
MIDI CONTROLLER
MIDI OUT
MIDI IN
MIDI
CABLE*
MIDI IN
MIDI OUT
*NOTE: MIDI cables not included.
