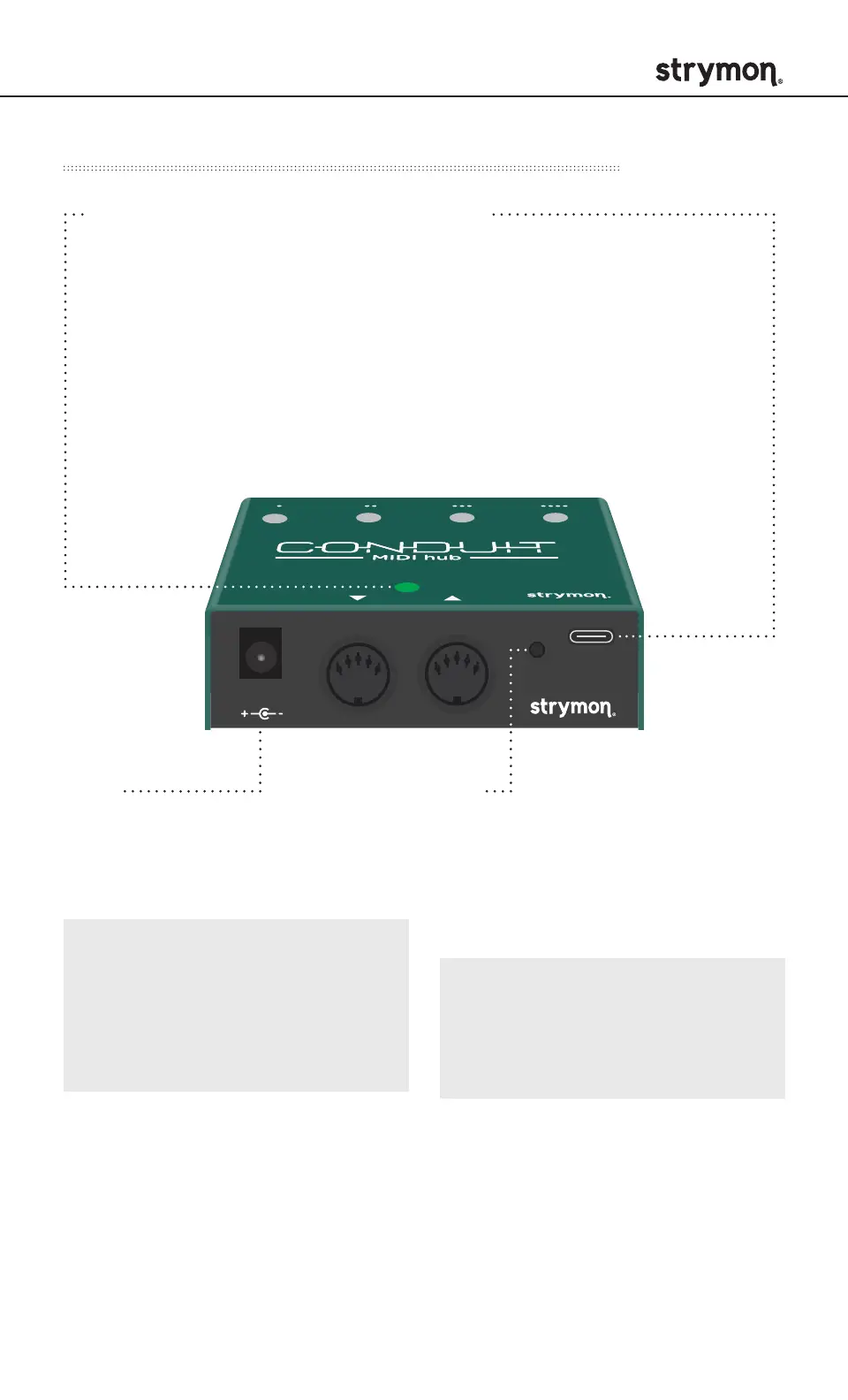

Controls and Connections – Front Panel (cont.)
9VDC
MIDI OUT MIDI IN
USB
SET
SET
At startup, button can be used
for setting TRS MIDI I/O jack
configuration.
(See page 7 for details.)
USB
Used for computer
connectivity. Remove USB
connection when sending MIDI
data to the DIN MIDI IN port to
be distributed to the 1/4" TRS
jacks.
(See page 15 for details.)
9VDC
Use an adapter with the following
rating: 9VDC center negative,
50mA minimum.
STATUS LED for MIDI IN/OUT
Ports
Status LED lights up GREEN
to indicate Conduit is powered
on and will flash AMBER when
MIDI data is passing through
Conduit to the 1/4" TRS jacks.
NOTE: The SET button can be
pressed at any time to show
the configuration state of all
1/4" TRS jacks.
NOTE: Power supply is not
required when powered by
USB. The 9V can remain
connected without drawing
additional power.
