Stûv 30-compact - installation [en] - 01/13

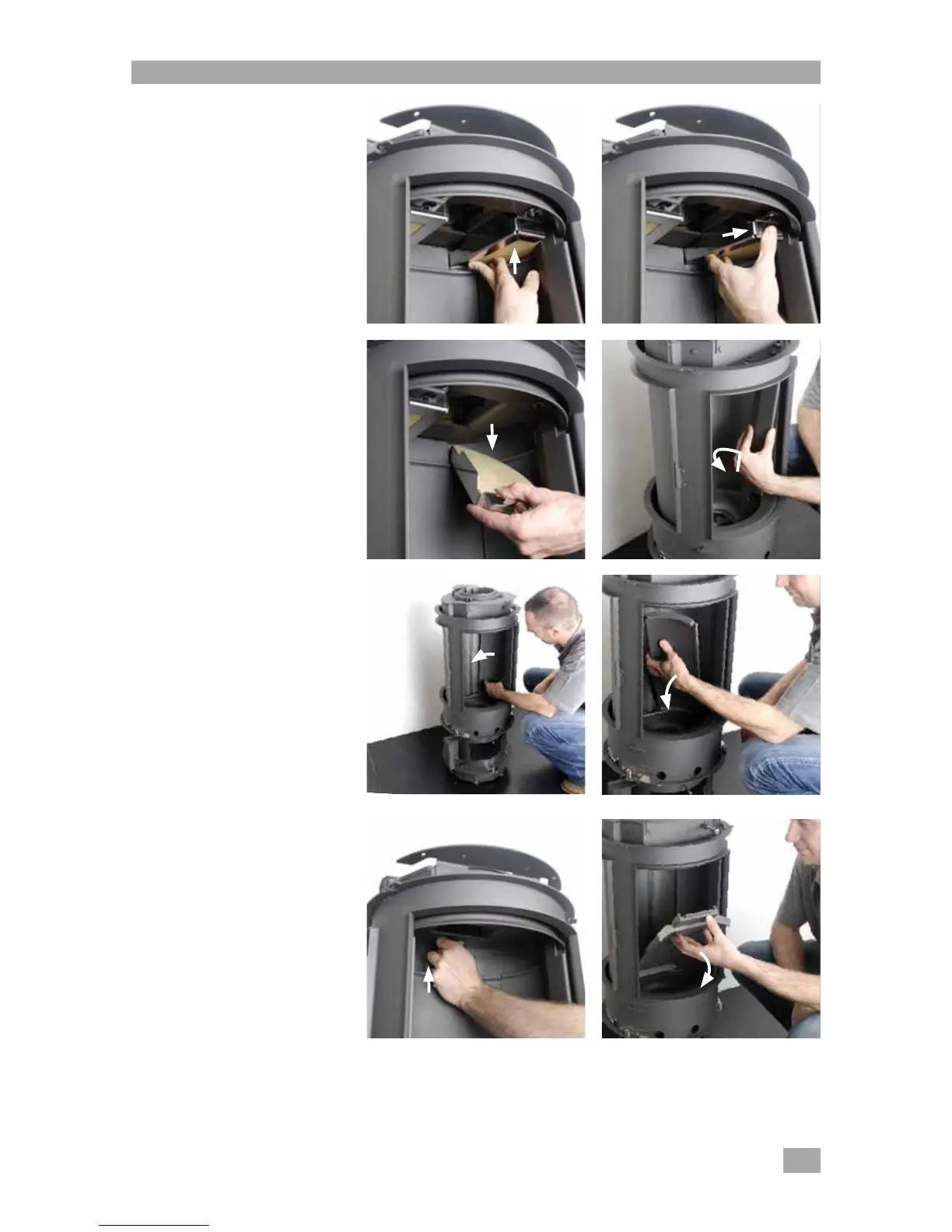

Unpacking the interior parts of the stove (continued)
> the 2 vermiculite deflectors : lift up
the stainless steel support [photo 7]
and slide it forwards [photo 8] then let
the part drop to remove it [photo 9].
> the lateral holders : before removing
the lateral holders, first remove the
lateral keys : lift them up and bring the
bottom of the parts forward
[photo 10].
To remove the lateral holders ; slide
them to the back, [photo 11], tilt
them and take them out [photo 12].
> the back holder : remove the
pressure screw keeping the deflector
cradle in place [photo 13] and pull the
back holder forwards [photo 14]. Tilt
it towards the stove opening.
