Final positioning of the stove
Connection with outside air
Please note ! Do not forget to put
the hand-lift truck protection back on
before moving the stove !
The stove can now be moved to its
final position : tilt the stove onto its
front.
Note : remember to put a soft
protective cloth between the drum
ring and the hand-lift truck.
If you are not connecting your stove
to the outside air, go to the next
section.
If the air connection comes from
the ground :

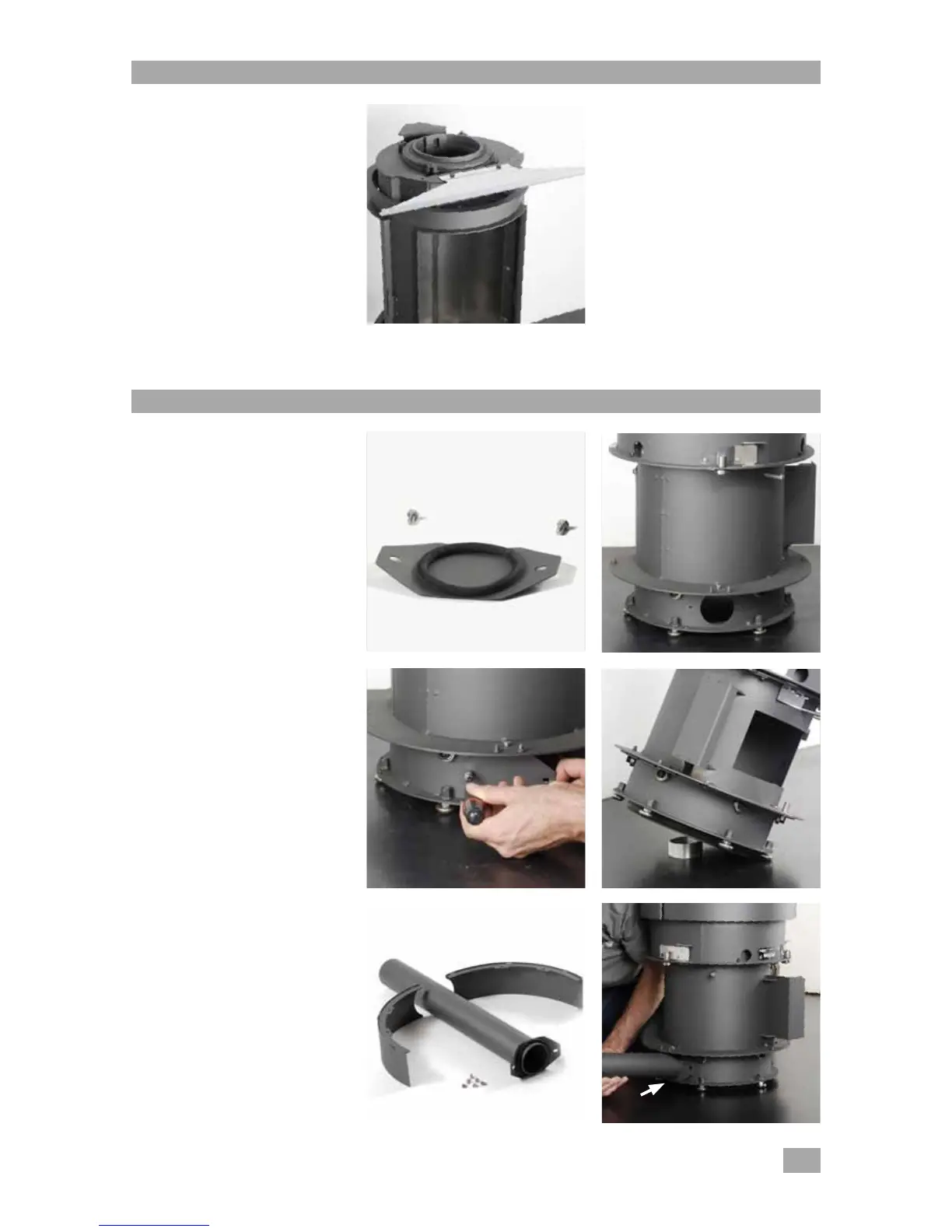

> Fix the filling plate (with an 8mm
flat spanner and 2 M5x8 hexagonal
head screws) [photos 1 to 4] :
> Position the stove over the outside
air inlet.
> Check that the joint is fully airtight
in relation to the floor.
If the air connection comes from
the wall :
> Find the "rear outside air inlet" kit
[photo 5].
> Make sure the duct is the desired
length bearing in mind the maximum
length of the standard Stûv inlet duct
is 50cm. Cut it if necessary.
> Connect the flue to the back of the
stove (using 2 M5x6 hexagonal head
screws and a size 8 spanner)
[photo 6].
