Stûv 30-compact - installation [en] - 01/13
Removing the exterior parts of the stove
To make the stove lighter, easier to
handle and to avoid damaging the
mobile parts, we strongly recommend
that you unpack the Stûv 30-compact
and remove the contents from the
combustion chamber before starting
the actual installation.

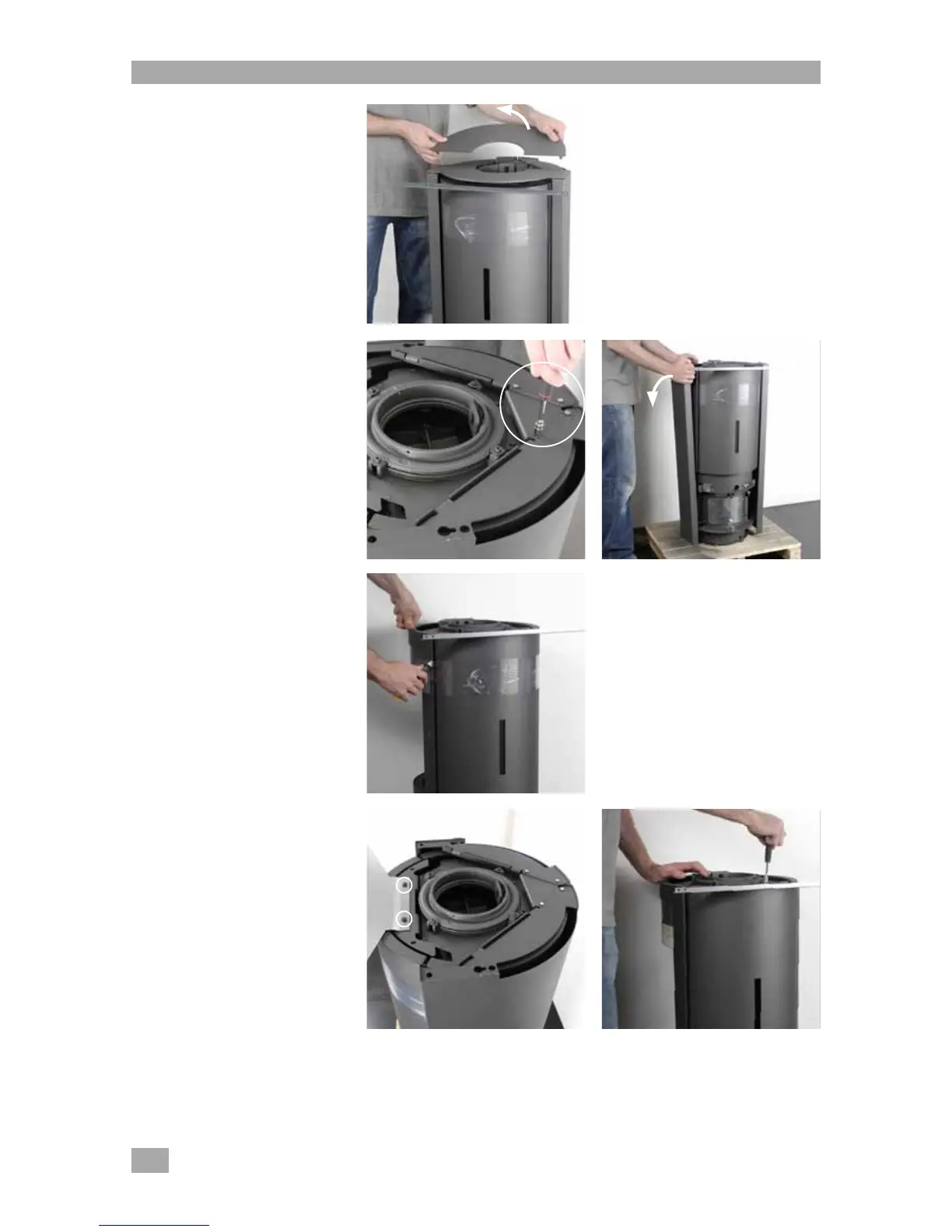

> Remove the 2 plates on the top of
the stove :
on the Stûv 30-compact simply
remove the one at the back and then
the one at the front [photo 1].
> Remove the side panels using a
size10 socket wrench
[photos 2 and 3].
> Carefully cut the plastic film
holding the doors. Do not tear this
film off ! One of the ends of this film is
stuck between the solid door and the
body of the stove. Unlock and open
the door using the cold grip to release
it [photo 4].
> Remove the hand-lift truck
protection :
– open the door and undo the two
nuts and bolts (M6x12 hexagonal
heads) holding the hand-lift truck
protection in place [photo 5 and 6].
– pick up the 2 nuts and close the
door.
