Stuv 30 Compact - Dimensions

5
SN 94770 - ...
330
471 18413
465
447
232
≥ 100*
≥ 100*
Ø 150
1040
60
≥800*
≥ 100*
120°
a
b
Stûv 30-compact
Stûv 30-compact - installation [en] - 01/13

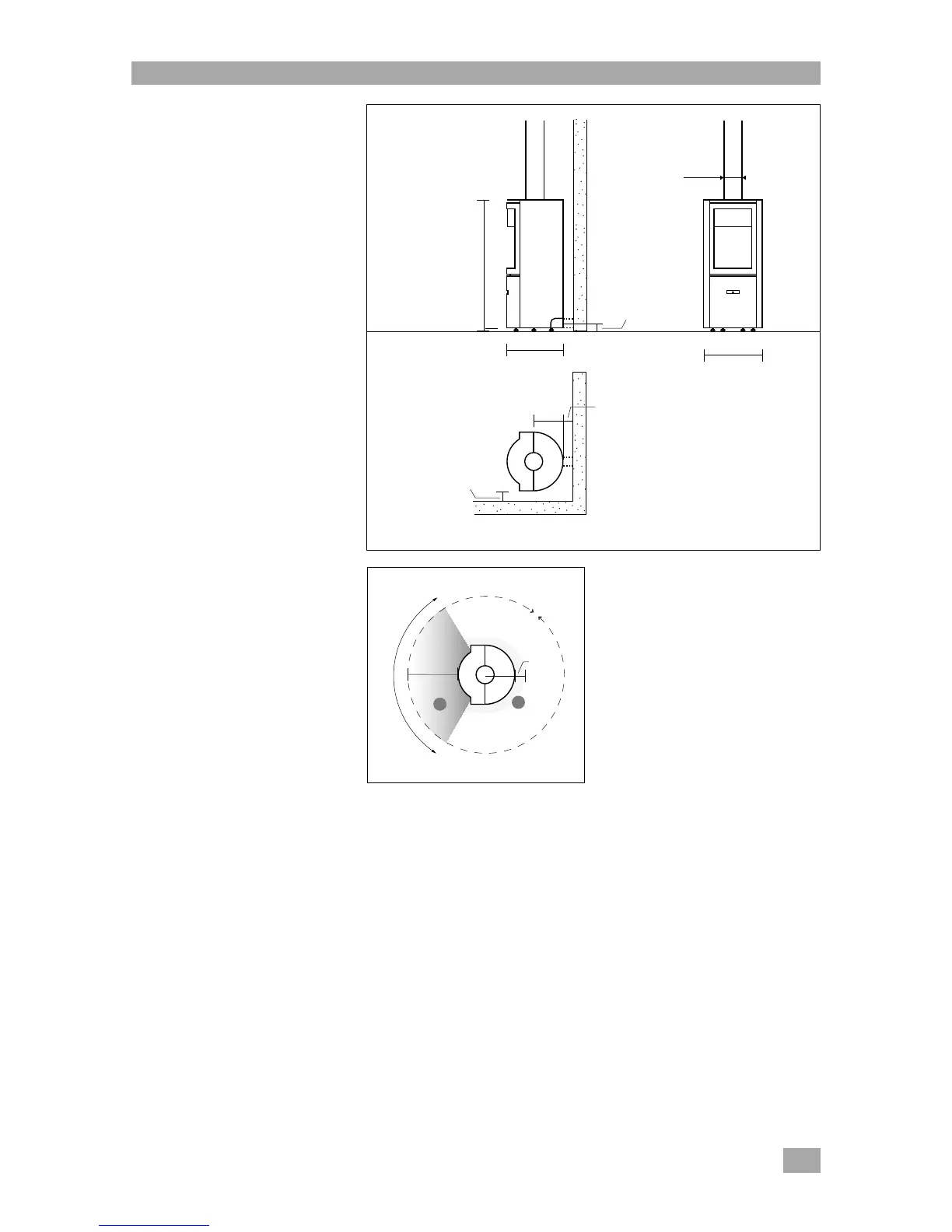

Dimensions
* safe distances from combustible
materials
The radiation from the glass door
[diagram 1/a] and from the sides
of the stove [diagram 1/b] can be
considerable.
Whatever the direction of the rotating
stove, ensure safe distances from
combustible materials are maintained.
