Stûv 30-compact - installation [en] - 01/13

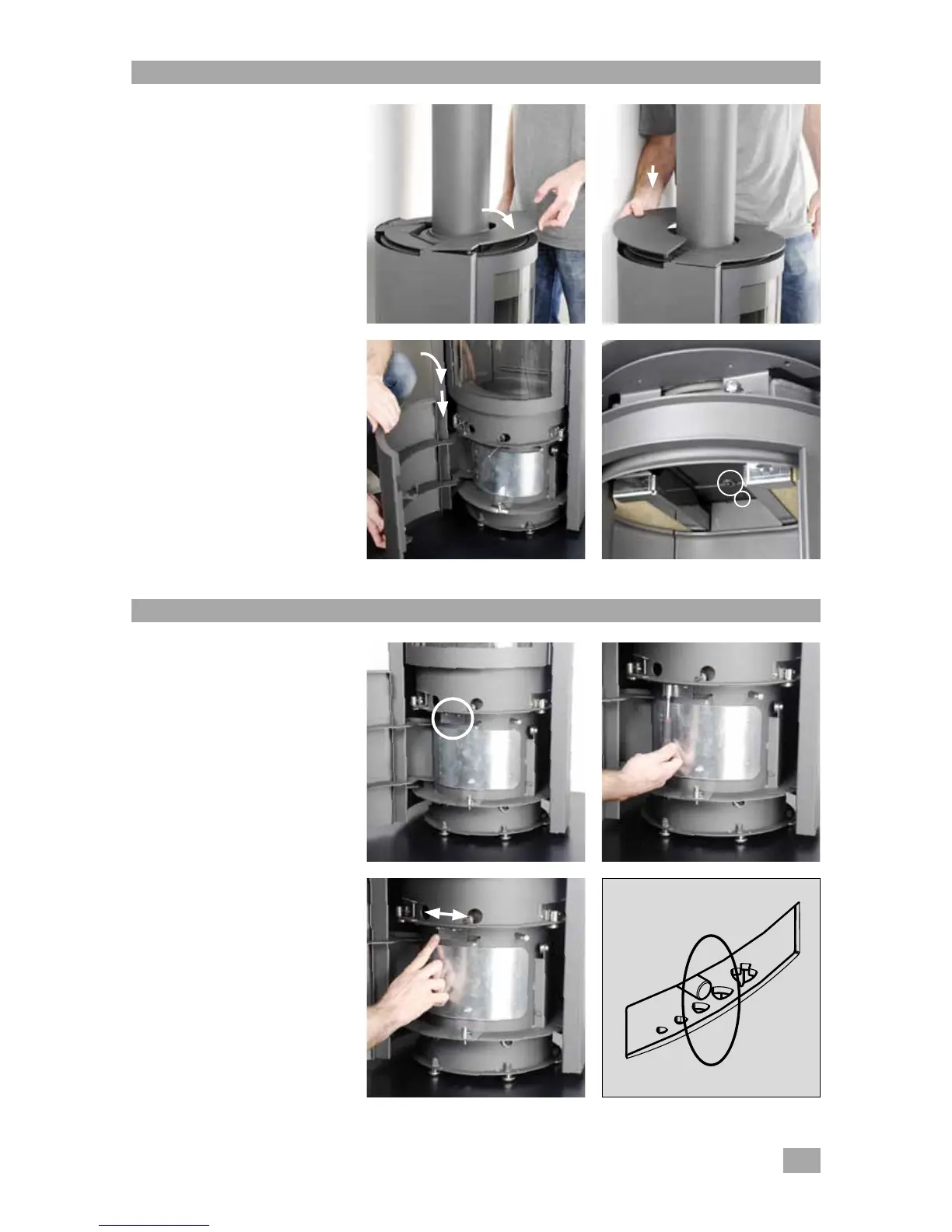

Final assembly (continued)
Adjusting the minimum valve opening stop
> the 2 upper plates : clip the front
part of the plate into place [photo 9].
Then place the rear part of the plate in
position [photo 10].
> the ash pan door [photo 11].
Please note ! Check that the blocking
screws in the combustion chamber for
transportation purposes have been
removed [photo 12].
Depending on the draw of the flue,
the minimum valve opening stop
[photo 1] can be adjusted.
> undo the screws (using a size 10
screwdriver) that hold the stop
[photo 2].
> if the draw is strong, slide the stop
further to the left [photo 3]. The valve
can be set in position zero (all the way
to the left) ; it prevents any air being
drawn into the combustion chamber.
> if the draw is weaker, slide the stop
slightly to the right [photo 3].
This adjustment ensures two things :
– prevents risk of explosion,
– keeps the glass door clean.
ATTENTION !
In smoke control areas The air control
stop must be set so that it cannot be
closed beyond the position between 3
and 4.[diagram 4]
