Stûv 30-compact - installation [en] - 01/13

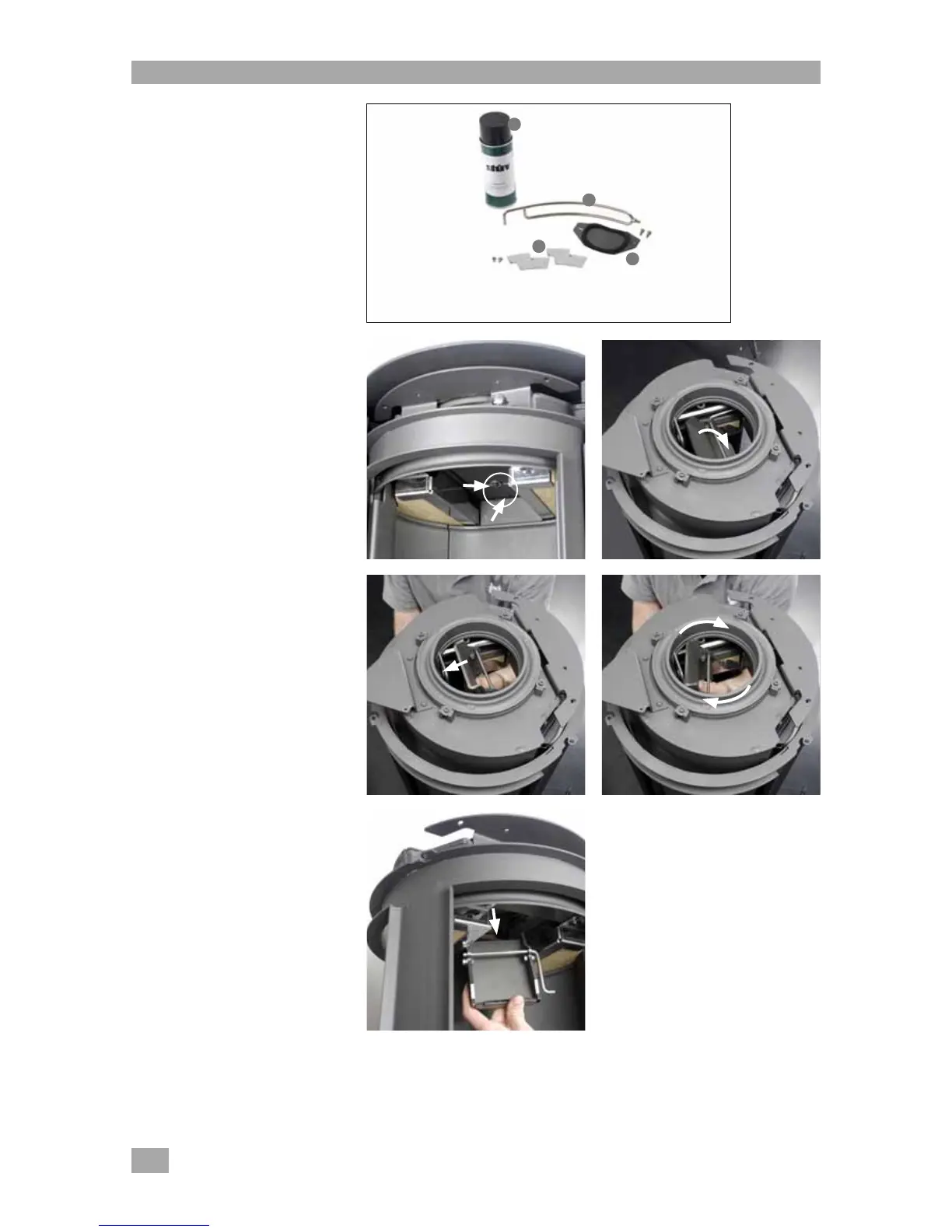

Unpacking the interior components of the stove
Checking the contents of the
combustion chamber [photo 1]
You will find :
– spray paint for touching up
[photo 1/a]
– cold grip to handle the door and the
valve [photo 1/b]
– 2 rotation stops and 2 M5x6 screws
[photo 1/c]
– a sealing plate and 2 M5x8 screws
[photo 1/d]
– installation instructions
– instructions for use
Note !
When you handle symmetrical parts
while dismantling, remember to take
note of which are the left parts and
which are the right ones ! It will make
re-assembly easier.
Removal of the following parts
> the smoke deflector :
the smoke deflector has been locked
down to prevent damage during
transport. Remove the two blocking
screws from the inside [photo 2].
Tilt and gently slide the smoke
deflector towards the back
[photos 3 and 4]. Turn it clockwise to
release the deflector and its control
[photo 5]. Let the deflector drop
down [photo 6].
