Stûv 30-compact - installation [en] - 01/13
If you have dismantled your
stove, re-assemble the following
parts :
– the smoke deflector cradle
– the stove hearth holder
– the lower protection strut
– the ash grille
– the back holder
– the lateral holders
– the lateral keys
– the 2 vermiculite deflectors
– the smoke deflector
Follow the reverse of the dismantling
steps ! (see pages 12 to 16)
Please note ! Do not mix up the left
and right symmetrical parts.

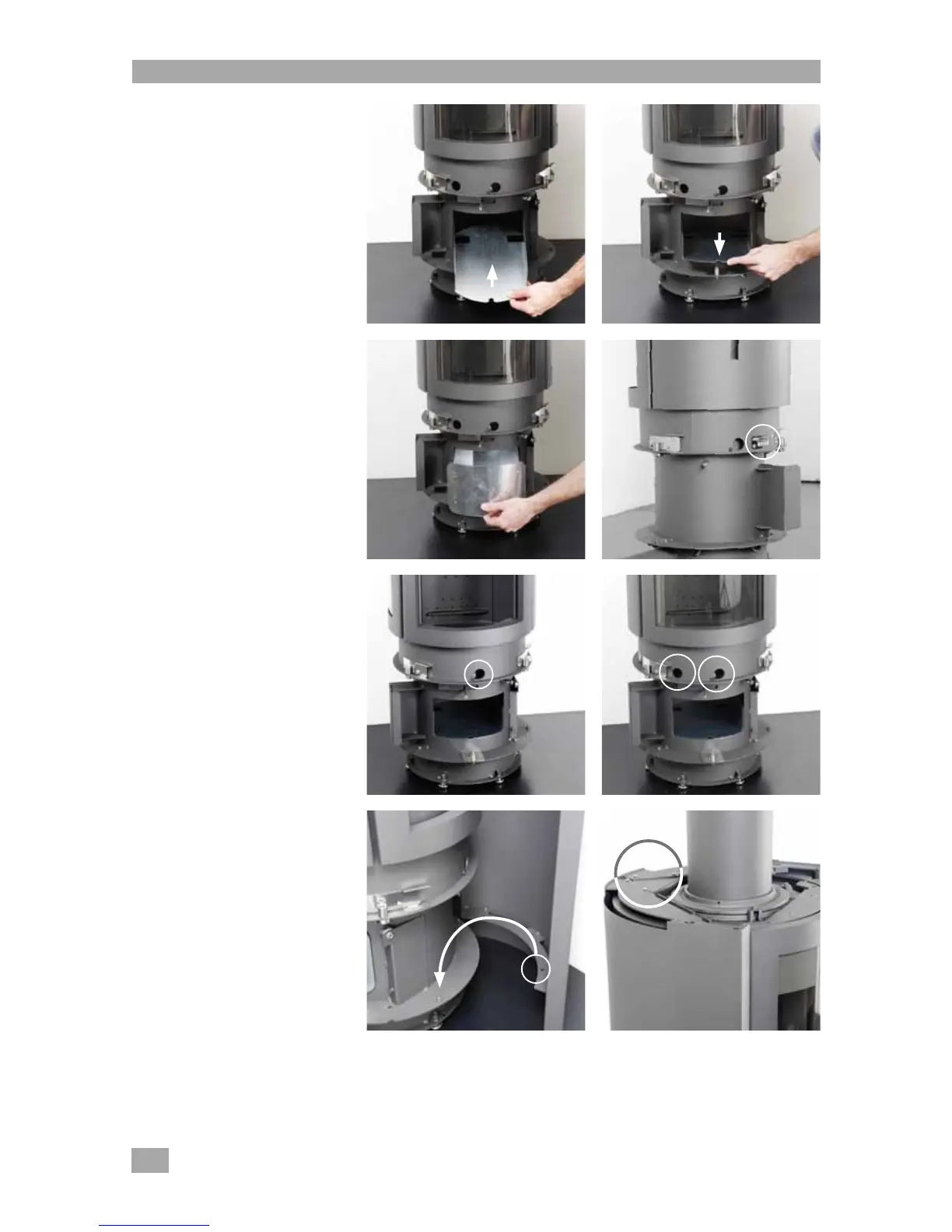

Put the last parts back in place :
> the ash pan support, insert it right
to the back of the stove. Press down
at the front of the ash pan support so
that it slots properly into place
[photo 1 and 2].
> the ash pan [photo 3],
> the doors ; be careful to get the
doors the right way around :
– the metal door is positioned above
the fascia where the serial number
is displayed, at the bottom of the
drum [photo 4],
– the strip door is positioned above
the fascia with only one hole in it
[photo 5],
– the glass door is positioned above
the fascia with two holes in it
[photo 6].
> the panels : position the lower
part by placing the holes over the
positioning cones [photo 7].
Then fix the upper part of the panels
by screwing them into place (using 4
M5x8 hexagonal head screws)
[photo 8].
Final assembly
