Stûv 30-compact - installation [en] - 01/13
Before you start, make sure that the
floor covering is flat and clean.
If the floor covering is not level, you
will have to take steps to ensure that
the lower joint is perfectly airtight.

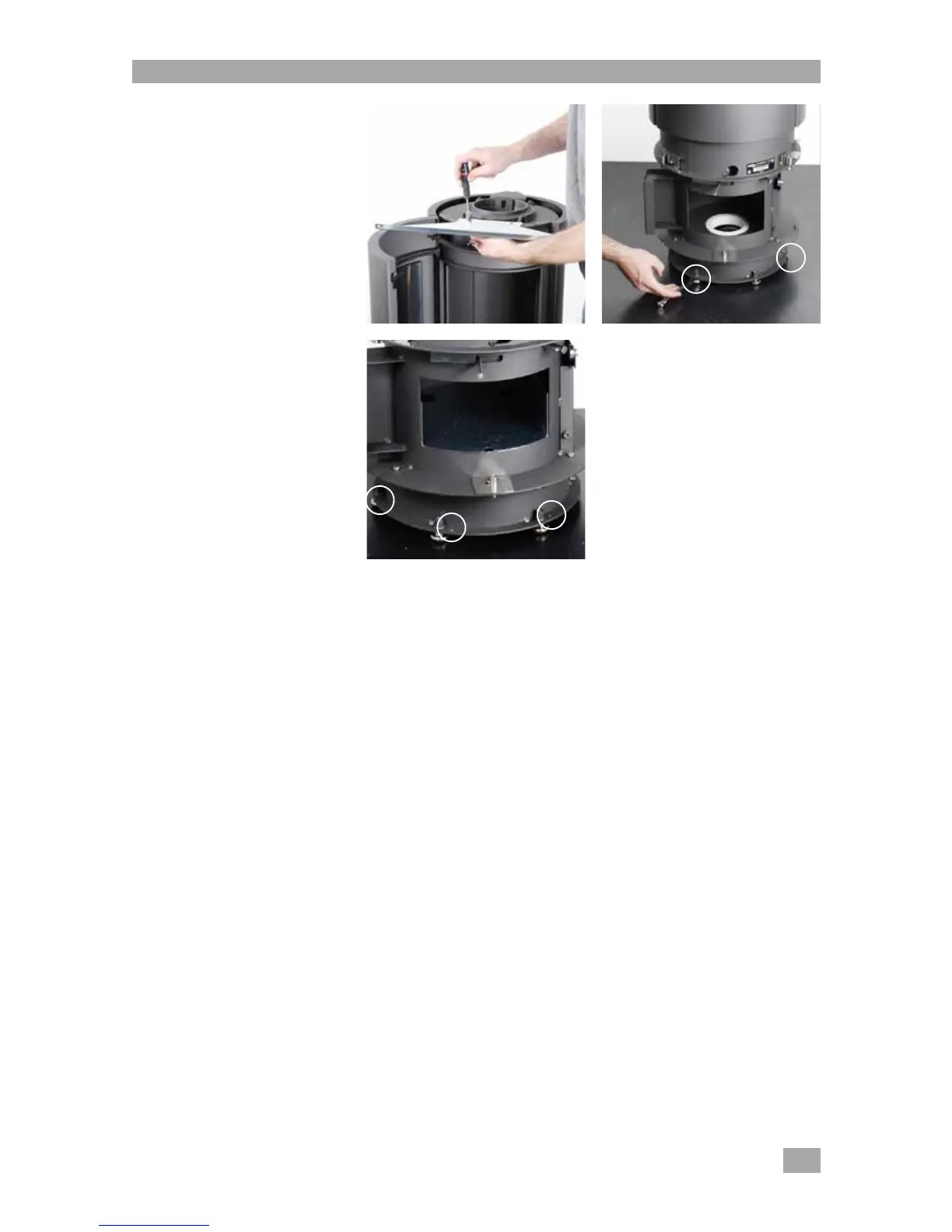

> Remove the hand-lift truck
protection for the final time [photo 1].
> Level the stove : adjust 3 of the 6
feet (1 of each 2) by turning them
clockwise (using a size 13 spanner)
[photo 2]. Leave the other 3 feet for
the moment.
Please note ! Ensure that the joint is
properly supported on the ground
to ensure air-tightness for outside air
intake.
> Adjust the last three feet.
Note ! The holes in the lower ring can
be used to fix the stove to the floor
[photo 3].
Levelling the stove
