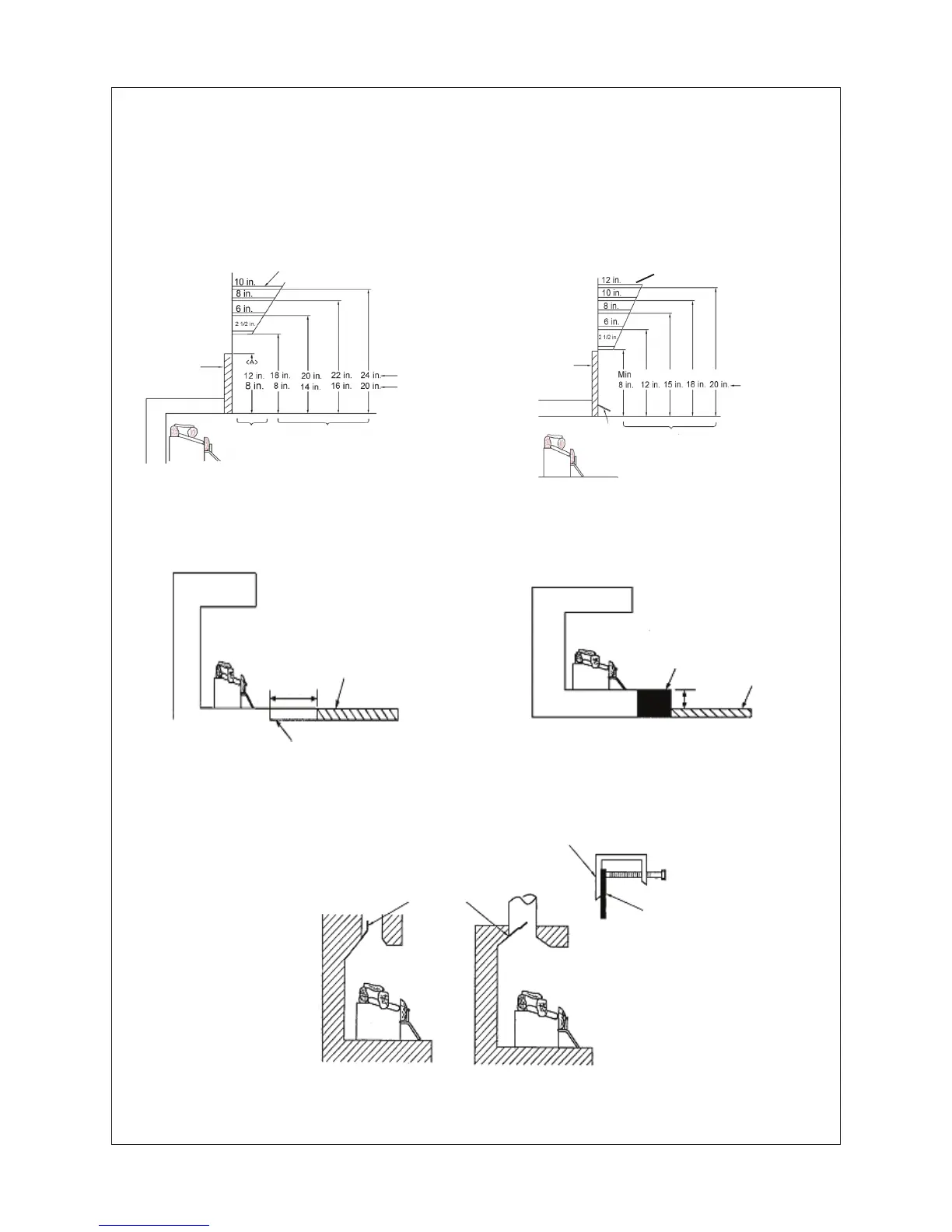

Figure 5 - Minimum mantel clearances
without using hood
Figure 6 - Minimum mantel clearances
when using hood
Figure 7- Minimum replace
clearances if installed at oor level
Combustible Material
14 in. Min
Noncombustible Material
Figure 8 - Minimum replace
clearances above combustible ooring
Combustible Material
5 in. Min
Hearth
Figure 9 - Attach Damper to Fireplace
24 in. Model
Log set
18 in. Model
Top of
Fireplace
Opening
Underside of
Mantel Shelf
All minimum
distances are
in inches
Mantel Shelf
Minimum Non-
Combustible
Material
Distances to
Underside of
Mantel
Minimum
Non-
Combustible
Material
Height
Log set
18 in., 24in.,
Models
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
Minimum Non-
Combustible
Material
Hood
Distances to
Underside of
Mantel
All minimum
distances are in
inches
Damper
Damper
Clamp
Damper
FLOOR CLEARANCES
a) If installing appliance on oor level, you must maintain the minimum distance of 14
inches to combustibles (see Figure 7).
b) If combustible materials are less than 14 inches to the replace, you must install
appliance at least 5 inches above the combustible ooring (see Figure 8).
