Model 315I (UC Ice Maker)
Theory of Operation
3-3
#3757320 - Revision B - August, 2005
Water System
The water system provides and recirculates the water
for ice production. It also provides a means of
drainage. After the ice is produced, the water system
flushes the impurities and minerals that were in the
water, down the drain. During routine cleaning, the
water system will circulate the ice machine cleaning
solution. (See Figure 3-2)
Electrical System
Power for the refrigeration system and the water sys-
tem is provided by the electrical system. The electrical
system also controls the operational cycles of the ice
maker. The electrical schematic in figure 3-3 below
illustrates the electrical system of a model 315I during
the ice making cycle.

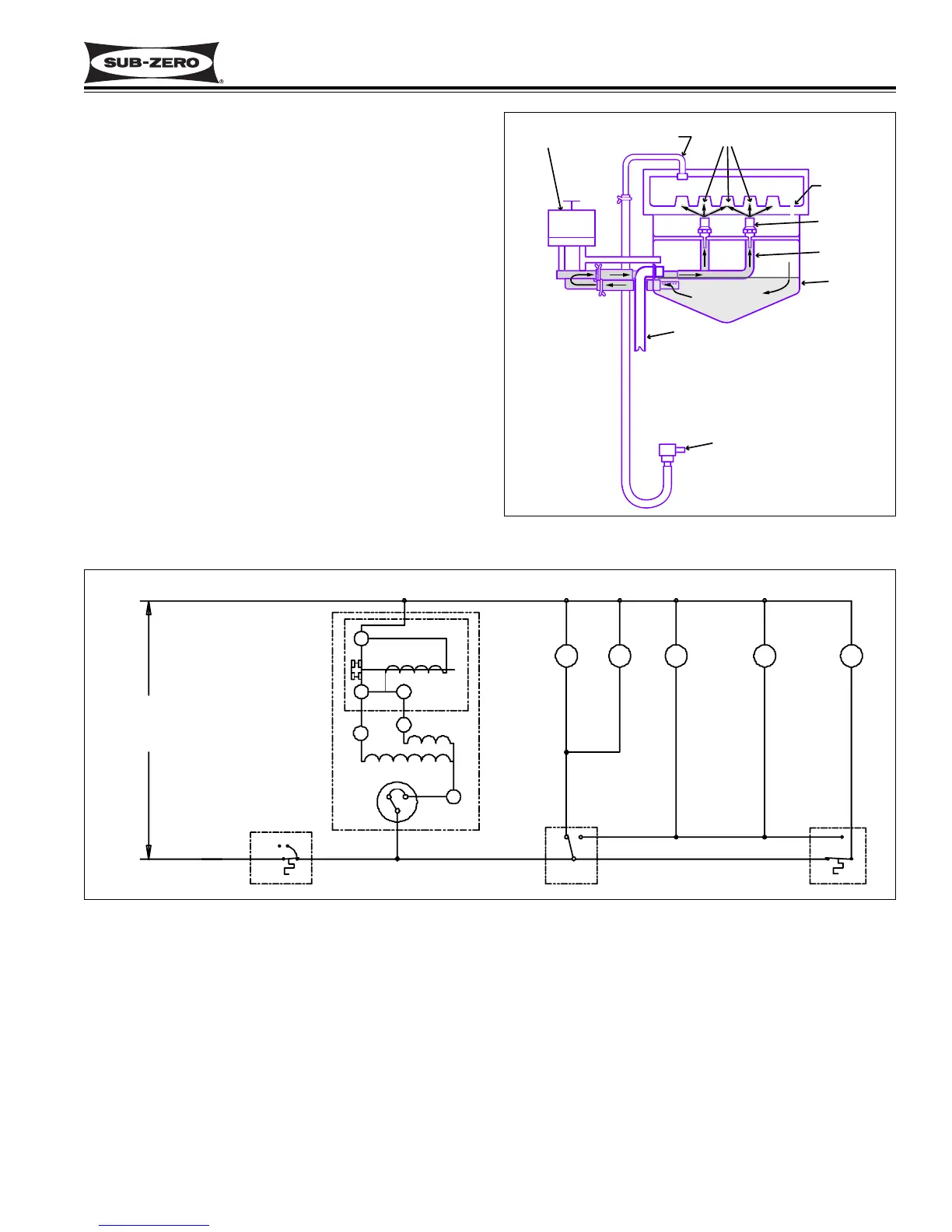

Figure 3-2. Water System (During Ice Making Cycle)
Figure 3-3. Electrical Schematic of Model 315I (During Ice Making Cycle)
