Sub-Zero 315I - Condensing Unit

Parts Lists
Model 315I (UC Ice Maker)
6-4
#3757320 - Revision B - August, 2005
1
7
4
9
8
5
6
2
10
3
11
12
13
14
17
15
16
17
1
18
19

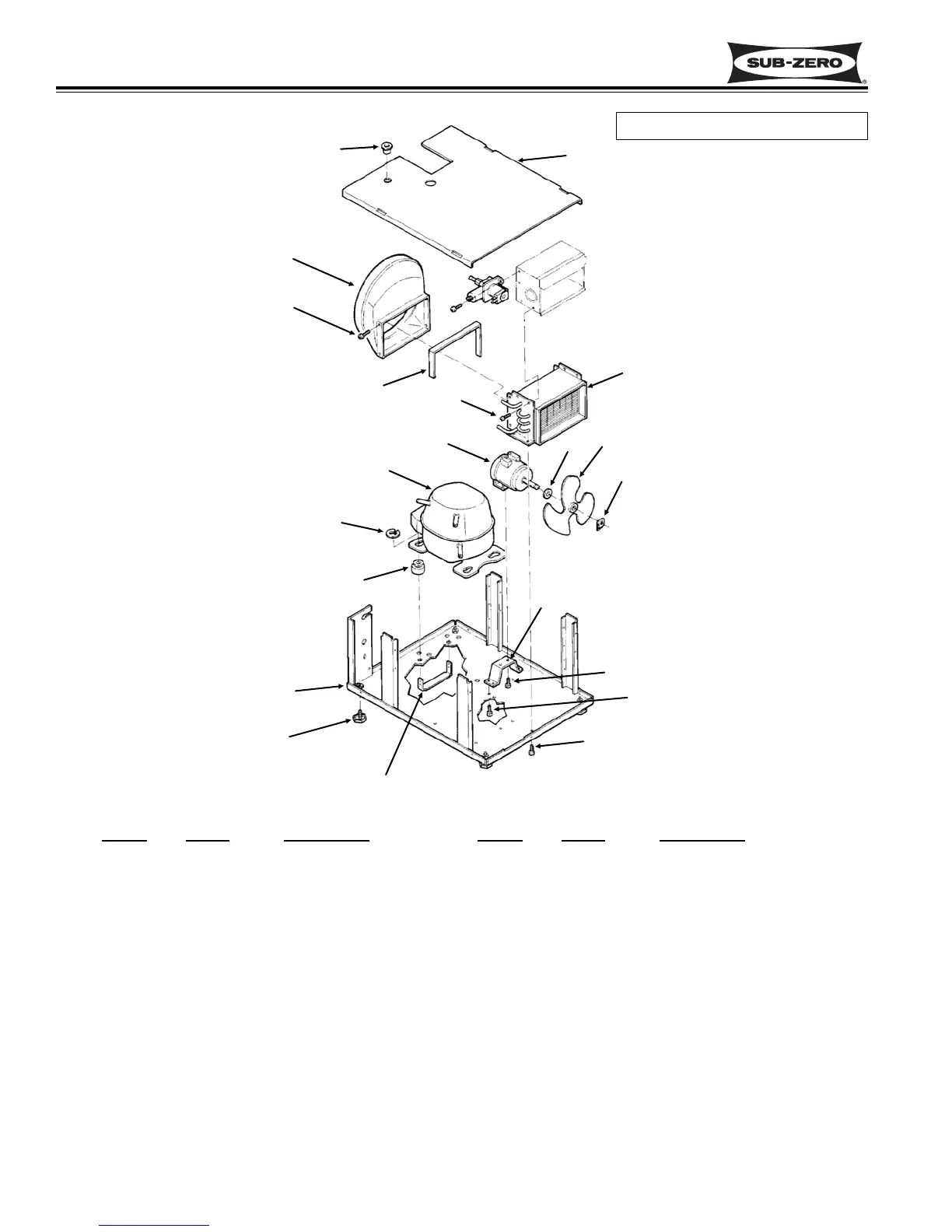

CONDENSING UNIT
Item # Part # Description
1 03140408 Screw (4)
2 18371001 Fan Blade
3 A28798001 Fan Motor Bracket
4 12239601 Fan Motor
5 02287101 Fan Shroud
6 18372901 Condenser
7 18470028 Grommet
8 03160801 Leg Leveler
9 02249701 Clip
10 A29015001 Bracket
Item # Part # Description
11 18875210 Spacer
12 18875211 Nut
13 18875212 Screw
14 12121310 Bushing
15 13060900 Gasket ( Req. 14-1/2")
16 18877621 Compressor, Complete
17 03153101 Screw (4)
18 A37732001 Top Base Plate
19 A28921001 Bottom Base Plate
