Model 315I (UC Ice Maker)
Component Access/Removal
5-7
#3757320 - Revision B - August, 2005
COMPONENTS IN BIN AREA
Bin Thermostat Bracket Removal
The bin thermostat bracket is a hollow cylindrical tube
which holds the bin thermostat control bulb. The brack-
et fits into holes, one each in the front wall and rear wall
of the bin.
To remove the bin thermostat bracket, push the bracket
back into the hole in the rear bin wall until the front of
the bracket clears the hole in the front wall. Then, lift
the front of the bracket up and pull it from the hole in
the rear wall. (See Figure 5-12)
Curtain and Curtain Stiffener Removal
The curtain and curtain stiffener are held to the reser-
voir with screws that pass through the front of the reser-
voir and stiffener, then into the bracket of the curtain.
To remove the curtain and stiffener, extract the curtain
mounting screws and pull the curtain and stiffener from
the reservoir. (See Figure 5-13)
Cube Chute Removal
The cube chute has two notches at its rear flange that
fit over the stems of the spray jet bases. The spray jet
bases are then tightened down to sandwich the rear
flange of the chute between the bottom flat surface of
the jet base and the reservoir wall.
To remove the cube chute, loosen both spray jet bases
and pull the cube chute forward. (See Figure 5-14)
Spray Jet Assembly Removal
A spray jet assembly consists of a cap/nozzle, spinner
and jet base. The nozzle screws onto the base, capti-
vating the spinner. The stem of the jet base passes
down through the a notch in the cube chute, a hole in
the reservoir and an O-ring, then is threaded into the
spray bar assembly tubing.
To remove the nozzle and access the spinner, unscrew
the nozzle counterclockwise off of the jet base.
To remove the jet base, or the spray jet assembly, use
a 5/8” wrench to unscrew the stem of the jet base from
the spray bar assembly tubing. (See Figure 5-14)

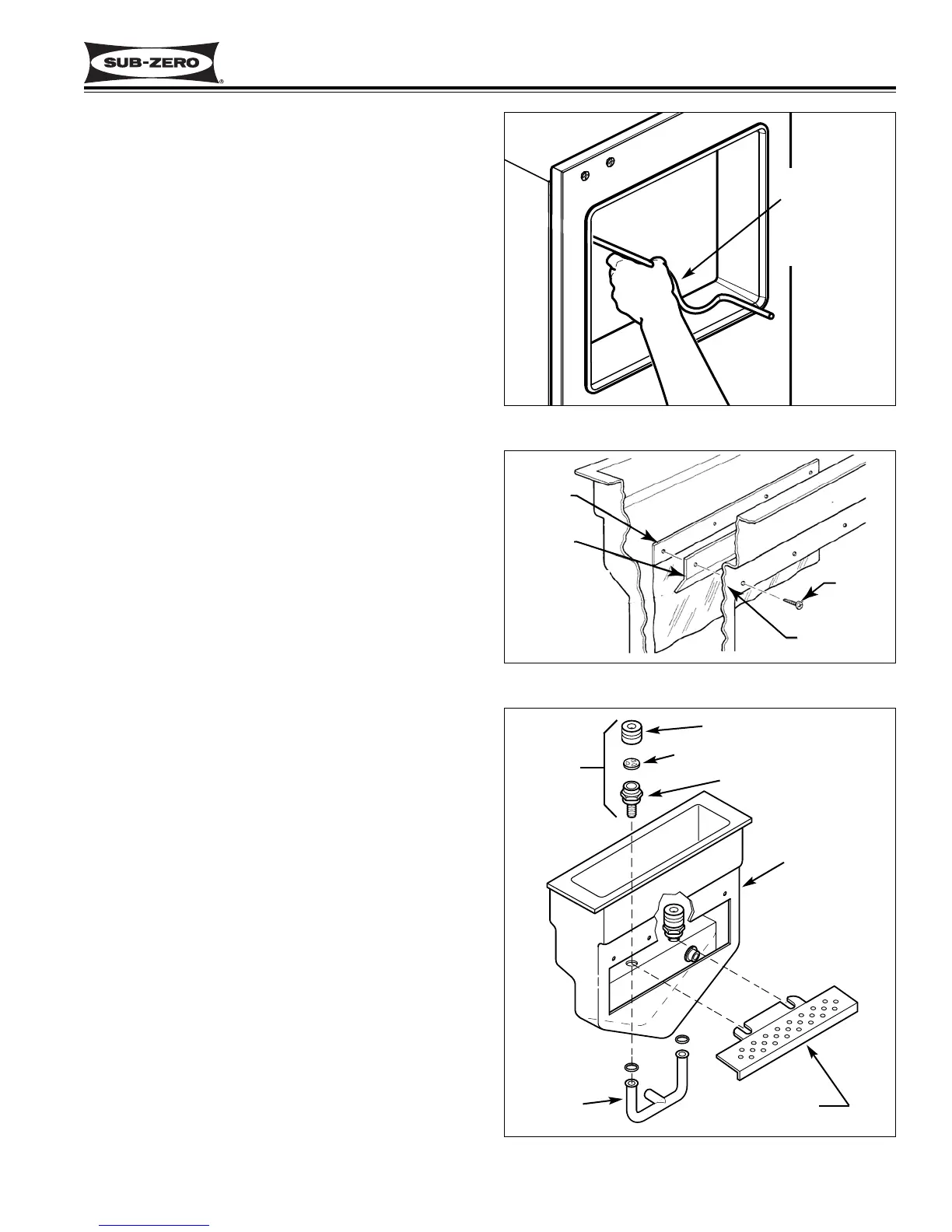

Figure 5-12. Bin Thermostat Bracket Removal
Push brack-
et back;
lift front up;
pull forward.
Figure 5-13. Curtain & Curtain Stiffener Removal
Curtain
Curtain
Stiffener
NOTE:
Bottom edge
must angle
to rear
Screw
Reservoir
front
Figure 5-14. Cube Chute & Spray Jet Assy Removal
Spinner
Spray Jet
Assembly
Reservoir
Cube Chute
Cap/Nozzle
Jet Base
Spray Bar
Assembly
