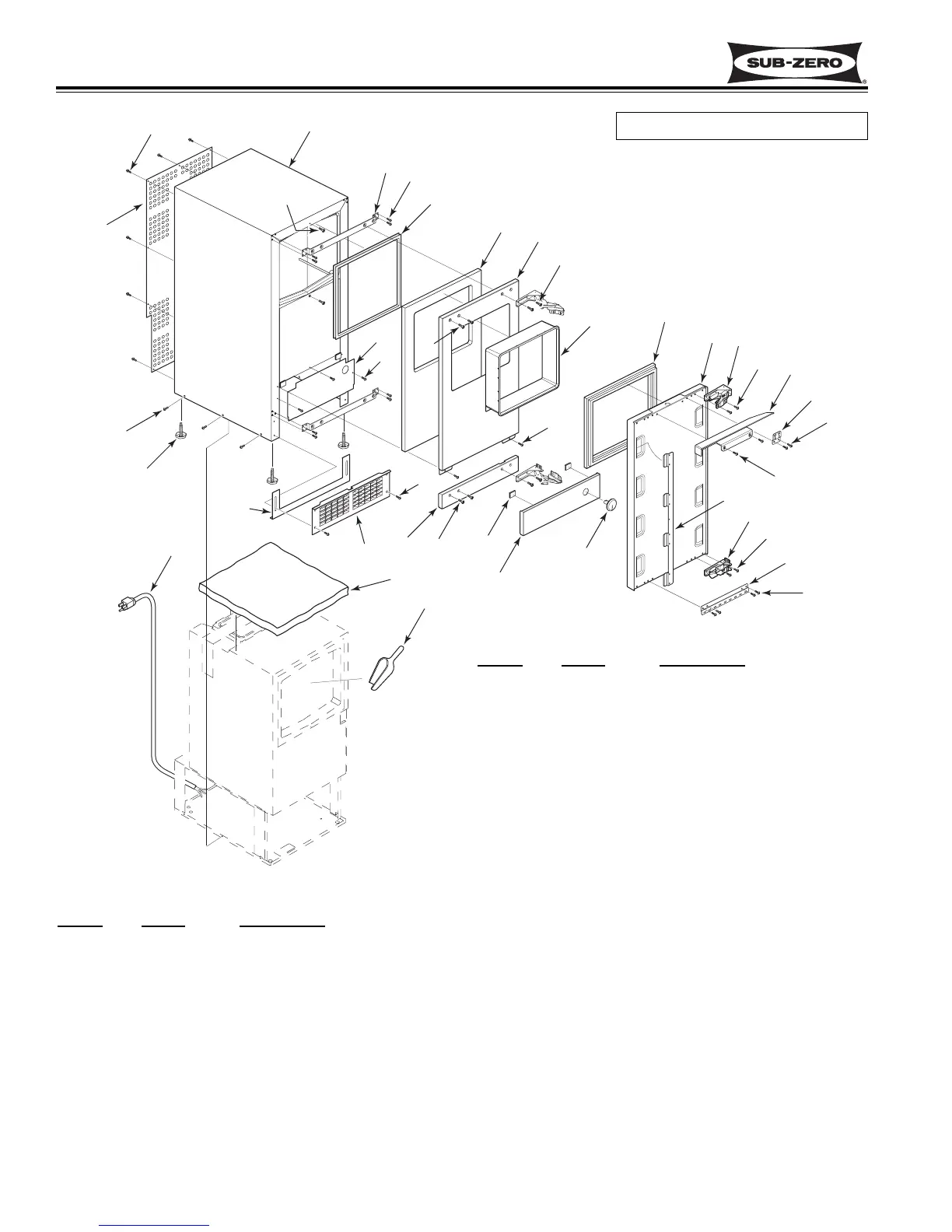

Sub-Zero 315I - Cabinet

Parts Lists
Model 315I (UC Ice Maker)
6-2
#3757320 - Revision B - August, 2005
1
29
30
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
15
12
16
17
18
19
20 (Includes 21)
21
22
23
24
25
26
27
31
32
33
34
35
36
28
22
Item # Part # Description
1 A28861023 Cabinet/Shell
2 02386701 Support, Hinge Mount
3 03381401 Screw, #8-32X3/8 Fill Hd (8)
4 13082801 Gasket, Decor Trim
5 13093501 Seal, Bin (EPS Sheet)
6 A37814001 Face Plate, Upper Cabinet
7 03381301 Screw, #10-24X5/8 Hd (4)
8 02385701 Trim Ring, Bin
9 13093601 Gasket, Door
10 A37886021 Door
11 02386601 Hinge, Top RH / Bottom LH
12 03381801 Screw, #10-24X1/2 (10)
Item #
Part # Description
13 02385901 Cover, Upper Hinge/Door, RH
02385902 Cover, Upper Hinge/Door, LH
14 A37854001 Bracket, Panel Mount Top
15 03163803 Screw, #8-32X3/8 (2)
16 A37822001 Bracket, Panel Mount
17 02386602 Hinge, Top LH / Bottom RH
18 A37855001 Bracket, Panel Mount Bottom
19 02385801 Knob, Bin Thermostat
20 A37819021 Control Panel Assy
21 03381701 Dual Lock Fastener (2)
22 03141807 Screw, #10-24X1/2 Flat Hd(4)
23 A37815001 Face Plate, Lower Cabinet
24 03381601 Screw, #8X1/2 Black (2)
25 02224302 Kickplate
26 03140407 Screw, #6 (3)
27 A37858001 Panel, Inner Control Access
28 03141908 Screw, A B Flat Hd (2)
02270101 Spacer (1)
29 03140408 Screw, Thread Forming (9)
30 A29102001 Rear Panel
31 03143100 Screw, #10 (6)
32 03160801 Leveler Leg (4)
33 12163807 Power Cord
34 A26787001 Insulation (in bag)
35 08066401 Scoop
36 02398801 Filler, Kickplate
CABINET
