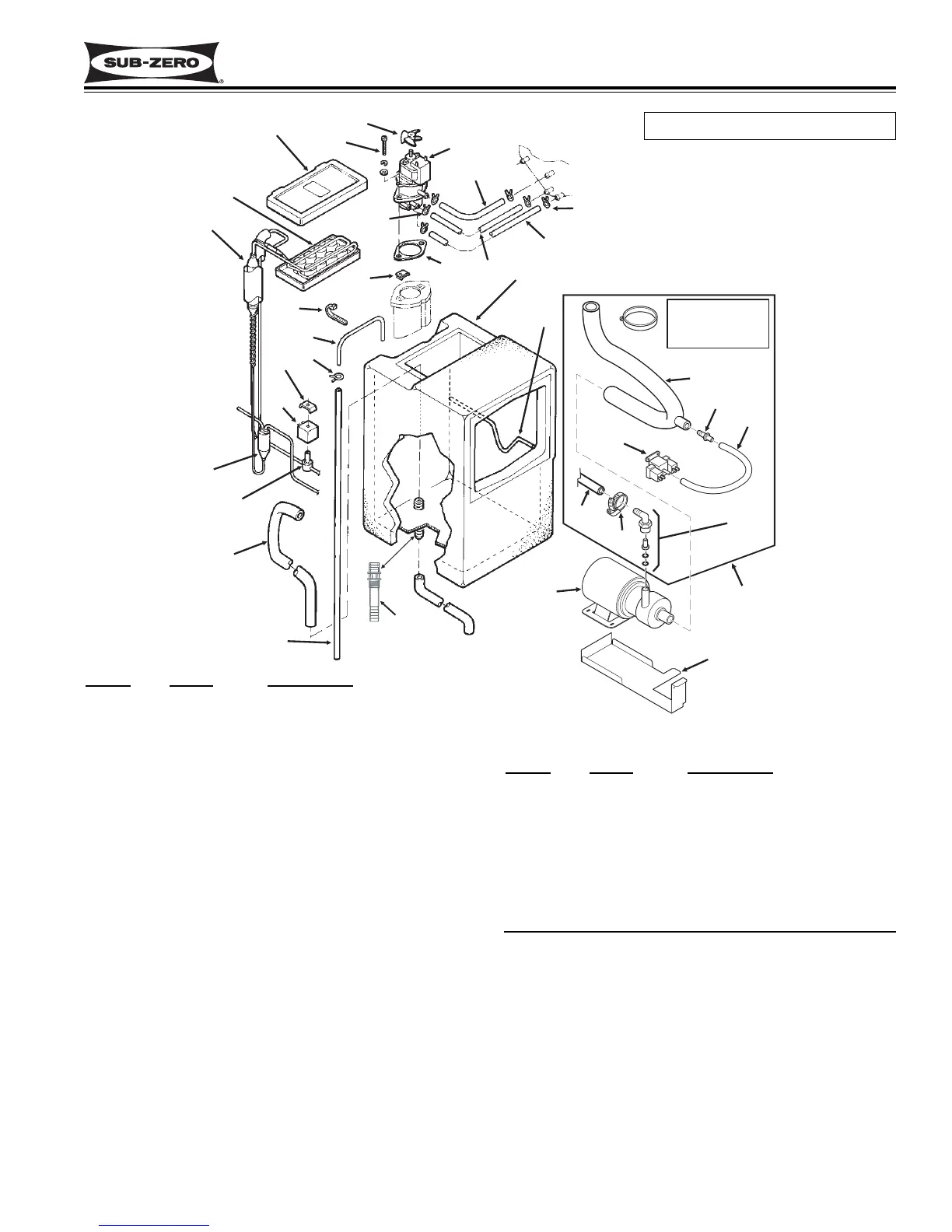

Sub-Zero 315I - Major Assemblies

Model 315I (UC Ice Maker)
Parts Lists
6-3
#3757320 - Revision B - August, 2005
14
4
5
10
8
15
16
12
7
9
11
6
13
1
17 (includes 3 & 6)
20
19
18
3
2
32
21
17a,17b,
17
c
36
22
23
24
28
25
26, 27
32
34
29,
30,
31
36
37
Not shown:
Pump Wire
Harness
38
33
35
MAJOR ASSEMBLIES
Item #
Part # Description
1 02227401 Platen Cover
2 13067401 Tube (Requires 37")
3 A34816001 Bin Thermostat Bracket
4 02348920 Evaporator (Does NOT
include accumulator & tubing)
5 A36699020 Evaporator Assy, Complete
6 13089901 Reservoir Drain hose
7 13067416 Tube, 5/8" (Requires 4-1/4”)
8 13067415 Tube, 1/2" ( Requires 3-1/2")
9 13067415 Tube 1/2" ( Requires 3-5/8")
10 02177502 Clamp (2)
11 02053401 Clamp (4)
12 02171900 Fan Blade
13 A30625001 Spray Pump
14 13068700 Gasket
15 03140414 Screw (2)
16 03142204 Speed Nut (2)
17 A36930020 Bin Assembly
17a 02332301 Drain fitting (foamed in bin)
17b 13061713 O-Ring
17c 03139405 Pal nut
18 12256903 Clip, Hot Gas Valve
19 12256902 Coil, Hot Gas Valve
20 12256901 Hot Gas Valve Body
21 02349001 Drier
Item #
Part # Description
22 A27028001 Tube Holder
23 A27027001 Copper Inlet
24 02172701 Clamp
25 A36892020 Drain Pump Kit, Complete
(To convert gravity drain
model to drain pump model.)
26 12250321 Drain Pump Only
Drain Pump Kit Service Parts
27 02353201 Impeller & housing kit
28 02336901 Inlet hose
29 02352201 Elbow
30 02337401 Check Valve
31 13061708 O-Ring
32 11050401 Pressure Switch
33 05059101 Hose, Pressure Sense
34 02340601 Barb Connector
35 02281411 Clamp, Plastic Hose
36 A36746001 Bracket, Pump
37 A37334001 Discharge hose
38 12258001 Wire Harness, Pump
