Sub-Zero CBBI-36R

Overlay Panels 1
5

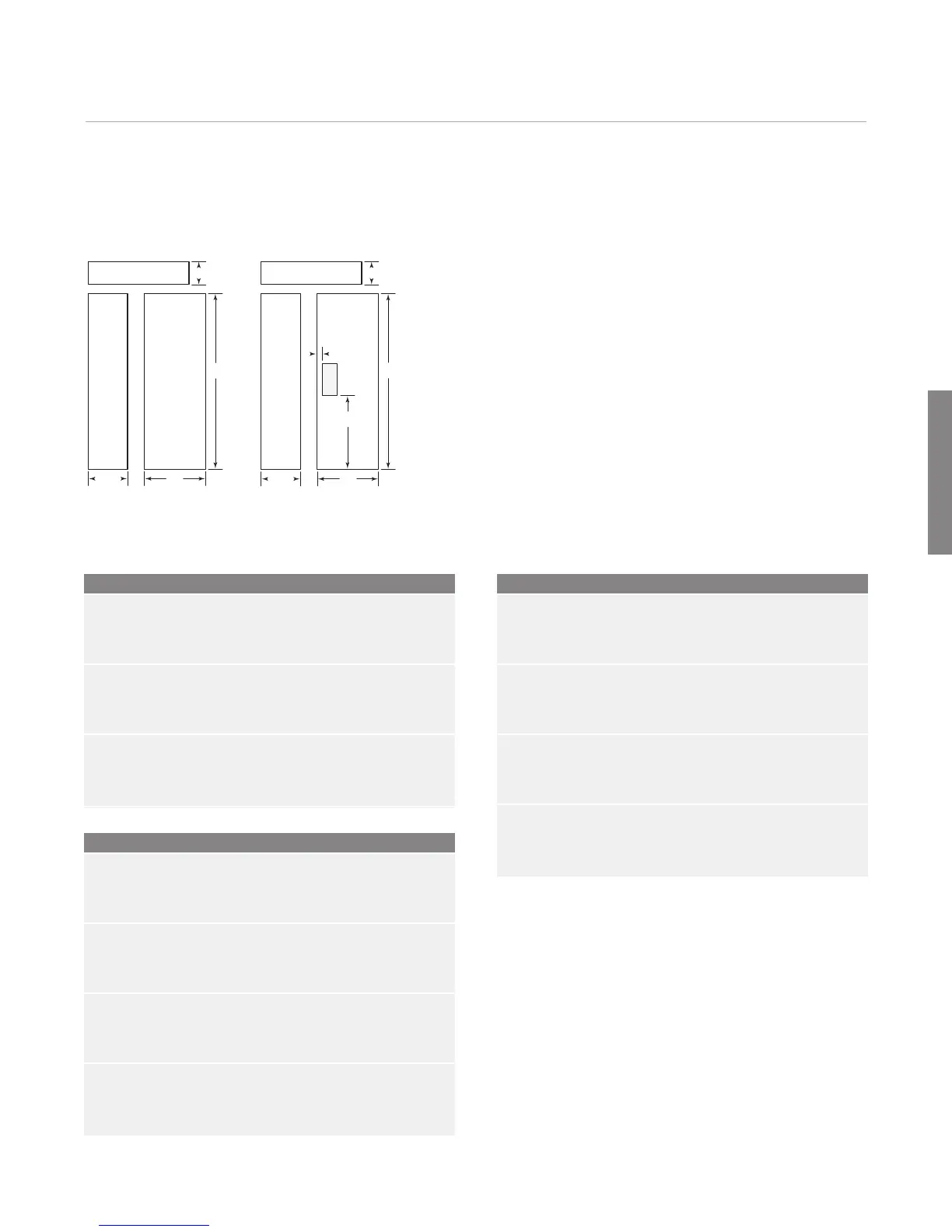

Overlay Panel Specifications
ICBBI-36S / ICBBI-42S
ICBBI-48S
ICBBI-42SD
ICBBI-48SD
WW
H
H H
WW
H
A
B
Grille panel dimensions listed are for a standard 2134 mm
overall height of the unit. For an 2108 mm overall height,
subtract 25 mm from grille panel height dimensions. For an
2235 mm overall height, add 102 mm to height dimensions.
Width dimensions do not vary.
Models ICBBI-48S and ICBBI-48SD
REFRIGERATOR WH
Overlay Panel 730 mm 1772 mm
Spacer Panel 708 mm 1751 mm
Backer Panel 724 mm 1767 mm
FREEZER WH
Overlay Panel 483 mm 1772 mm
Spacer Panel 460 mm 1751 mm
Backer Panel 476 mm 1767 mm
GRILLE WH
Overlay Panel 1219 mm 235 mm
Spacer Panel 1197 mm 211 mm
Backer Panel 1213 mm 227 mm
ICBBI-48SD WH
Dispenser Cut-Out 149 mm 316 mm
AB
Cut-Out Location 51 mm 732 mm
Models ICBBI-42S and ICBBI-42SD
REFRIGERATOR WH
Overlay Panel 637 mm 1772 mm
Spacer Panel 614 mm 1751 mm
Backer Panel 630 mm 1767 mm
FREEZER WH
Overlay Panel 424 mm 1772 mm
Spacer Panel 402 mm 1751 mm
Backer Panel 418 mm 1767 mm
GRILLE WH
Overlay Panel 1067 mm 235 mm
Spacer Panel 1045 mm 211 mm
Backer Panel 1060 mm 227 mm
ICBBI-42SD WH
Dispenser Cut-Out 149 mm 316 mm
AB
Cut-Out Location 51 mm 732 mm
Model ICBBI-36S
REFRIGERATOR WH
Overlay Panel 510 mm 1772 mm
Spacer Panel 487 mm 1751 mm
Backer Panel 503 mm 1767 mm
FREEZER WH
Overlay Panel 398 mm 1772 mm
Spacer Panel 376 mm 1751 mm
Backer Panel 392 mm 1767 mm
GRILLE WH
Overlay Panel 914 mm 235 mm
Spacer Panel 892 mm 211 mm
Backer Panel 908 mm 227 mm
